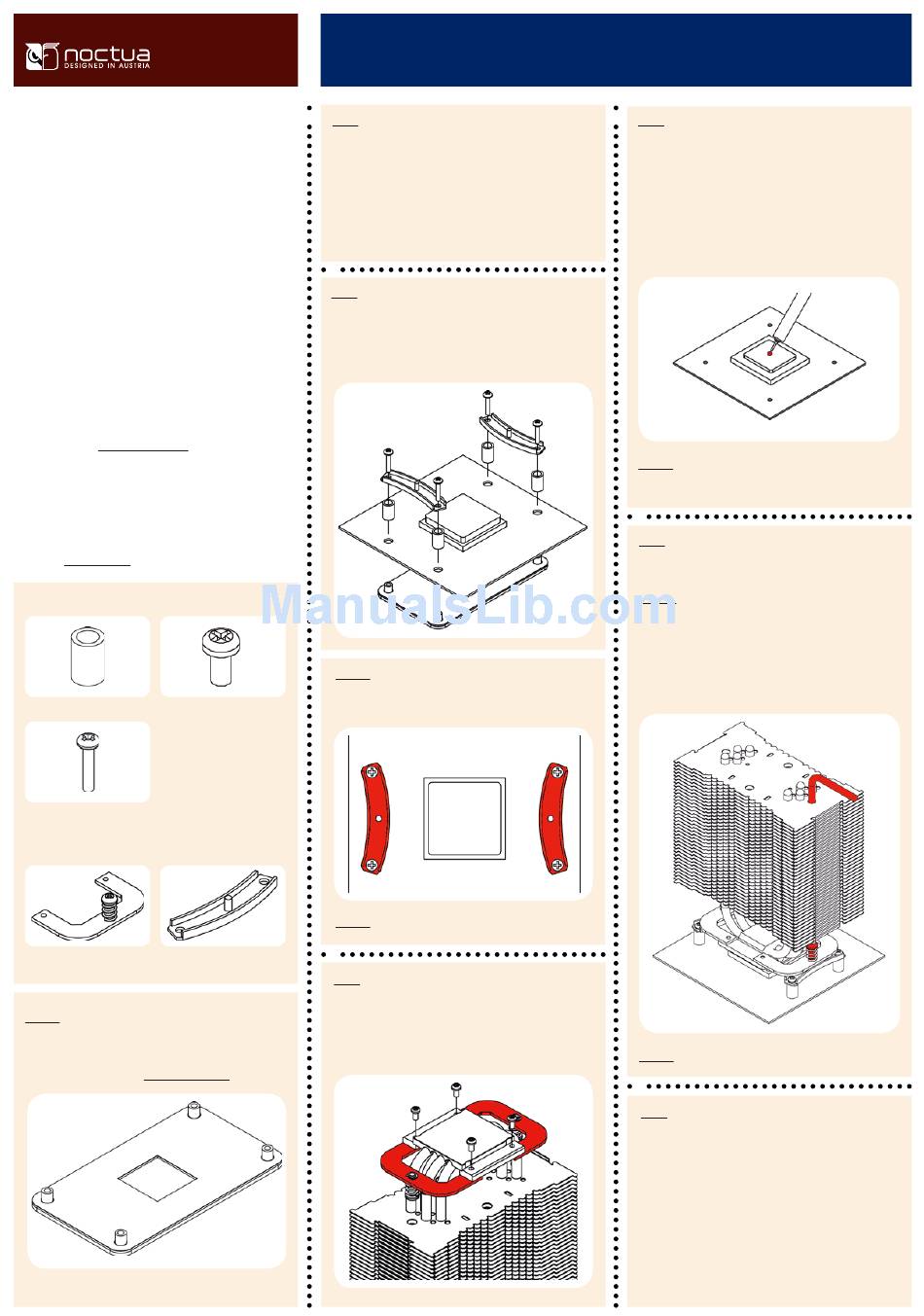

Noctua NM-A90 Kit
Installation Manual
Thank you very much for choosing a Noctua cooler for your
AMD system.
The NM-A90 mounting kit is compatible with NH-U12P SE2
and NH-U9B SE2 coolers and permits to install the coolers
turned by 90° on AM2/AM2+/AM3 motherboards.
This manual will guide you through the installation process
step by step using an NH-U12P SE2 heatsink as an exam-
ple. Please note that the installation procedure is identical
for all models.
Should you encounter any difficulties, please check the
FAQs on our website and don't hesitate to contact our
support team at support@noctua.at.
Noctua cannot be held responsible for any damage or losses
caused by compatibility issues.
Multilingual versions of this manual are available on our
website: www.noctua.at
Required mounting parts supplied with the cooler:
4x plastic spacers
4x short screws
4x long screws
Required mounting parts supplied with the NM-A90 kit:
2x 90° fastening brackets
2x 90° mounting bars
SecuFirm2
Caution: The
tm
mounting system requires a back-
plate, which is preinstalled on most AM2/AM2+/AM3 main-
boards. If your mainboard doesn't have a backplate, please
contact our support team at support@noctua.at.
AMD stock backplate
NM-A90 Kit | Installation Manual
Step 1:
Removing the retention module
If your mainboard uses a retention module for CPU cooler
SecuFirm2
installation, please remove it first. The
system will install directly to your mainboard's stock backplate
on the rear side of the socket.
Step 2:
Attaching the mounting bars
First put the plastic spacers onto the screw threads, then fix
the mounting bars using the 4 long screws.
Caution: Make sure that the curved sides of the mounting
bars are pointing inwards.
Caution: Tighten the screws until they stop.
Step 3:
Attaching the fastening brackets to the heatsink
Tightly screw the fastening brackets to the base of the heatsink
using the 4 short screws.
Step 4:
Applying thermal paste
If there are residual traces of thermal paste or thermal pads on
mounting
your CPU, please clean them off first.
tm
Then press a small drop (4-5mm diameter) of NT-H1 onto the
centre of the heat-spreader.
Caution: Applying too much thermal paste will lower the heat
conductivity and cooling performance!
Step 5:
Fastening the heatsink to the CPU
Caution: Please take off the protection cover at the bottom side
of the heatsink first!
Put the heatsink onto the CPU and screw it to the screw threads
of the mounting bars using the supplied L shaped mounting
tool.
Caution: Tighten the screws until they stop.
Step 6:
Installing the fan(s)
Install the fan(s) as described in the manual that came with
the cooler.
