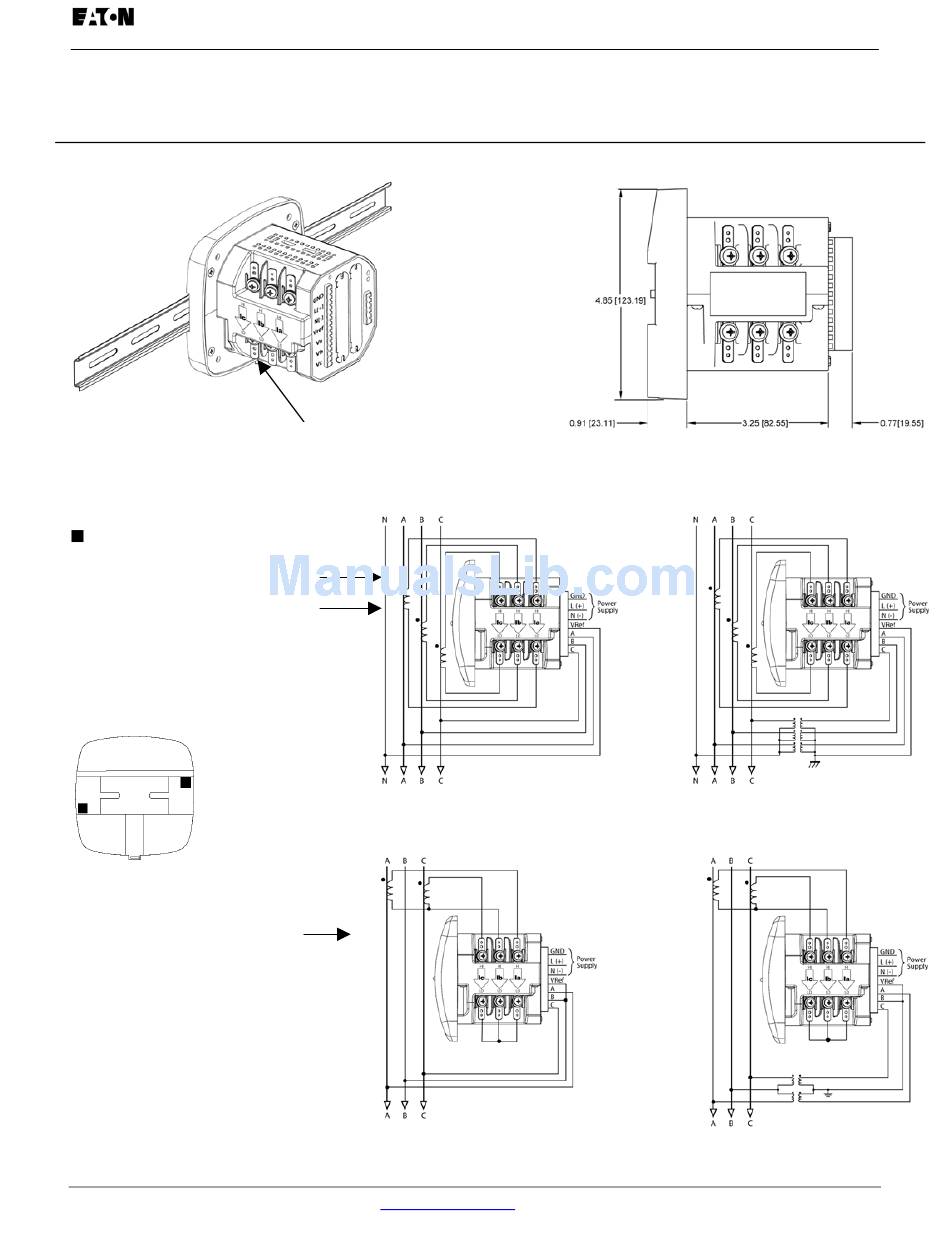

IQ 250/260 Transducer Quick Start Guide
Mechanical Installation
DIN Rail Installation
Installation Steps
Slide top of groove of
HIGH Side
meter onto DIN Rail.
Press gently until the
LOW Side
meter clicks into place.
If mounting with DIN
Rail provided, use Black
Rubber Stoppers (also
provided) shown below.
To remove meter, pull
down on Release Clip.
Electrical Wiring Diagrams
Select a diagram to meet your
application.
NOTE: Other wiring
configurations are available.
See the IQ 250/260 User and
Installation Manual, on the
enclosed CD.
Release Clip
WYE Direct 3 Phase, 4-wire
DELTA Direct 3 Phase, 3-wire
www.eaton.com
IQ 250/260 Transducer
IQ 250/250T Dimensions
WYE with PTs 3 Phase, 4-wire
DELTA with PTs 3 Phase, 3-wire
IB02601005E
Q-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eaton IQ 250
Summary of Contents for Eaton IQ 250
- Page 1 IQ 250/260 Transducer IQ 250/260 Transducer Quick Start Guide Mechanical Installation Release Clip DIN Rail Installation IQ 250/250T Dimensions Installation Steps Slide top of groove of HIGH Side meter onto DIN Rail. Press gently until the LOW Side meter clicks into place.
- Page 2 Response Delay (0-750 msec) Update Device When settings are complete, click the Update Device button to send a new profile to the IQ 250/260T. Click Exit or click other tabs to update additional screens. Use IQ 250/260 Configuration Software to communicate with the device and perform required tasks.
