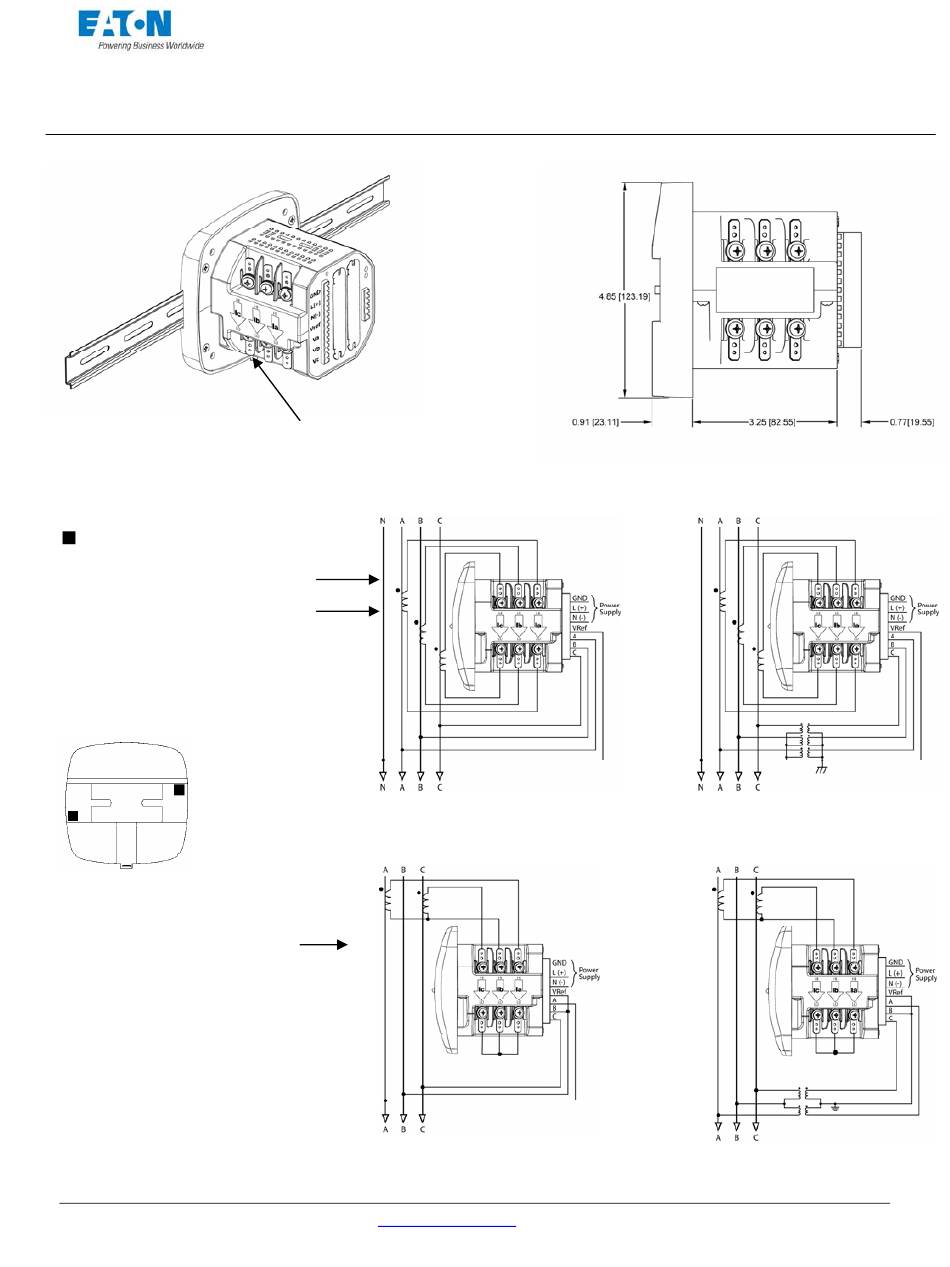

IQ 100 Series Transducer Quick Start Guide
Mechanical Installation
DIN Rail Installation
Installation Steps
Slide top of groove of
HIGH Side
meter onto DIN Rail.
Press gently until the
LOW Side
meter clicks into place.
If mounting with DIN
Rail provided, use Black
Rubber Stoppers (also
provided) shown below.
To remove meter, pull
down on Release Clip.
Electrical Wiring Diagrams
Select a diagram to meet your
application.
NOTE: Other wiring
configurations are available.
See the IQ 100 Series User
and Installation Manual, on
the enclosed CD.
Release Clip
WYE Direct 3 Phase, 4-wire
DELTA Direct 3 Phase, 3-wire
www.eaton.com
IQ 100 Series Transducer Dimensions
WYE with PTs 3 Phase, 4-wire
DELTA with PTs 3 Phase, 3-wire
IL02601010E V.1.01
Q-1
Advertisement
Table of Contents
Related Manuals for Eaton IQ 100 Series
Summary of Contents for Eaton IQ 100 Series
- Page 1 IQ 100 Series Transducer Quick Start Guide Mechanical Installation Release Clip DIN Rail Installation IQ 100 Series Transducer Dimensions Installation Steps Slide top of groove of HIGH Side meter onto DIN Rail. Press gently until the LOW Side meter clicks into place.
- Page 2 Click Exit or click other tabs to update additional screens. Use Eaton Meter Configuration Software to communicate with the device and perform required tasks. NOTE: For further details and additional programming screens, see the IQ 100 Series User Manual on the enclosed CD. www.eaton.com IL02601010E V.1.01...
