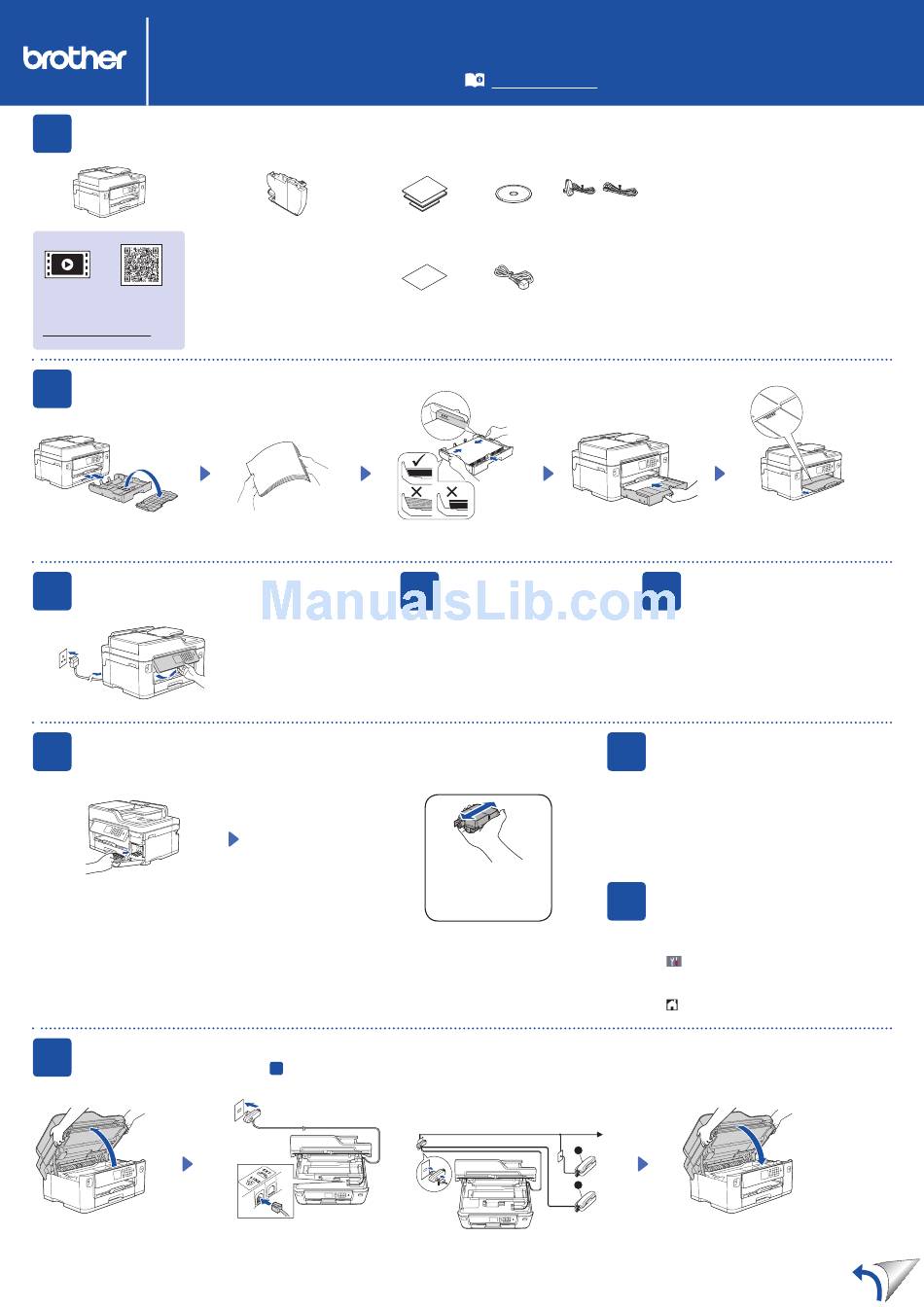

Brother MFC-J2330DW Quick Setup Manual

MFC-J2330DW / MFC-J5330DW / MFC-J5335DW
Quick Setup Guide
Read the Product Safety Guide first, then read this Quick Setup Guide
for the correct installation procedure.
1
Unpack the machine and check the components
The components included in the box may differ depending on your country.
Inbox Ink Cartridges*
• Black
• Yellow
• Cyan
• Magenta
*Ink cartridges contain approx.
65% yield of replacement High Yield
cartridges.
Watch our FAQ videos for help
uu Reference Guide: Supply Specifications
with setting up your Brother
machine.
solutions.brother.com/videos
2 Load plain A4 paper
For loading other sizes of paper, see Paper Handling in the Reference Guide.
Pull the paper tray completely out of
the machine as shown by the arrow.
Take off the tray top cover.
3

Connect the power cord

(Example for UK)
6
Install the inbox ink cartridges
Open the ink cartridge cover, and then
remove the orange protective part
from the machine.
NOTE
Follow the Touchscreen instructions to store
the orange protective part inside the machine.
If you must transport the machine, remove
the ink cartridges and replace this part.
9
Connect the telephone line cord
If you are not using your machine as a fax, go to
Lift the scanner cover.
Quick Setup Guide
Reference Guide
Product Safety Guide
Maintenance Sheet
Fan the paper well.
Connect the power cord. The machine will
power on automatically.
NOTE
You can adjust the control panel angle to read
the Touchscreen more easily.
Follow the Touchscreen
instructions to unpack and
install the ink cartridges.
The machine will prepare the
ink tube system for printing.
10 .
(Example for UK)
Connect the telephone line cord.
Use the socket marked LINE and guide
the cord out the back of the machine.
The latest manuals are available at the Brother Solutions Center:
solutions.brother.com/manuals
(for UK)
Brother Telephone Line Cord
Installation Disc
Power Cord
Do not exceed this
mark (bbb).
Put on the tray top cover, and then
Adjust the paper guides.
slowly push the paper tray completely
Load the paper in the tray. into the machine.
Select your country
4
or language
(Initial setup only)
After turning the machine on, you may need to set your
country or language (depending on your machine).
If required, follow the Touchscreen instructions.
Quickly shake just the black
ink cartridge horizontally
15 times as shown, before
inserting it into the machine.
NOTE
If you are sharing one telephone line with an external
telephone, connect it as shown below.
a. Extension telephone
b. External telephone
NOTE
• Most of the illustrations in this Quick Setup Guide show the
MFC-J5330DW.
• Save all packing materials and the box in case for any reason you
(for others)
must ship your machine.
• You must purchase the correct interface cable for the
interface you want to use. A USB cable is included with
some models.
USB cable
We recommend using a USB 2.0 cable (Type A/B) that is no more
than 5 metres long.
Ethernet (Network) cable
Use a straight-through Category5 (or greater) twisted-pair cable
for 10BASE-T or 100BASE-TX Fast Ethernet Network.
Pull out the paper support
until it locks into place.
5

Set the date and time

Follow the Touchscreen instructions to set the date
and time.
7

Machine settings

When the machine has finished the initial cleaning
process, follow the Touchscreen instructions to
configure the machine's settings.
• Check print quality
• Set Brother LCD Message defaults
• Print the installation sheet
Select your language
8
(if needed and only for
certain models)
1.
Press [Settings] > [All Settings] >
[Initial Setup] > [Local Language].
2.
Press your language.
3.
Press .
1
2
Close the scanner cover.
