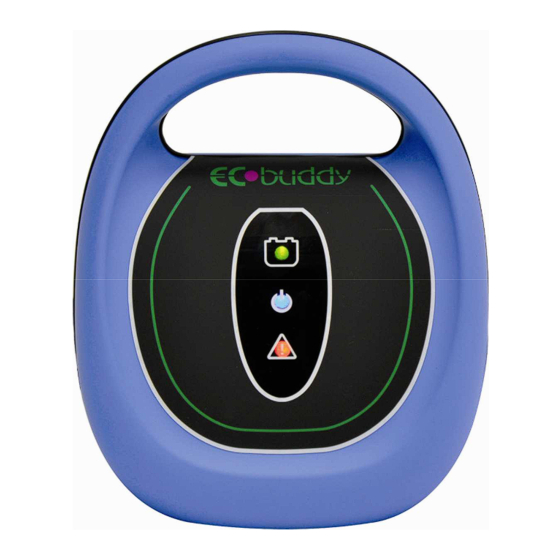

Swede Electronics EC Buddy User Manual

TECHNICAL SPECIFICATIONS
Type no: ECB-401
Rated current/voltage 4 A 24 V
24 V, 12 cells
Battery voltage/size
12 to 40 Ah* (C5)
Mains voltage 230 V~ 50 Hz
Max power consumption 200 VA
Mains current 0,9 A
(max effect)
Weight
Measurements
(H x W x D)
Casing class
Insulation class
Safety class
* EC-buddy is capable of charging batteries up to maximum battery size to 80% in less than 8 hours. The
charger can be used for both GEL- and AGM batteries.
EC-buddy features protection for:
- Reversed polarity
- Shortening of cables
- Sparks when connecting to power or battery
- Overheating
The battery charger should not be exposed to direct sun light
The battery charger may not, completely or partly be, lowered into water or covered with snow.
Cables and connectors may only be replaced by the manufacturer or an authorized service workshop.
CE-markings:
The manufacturer hereby assures that the ECB-1001 complies with the following standards:
EN 60601-1, EN 60601-1-2, EN 12184, ISO 7176-14
Manufacturer:
Swede Electronics i Nås AB
Hjärpholn 18
SE-780 53 NÅS, Sweden
Phone: +46 281 30400
Fax: +46 281 30666
www.swedeelec.se
info@swedeelec.se
ECB-601 ECB-801
6 A 24 V 8 A 24 V 10 A
24 V, 12 cells 24 V, 12 cells 24 V, 12 cells
18 to 60 Ah* (C5) 25 to 80 Ah* (C5) 32 to 100 Ah* (C5)
230 V~ 50 Hz 230 V~ 50 Hz 230 V~ 50 Hz
295 VA 290 VA
1,3 A 1,7 A
1,3 kg
205 x 179 x 90 mm incl. handle
IP44
II (double insulated)
Type B
ECB-1001
24 V
600 VA
2,6 A
User manual
for
EC-buddy
