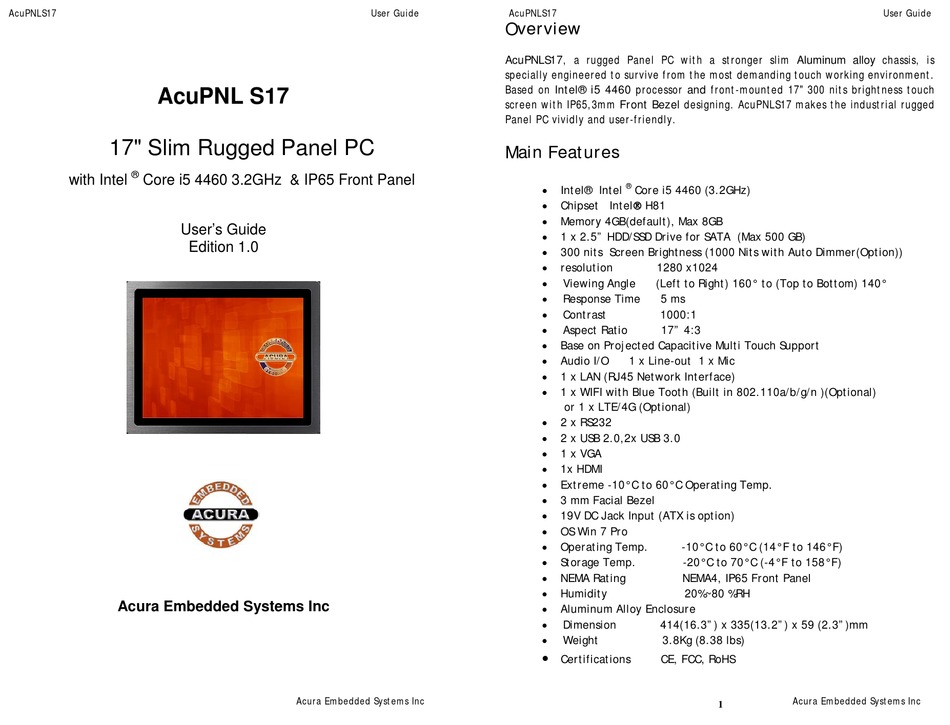

Acura Embedded Systems AcuPNL S17 User Manual

AcuPNLS17
AcuPNL S17
17" Slim Rugged Panel PC
®
with Intel Core i5 4460 3.2GHz & IP65 Front Panel
User's Guide
Acura Embedded Systems Inc
Edition 1.0
Acura Embedded Systems Inc
User Guide AcuPNLS17
Overview
AcuPNLS17, a rugged Panel PC with a stronger slim Aluminum alloy chassis, is
specially engineered to survive from the most demanding touch working environment.
Based on Intel® i5 4460 processor and front-mounted 17" 300 nits brightness touch
screen with IP65,3mm Front Bezel designing. AcuPNLS17 makes the industrial rugged
Panel PC vividly and user-friendly.
Main Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
®
Intel® Intel Core i5 4460 (3.2GHz)
Chipset Intel H81
Memory 4GB(default), Max 8GB
1 x 2.5" HDD/SSD Drive for SATA (Max 500 GB)
300 nits Screen Brightness (1000 Nits with Auto Dimmer(Option))
resolution 1280 x1024
Viewing Angle (Left to Right) 160° to (Top to Bottom) 140°
Response Time 5 ms
Contrast 1000:1
Aspect Ratio 17" 4:3
Base on Projected Capacitive Multi Touch Support
Audio I/O 1 x Line-out 1 x Mic
1 x LAN (RJ45 Network Interface)
1 x WIFI with Blue Tooth (Built in 802.110a/b/g/n )(Optional)
or 1 x LTE/4G (Optional)
2 x RS232
2 x USB 2.0,2x USB 3.0
1 x VGA
1x HDMI
Extreme -10°C to 60°C Operating Temp.
3 mm Facial Bezel
19V DC Jack Input (ATX is option)
OS Win 7 Pro
Operating Temp. -10°C to 60°C (14°F to 146°F)
Storage Temp. -20°C to 70°C (-4°F to 158°F)
NEMA Rating NEMA4, IP65 Front Panel
Humidity 20%~80 %RH
Aluminum Alloy Enclosure
Dimension 414(16.3") x 335(13.2") x 59 (2.3")mm
Weight 3.8Kg (8.38 lbs)
Certifications CE, FCC, RoHS
1
