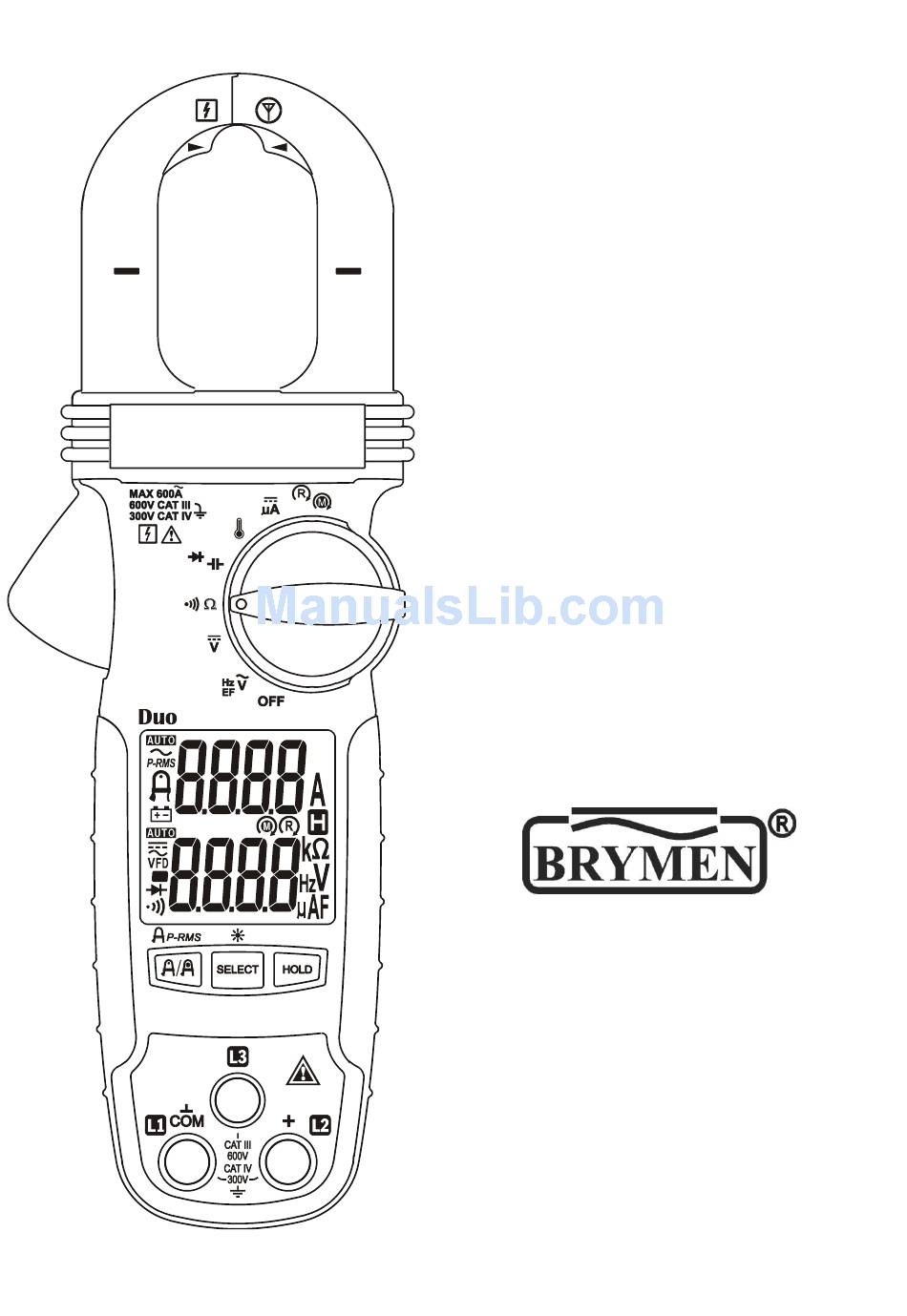

- Page 1 USER'S MANUAL BM173D BM175D BM176D AC Clamp-on Multimeter Series...
-
Page 2: Terms In This Manual
1) SAFETY This manual contains information and warnings that must be followed for operating the meter safely and maintaining the meter in a safe operating condition. If the meter is used in a manner not specified by the manufacturer, the protection provided by the meter may be impaired. -
Page 3: International Symbols
CAUTION Disconnect the meter from the test points before changing meter functions. INTERNATIONAL SYMBOLS Marking of Electrical and Electronic Equipment (EEE). Do not dispose of this product as unsorted municipal waste. Contact a qualified recycler Caution! Refer to the explanation in this Manual Caution! Possibility of electric shock Earth (Ground) Meter protected throughout by Double Insulation or Reinforced insulation... -
Page 4: Product Description
3) PRODUCT DESCRIPTION This user's manual uses only representative model(s) for illustrations. Please refer specification details for function availability to each model. 1) Antenna area for Non-Contact EF- Detection 2) Jaw center indicator, at where best current accuracy is specified 3) Rotary Selector to turn the power ON/OFF and Select a function 4) 3-5/6 digits 6000 counts Dual numeric... -
Page 5: Operation
4) OPERATION Introduction To realize swift simultaneous dual measurements, the meter uses two Analog-to- Digital Converters (Duo) for its Clamp-on ACA functions (Upper-display readings) as well as its Rotary-switch functions (Lower-display readings) separately. Clamp-on ACA functions turn ON whenever the Rotary-switch function is turned ON. Regular &... - Page 6 Note: ACV and Hz functions are equipped with digital low-pass filter, and are capable of dealing with VFD (Variable Frequency Drives) signals for fundamental readings. It also improves ACV and Hz reading stability being in most noisy electrical environments. EF-Detection function with EF-H & EF-L Sensitivities The detected Electric Field strength is indicated as a series of bar-graph segments on the display together with variable beep tones.
- Page 7 ●Non-Contact EF-Detection (NCV): An antenna is located along the top-right end of the stationary clamp jaw, which detects electric field surrounding energized conductors. It is ideal for tracing live wiring connections, locating wiring breakages and to distinguish between live and earth connections. ●Probe-Contact EF-Detection: For more precise indication of live wires, such as distinguishing between Live and Ground connections, use direct contact testing with one single test-probe via an input terminal.
- Page 8 DCV function Inputs are made via the test lead terminals COM/+. WARNING: Before and after hazardous voltage measurements, test the voltage function on a known source such as line voltage to determine proper meter functioning.
- Page 9 Resistance & Continuity functions Inputs are made via the test lead terminals COM/+. Defaults at Resistance. Press SELECT button momentarily to toggle between the subject functions. Continuity function is convenient for checking wiring connections and operation of switches. The meter provides Audible as well as Visible results. A continuous beep and , indicates a complete wire.
- Page 10 Capacitance & Diode functions Inputs are made via the test lead terminals COM/+. Defaults at Capacitance. Press SELECT button momentarily to toggle between the subject functions. (For Model 173D, Capacitance and Diode functions are located in different rotary switch positions.) Note When using Diode test function, normal forward voltage drop (forward biased) for a good silicon diode is between 0.400V to 0.900V.
- Page 11 disconnected from the circuit to obtain an accurate measurement reading. 2. When using Capacitance function, discharge capacitor(s) before making any measurements. Large value capacitors should be discharged through an appropriate resistance load Temperature function (Models 176D & 175D only) Inputs are made via the test lead terminals COM/+. Press SELECT button momentarily to toggle between C (Celsius) and F (Fahrenheit).
- Page 12 DCA Current function (Models 176D & 175D only) Inputs are made via the test lead terminals COM/+. Application Notes on Flame Sensors: The DCA function is designed especially for HVAC/R flame sensor applications. The 0.1A resolution is useful for identifying the minute current changes in flame detector applications.
- Page 13 & 3-Phase Rotation function (Model 176D only) Inputs are made via the test lead terminals L1/L2/L3. Phase Rotation directions are indicated as symbolic movements by the LCD segments. Defaults at . Press SELECT button momentarily toggles between modes. Hi-sensitivity mode, which detects relatively low signal outputs generated from motor spinning, for checking phase connections of Motors.
- Page 14 Using the Hi-sensitivity mode for Motors: Connect to the Motor as illustrated. Be sure the electricity supply is removed. From the perspective of looking down the shaft of the motor, speed-spin it clockwise to generate sufficient signal strength for proper meter detection. If the meter indicates a clockwise movement, the motor leads connected to L1, L2 and L3 of the meter are L1, L2 and L3 (also known as R, S and T) respectively.
-
Page 15: Maintenance Warning
The Auto-Power-off (APO) mode turns the meter off automatically to extend battery life after approximately 32 minutes of no specified activities, where applicable: 1) Rotary switch or push button operations 2) Significant measuring readings of above 8.5% of ranges 3) Non-OL readings for Resistance, Continuity or Diode function 4) Non-zero readings for Hz function 5) Significant movement indication as in Phase Rotation functions In other words, the meter will intelligently avoid entering the APO mode when it is in... - Page 16 Accuracy and Calibration Accuracy is specified for a period of one year after calibration. Periodic calibration at intervals of one year is recommended to maintain meter accuracy. Refer to the LIMITED WARRANTY section for obtaining calibration, repairing or warranty service. Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent;...
- Page 17 GENERAL SPECIFICATIONS Display: 3-5/6 digits 6000 counts; dual display Polarity: Automatic Update Rate: 5 per second nominal Operating Temperature: 0C to 40C Relative Humidity: Maximum relative humidity 80% for temperature up to 31C decreasing linearly to 50% relative humidity at 40C Pollution degree: 2 Storage Temperature: -20C to 60C, <...
- Page 18 Accessories: Test lead set, User's manual, Soft carrying pouch, Bkp60 banana plug K-type thermocouple (Models 175D & 176D only), Alligator Clip set (Model 176D only) Optional Purchase Accessories: BKB32 banana plug to type-K socket plug adaptor (Models 175D & 176D only) Special Features: AmpTip low-current range;...
- Page 19 Audible Continuity Tester Audible Threshold: Between 10 and 250 Response time: 32ms approx. Capacitance RANGE Accuracy 2.0% + 4d 200.0F, 2500F Accuracies with film capacitor or better Diode Tester RANGE Accuracy 3.000V 1.5% + 5d Test Current: 0.3mA typical Open Circuit Voltage: < 3.5VDC typical DCA (Models 175D &...
- Page 20 AmpTip lamp-on ACA RANGE Accuracy 1) 2) 3) 4) 50Hz ~ 60Hz 60.00A 1.5% + 5d Induced error from adjacent current-carrying conductor: <0.06A/A Induced error from ACV measurement < 0.60A /kV @50/60Hz Add 10d to the specified accuracy @ < 6A Induced non-zero residual while beeper turns on: <...
- Page 21 Non-Contact EF-Detection Bar-Graph Indication EF-H (High Sensitivity) EF-L (Low Sensitivity) Typical Voltage (Tolerance) 10V ( 5V ~ 25V) 40V (32V ~ 70V) 25V (20V ~ 66V) 110V (55V ~ 165V) - - - 55V (50V ~ 125V) 220V (130V ~ 265V) - - - - 110V (90V ~200V) 400V (250V ~ 500V)
- Page 22 - NOTE -...
- Page 23 - NOTE -...
-
Page 24: Limited Warranty
BRYMEN's warranty does not apply to accessories, fuses, fusible resistors, spark gaps, varistors, batteries or any product which, in BRYMEN's opinion, has been misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling.
