- Page 1 USER'S MANUAL BM131 BM132 BM135 LoggerClamp Series...
-
Page 2: Overvoltage Category
1) SAFETY This manual contains information and warnings that must be followed for operating the instrument safely and maintaining the instrument in a safe operating condition. If the instrument is used in a manner not specified by the manufacturer, the protection provided by the instrument may be impaired. -
Page 3: International Electrical Symbols
WARNING To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The meter is intended only for indoor use. To avoid electrical shock hazard, observe the proper safety precautions when working with voltages above 60 VDC or 30 VAC rms. -
Page 4: Product Description

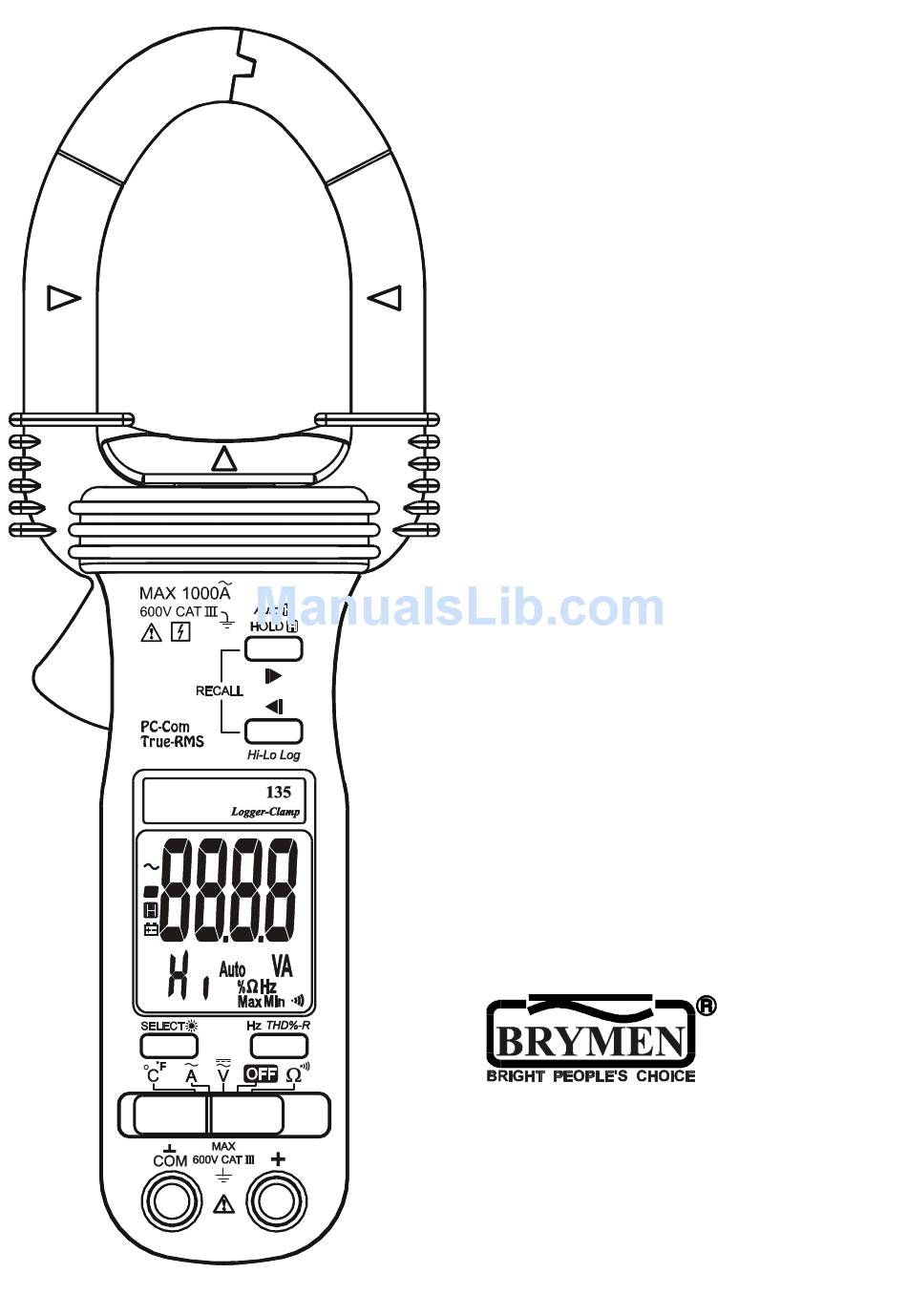

3) PRODUCT DESCRIPTION This user's manual uses only representative model(s) for illustrations. Please refer specification details for function availability to each model. 1) Transformer Clamp Jaws for AC current magnetic field pick up 2) Jaw marking lines for ACA position error indication 3) Hand/Finger Barrier to indicate the limits of safe access to the jaws during... -
Page 5: Operation
4) OPERATION ACV & DCV functions Set the slide-switch function-selector to the position. Default at last selected function. Press SELECT button to toggle between ACV and DCV measurement functions. There is no LCD annunciator for DC. LCD annunciator “ ” turns on to indicate AC is selected. Line-level Frequency function When voltage or current function is selected, press Hz button momentarily toggles to Line-level Frequency function. - Page 6 When voltage or current function is selected, press and hold THD%-R button for one second or more toggles to Total Harmonic Distortion - RMS measurement function. The LCD annunciator “%” turns on. Note: Specified accuracy at ACA fundamental > 5A; ACV fundamental > 50V. The meter displays “---.- %”...
- Page 7 Temperature function Set the slide-switch function-selector to the F position. Default at last selected function. Press SELECT button to toggle between C and F measurement functions. Be sure to insert the banana plug type-K temperature bead probe Bkp60 at correct polarities.
- Page 8 Press and hold the “Hi-Lo Log” button for one second or more to start “ ” a new Hi-Lo Logging session. All previously logged data is erased! Annunciators “Max Min” flashes and real-time measurement readings are being displayed. Press SELECT button momentarily toggles to display logged data item number (number of one-minute time intervals).
- Page 9 To recall, switch on the meter, then press the forward “ ” and backward “ ” arrow buttons at the same time to recall “ ” the logged data. The meter displays in turn the absolute maximum item number, absolute maximum reading, absolute minimum item number, and then absolute minimum reading (of the whole logging period).
- Page 10 Lo-reading “ ” (the lowest reading) of that one-minute item interval. Press-and-hold the button can quickly scroll the logged items. The meter gives short beeps when the last (or the first) item is reached. Note: When the meter memory is full or the meter battery is low, the meter will stop (end) the Hi-Lo logging session and go back to the normal measuring mode.
-
Page 11: Maintenance Warning
Display Backlight (model 132 & 135 only) Press the SELECT button for 1 second or more to toggle the display backlight on and off. Auto Power Off (APO) The meter turns off after approximately 16 minutes of neither switch nor button activity. To wake up the meter from APO, slide the function-selector to other positions and back on again. - Page 12 Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents. If the meter is not to be used for periods of longer than 60 days, remove the batteries and store them separately Battery replacement The meter uses standard 1.5V AAA Size (NEDA 24A or IEC LR03) battery X 2 Loosen the 2 captive screws from the battery cover case.
- Page 13 Relative Humidity : Maximum relative humidity 80% for temperature up to 31 decreasing linearly to 50% relative humidity at 40 Altitude : Operating below 2000m Storage Temperature : -20 C to 60 C, < 80% R.H. (with battery removed) Temperature Coefficient : nominal 0.15 x (specified accuracy)/ C @(0 C -18 C or 28...
- Page 14 True RMS Models 132 & 135 ACV & ACA clamp-on accuracies are specified from 5% to 100% of range or otherwise specified. Maximum Crest Factor are as specified below, and with frequency spectrums, besides fundamentals, fall within the meter specified AC bandwidth for non-sinusoidal waveforms.
- Page 15 Audible Continuity Tester Audible threshold: between 10Ω and 300Ω. Response time: 250µs Frequency Range Accuracy 5.00Hz ~ 500.0Hz 0.5%+4d Sensitivity (Sine RMS) 40A range: > 4A 400A range: > 40A 1000A range: > 400A 600V range: > 30V Temperature RANGE Accuracy C ~ 300 2.0% + 3...
- Page 16 jaws opening)
-
Page 17: Limited Warranty
BRYMEN's warranty does not apply to accessories, fuses, fusible resistors, spark gaps, batteries or any product which, in BRYMEN's opinion, has been misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling.
