Maxview MXR0010/KIT Assembly Instructions

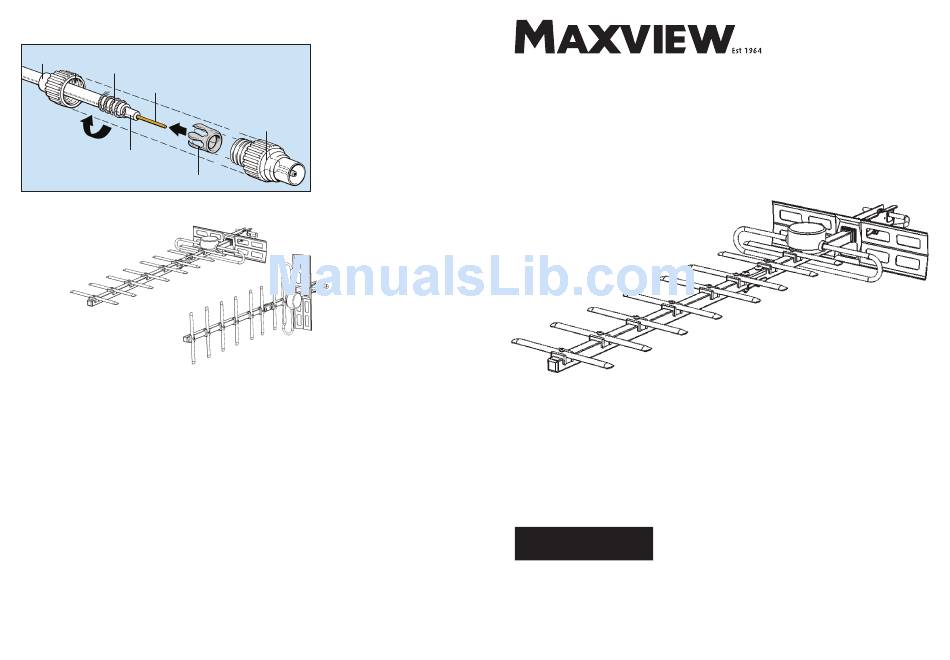

Fitting Coaxial Plug
Outer insulator
Screw cap Braid
Inner
Inner insulator
Claw
Polarisation
Tip: Look at outdoor aerials
in your area to see which
direction to point your
aerial for best reception.
Horizontal mounting
recommended for
Main TV transmitters.
Aligning your aerial
Turn on your TV set. Refer to manufacturers instructions to tune your TV into the available digital/HD/3D
channels. Select a tuned-in channel. Next, carry out the following procedures:
1. Turn your aerial to the LEFT until you lose the picture (if alone turn the volume up and turn until you hear a
reduction in sound quality).
2. Remember this position and turn your aerial to the RIGHT until you lose the picture/sound again.
3. Now point the aerial in the centre of these two points and you will receive optimum reception.
Digital & HD reception:
Reception of digital terrestrial TV (DTT) signals is subject to:
1. Use with a DTT set top box or integrated TV with digital tuner/receiver
2. Satisfactory signal quality from DTT transmitter
To receive terrestrial HD channels you will require the following:
1. An HD ready TV 2. Freeview HD receiver or TV with integrated Freeview HD tuner/receiver
3. HD signals must be transmitted in your local area. Visit www.freeview.co.uk for more information.
Safety warnings:
> Before starting installation check structure is sound and check for hidden electrical wiring or plumbing.
> When working on installations outside, beware of overhead power lines.
> Observe safe working practices, tread carefully and ensure adequate lighting is available in loft/roof space.
> Always follow manufacturer's operating and safety instructions before using tools and/or equipment.
> Ladder safety - always read and follow the manufacturer's instruction label affixed to the ladder.
> Ensure cable is correctly routed before fixing into position, taking care not to over tighten cable clips.
> This product may contain small parts - keep out of reach of children.
> After installation make regular maintenance checks.
> If in doubt consult a qualified or professional aerial installer.
1) Cut cable to required length.
2) Unscrew coaxial plug and
slide screw cap over cable.
3) Strip away approximately
23mm of outer insulation.
4) Gather strands of shielding
braid together and wind back
around the outer insulation.
Plug
Remove foil shield.
5) Strip away about half of the
inner insulation around inner
core. Check that none of the
shielding braid is touching
the inner core.
6) Open claw, slide over
screening braid and pinch to
tighten.
7) Re-assemble connector and
cut off inner core wire flush
with plug.
Vertical mounting
recommended for
Relay TV transmitters.
Assembly instructions
Model:
MXR0010/KIT TV Aerial - 10 Element Kit
Contact:
Helpline: +44 (0)1553 811000
Email: support@maxview.co.uk
Web: www.maxview.co.uk
Maxview reserve the right to change specifications without prior notice
9111316 Iss 2
Note image for reference only
bracket different to the one
included in this kit
