Please note - You will require Coaxial Cable to complete the assembly
MXR0012
Assembly instructions
Contact:
Helpline:
+44 (0)1553 811000
Email:
support@maxview.co.uk
Web:
www.maxview.co.uk
Maxview reserve the right to change specifications without prior notice
9111301 Iss 2

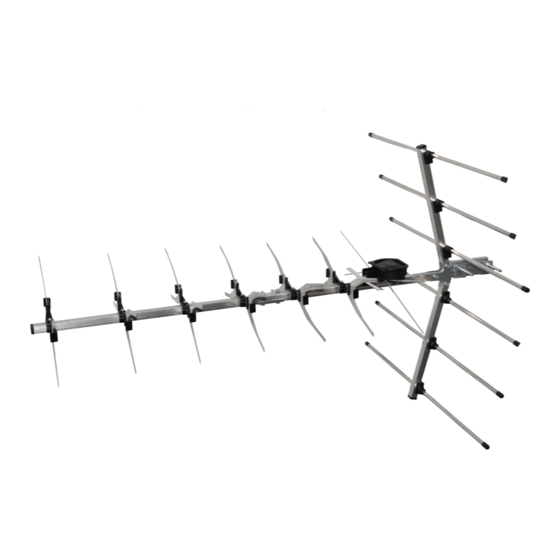

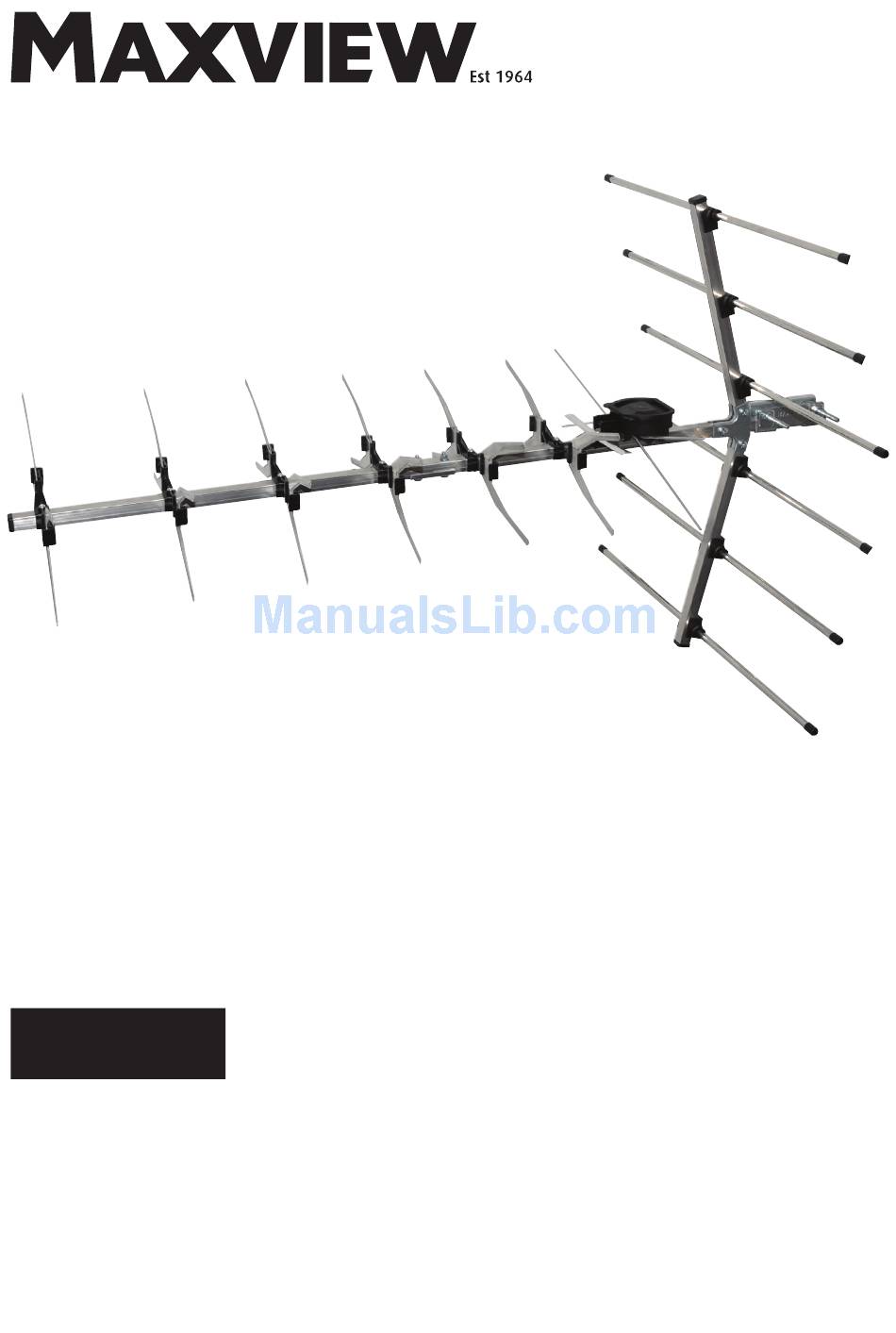

High Gain TV Aerial - 30 Element
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Maxview MXR0012
Summary of Contents for Maxview MXR0012
- Page 1 Please note - You will require Coaxial Cable to complete the assembly MXR0012 High Gain TV Aerial - 30 Element Assembly instructions Contact: Helpline: +44 (0)1553 811000 Email: support@maxview.co.uk Web: www.maxview.co.uk Maxview reserve the right to change specifications without prior notice 9111301 Iss 2...
-
Page 2: Safety Precautions
Kit contents check list A. Reflector Boom x2 H. Reflector Bracket x2 N. Reflector Bung x 12 B. Front Boom x 1 I. Element Clip x 6 O. Screw x 14 C. Rear Boom x 1 J. Joining Plate x 2 P. - Page 3 Aerial Assembly Instructions Join the 2 pieces of Boom together using the Joining Snap all Foil ‘V’ Elements into 6 Element Clips using Plate and Screws. your thumb. Screw the 6 sets of Foil ‘V’ Elements to the Boom. Screw the Element to the Boom. 6 x foil ‘V’...
- Page 4 Screw the Dipole to the Boom. Prise open clip using a screwdriver or by hand. Firmly insert Rod into Clip cavity and close. Use the template on the back of the box as a guide to centre the Clips onto the Rod. Simply slide Clip along Rod to adjust.
- Page 5 Place the Bungs on the Rods and Boom. Connecting Coaxial Cable (Not supplied) 12mm 18mm 28mm Using a sharp knife prepare the Coaxial Cable** as Loosen the screws on the two terminals. Thread shown. Coaxial Cable through Dipole. Ensure outer braid does not touch inner core.
-
Page 6: Mast Clamp Assembly
(not supplied) using the supplied Fixing Bracket. Typical Aerial Mounting Application Examples Wall, loft and chimney fixing kits are available from Maxview You should mount your aerial as high as possible on either a chimney, on an external wall, or in the loft. Remember that in general, TV pictures improve with height and the less obstructions between the aerial and the transmitter the better. - Page 7 TV transmitter. The now amplified signal should then give you more chance of receiving a clearer, stronger and more stable picture. Visit our website www.maxview.co.uk for our full range of digtial signal boosters.
