BASELIGHT 420X

USER MANUAL

PAGE 1

Table of Contents

Summary of Contents for Prime Design Baselight 420X

Page 1 BASELIGHT 420X USER MANUAL PAGE 1...
Page 2 Read this carefully before operation for your safety! Thank you for choosing Baselight! We hope that this product will help boost your productivity. Don't hesitate to contact your preferred supplier or Prime Design Sweden if you have any questions! Prime Design Sweden AB Sales: sales@prime-design.se...
Page 3: Table Of Contents

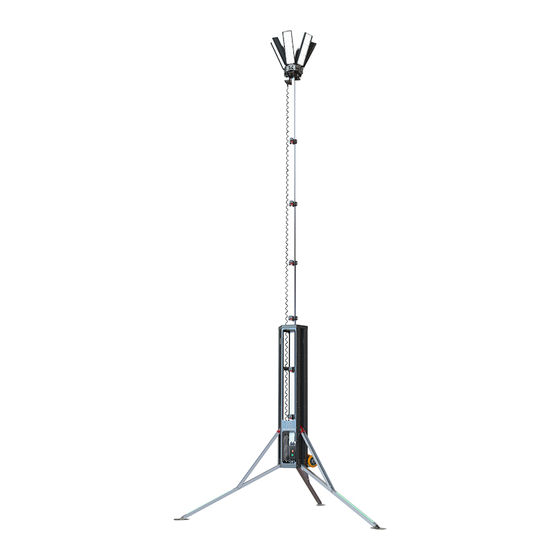

Read this carefully before operation to avoid personal injury or void warranty. Baselight 420X is a mobile lighting equipment intended for temporary illumination where high lumen output in combination with low weight and minimal power consumption is required. Baselight is designed to protect the operator as much as possible and all important safety func- tions are in red color.
Page 4: Operation Overview
OPERATION OVERVIEW Extend all three legs Engage locking lever in up Raise box until it stands to the ground. position on all three legs (Se up. Self locking chapter ”Leg operation”) Adjust leg angels if necessary so that Press red lever inside Chose armature configura- Baselight stands straight and level chassi to eject armature...
Page 5: Component Diagram
COMPONENT DIAGRAM Armature Armature platform Armature junction box Mast lock x6 Spiral cable Mast Chassi Mains junction box Dimmer Power switch Power extension outlet Power cord Power supply x 2 Wheels Wheels assembly Leg lock Support leg Main leg Surface shoe Handle x2 PAGE 5...
Page 6: Leg Operation
LEG OPERATION Baselight have three support legs that can be individually adjusted to compensate for uneven terrain. The goal for the operator is to ensure that Baselight chassi always stand straight (level) BEFORE rising the mast. The leg adjustment mechanism contains three parts: 1 Locking slot 2 Locking clamp 3 Locking lever...
Page 7: Mast Operation
MAST OPERATION CATION! Baselight contains a self locking telescopic mast. To avoid personal injury or damage to Baselight these procedures must be followed! Before extending the mast the armature must be ejected from the casing and the preferred light configuration selected (360 or 180, for example). Ejection of armature is done by pressing the red lever placed under armature on the chassi wall.
Page 8: Armature Configuration
ARMATURE CONFIGURATION 360 Degree configurations This type of configuration provides light in all direction (360 degree). When used in a tilted mode make sure that the friction lock engages. The operator folds out the panels until they reach a stopping position with a distinct click sound (Friction lock engaged). This position ensures that wind cannot alter the angle.
Page 9: Using The Ballast Accessory
BALLAST ACCESSORY The ballast accessory is used to stabilize Baselight in heavy wind. This eliminates the need of support lines in winds over 20 m/s. With this accessory properly applied the wind resistance is >30 m/s. Attach the ballast sheet as show in the picture. It can then be filled with gravel, sand or wa- ter.
Page 10: Maintenance & Technical Data
MAINTENANCE Baselight is designed for minimal maintenance and use in remote locations. It is a key feature of the product to require little or no maintenance. The recommended maintenance is as follows: Before every usage the operator must: Every year: Check electrical wires for damage.
Page 11 PAGE 11...
