Bounty Hunter PINPOINTER Owner's Manual page 2

Operation
1.
Install Battery (see Figure A)
2.
Click On by rotating the knob clockwise.
3.
Battery Check
The PinPointer will buzz immediately,
indicating that the batteries are in good
condition.
If the buzzer does not sound after switching
on, replace the single 9-volt battery.
4.
Set the Sensitivity
A. Starting with the knob in a position where
the buzzer is making sound, rotate knob
clockwise to the point where the device
is just silent. (Figure B)
B. You want to position the knob in the
most counterclockwise position at
which the buzzer is still silent. This
threshold setting provides maximum
sensitivity. (Figure C)
5.
During use, periodically re-set the knob
for maximum sensitivity.

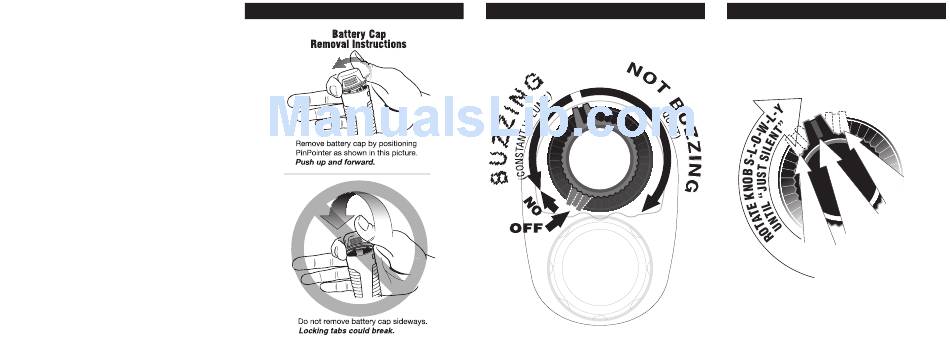

Figure A Figure B Figure C
TOO FAR INTO
SILENT-ZONE
"JUST
SILENT"
BUZZING
