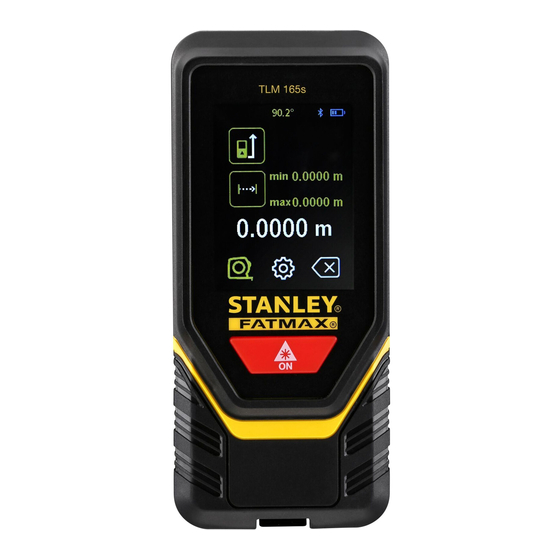

  • Page 1 TLM165s User Manual www.StanleyTools.com Please read these instructions before operating the product. DOC100270398...
  • Page 2 Figures DW0165 4.5V DC...
  • Page 3 ≤ 45° ≤ 45°...
  • Page 4: User Safety

    4.5V DC FCC ID: 2ANWF-TLM165 4.5V DC IC: 23237-TLM165 The TLM165s tool emits a visible laser beam, as shown in Figure . The laser beam emitted is Laser Class 2 per IEC 60825-1 and complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.
  • Page 5: Battery Safety

    Battery Safety By default, distances are measured from the bottom of the tool to a wall or object (Figure WARNING: Batteries can explode or leak and To measure distances from the top or middle of the cause serious injury or fire. To reduce the risk: tool, or from the tool's endpiece (when it is flipped ALWAYS follow all instructions and warnings on open to measure from a corner), click...
  • Page 6: Measuring Area

    Measuring Area Measuring Volume You can measure the area of a wall, floor, or object. You can measure the volume of a room or object. Point the tool's laser (Figure ) toward a wall or Point the tool's laser (Figure ) toward a wall or object, and not toward anyone's eyes.
  • Page 7 Measuring the Height of a Tall Object Click to measure the distance. If you need to measure the height of a tall object (e.g., From the same point, aim the laser at the lowest a tall building), you can calculate the height based on point of the building or object (Figure #3).
  • Page 8: Changing The Unit Of Measure

    View the difference between the two measurements at the bottom of the display window (Figure Use the TLM165s to measure each wall in the room or space captured in the floor plan, and sync the Changing the Unit of Measure measurements to the floor plan.
  • Page 9: Warranty

    In addition to the warranty, STANLEY Lasers are covered by: 30-Day Money Back Guarantee. If you are not completely satisfied with the performance of your STANLEY Laser for any reason, you can return it within 30 days from the date of purchase with a receipt for a full refund.
  • Page 10: Specifications

    Specifications Range 6in to 165ft (.15m to 50m) Measuring Accuracy* ± 1/16in (± 1.5mm)* Resolution** 1/16in (1mm)** Laser Class Class 2 (IEC/EN60825-1: 2007/2014) Laser Type ≤ 1.0mW @ 620-690nm Laser/Backlight Automatic Switch-off After 30s Unit Automatic Switch-off After 90s Continuous Measuring Area Volume Pythagoras 2-Point...
  • Page 11 Caution—use of controls or adjustments or performance —Reorient or relocate the receiving antenna. of procedures other than those specified herein may —Increase the separation between the equipment and result in hazardous radiation exposure. receiver. —Connect the equipment into an outlet on a circuit Caution: different from that to which the receiver is connected.
  • Page 12 Notes:...
  • Page 13 © 2017 Stanley Tools 701 E. Joppa Road Towson, Maryland 21286 U.S. & Canada Only Made in China 021472 December 2017...
