Icom IC-F3002 Instructions page 2

BASIC OPERATION
D Turning ON the transceiver
NOTE: Before using the transceiver for the first time, the
battery pack must be fully charged for optimum life and
operation. See the BATTERY CHARGING section of this
sheet.
Rotate [VOL] to turn ON the transceiver.
D Receiving and Transmitting
Receiving:
1. Select a channel.
L Rotate [ROTARY SELECTOR], or push one of the Memory
channel keys, [MR-CH 1] to [MR-CH 4], to select a channel.
2. When receiving a call, rotate [VOL] to adjust the audio
output level to a comfortable listening level.

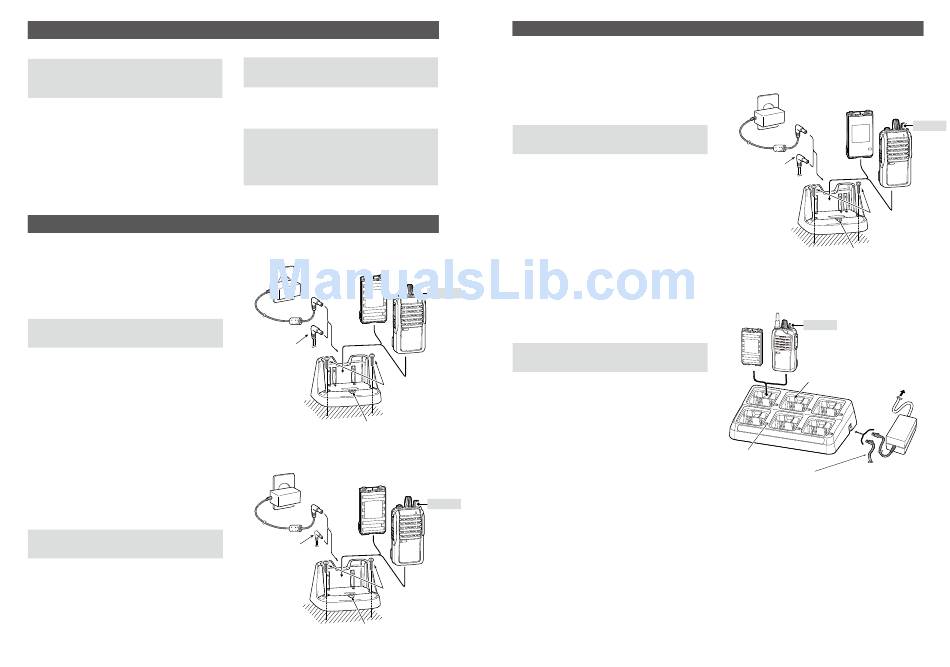

BATTERY CHARGING
D Using the BC-191 to rapidly charge the
BP-264
The BC-191 rapidly charges the BP-264 -
n i mh battery pack
L Charging time for the BP-264: Approximately 2 hours
A power adapter (not supplied with some versions) or the
OPC-515L / CP-23L
dc power cable cigarette lighter cable
is additionally required.
CAUTION: NEVER connect the OPC-515L to a power
source using reverse polarity. This will ruin the battery
charger. (White line: +, Black line: _)
Screws:
User supplied self tapping screw (M3.5 × at least 30 mm).
Using screws to secure the charger is recommended.
Charge indicator:
• Lights orange: While charging
• Lights green: Charging completed
D Using the BC-192 to regularly charge
the BP-264
The BC-192 regularly charges the BP-264 -
n i mh battery
.
pack
L Charging time for the BP-264: Approximately 16 hours
(at 16 V)
A power adapter (not supplied with some versions) or the
OPC-515L is additionally required.
dc power cable
CAUTION: NEVER connect the OPC-515L to a power
source using reverse polarity. This will ruin the battery
charger. (White line: +, Black line: _)
Screws:
User supplied self tapping screw (M3.5 × at least 30 mm).
Using screws to secure the charger is recommended.
Charge indicator: Lights green while charging.
L The charge indicator will not go out even after a battery
pack is fully charged.
Transmitting:
CAUTION: Attach an antenna before transmitting.
Transmitting without an antenna may damage the
transceiver.
1. Wait until the channel is clear to avoid interference.
2. Hold down [PTT] to transmit.
3. Release [PTT] to receive.
IMPORTANT:
To maximize the readability of your signal:
1. After pushing [PTT], pause briefly before you start
speaking.
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from
your mouth, then speak at your normal voice level.
Power adapter
( A different type, or no power adapter is supplied,
depending on the charger version.)
Battery pack Transceiver
.
To an
+ battery pack
AC outlet
The optional OPC-515L
(for a DC power source)
or the CP-23L (for a
12 V cigarette lighter
socket) can be used
Screws
instead of the power
adapter.
Charge indicator
Power adapter
( A different type, or no power adapter is supplied,
depending on the charger version.)
Battery pack Transceiver
To an
+ battery pack
AC outlet
The optional OPC-515L
(for a DC power source)
can be used instead of
the power adapter.
Charge indicator
- 2 -
D Using the BC-193 to rapidly charge the BP-265
The BC-193 can rapidly charge the BP-265
.
pack
L Charging time for the BP-265: Approximately 2.5 hours
A power adapter (not supplied with some versions) or the
OPC-515L / CP-23L
dc power cable
is additionally required.
CAUTION: NEVER connect the OPC-515L to a power
source using reverse polarity. This will ruin the battery
charger. (White line: +, Black line: _)
Screws:
User supplied self tapping screw (M3.5 × at least 30 mm)
Using screws to secure the charger is recommended.
Charge indicator:
• Lights orange: While charging
• Lights green: Charging completed
D Using the BC-197 to rapidly charge the BP-264 or BP-265
The BC-197 can rapidly charge up to 6 battery packs.
Turn OFF
L Charging time for the BP-264: Approximately 2 hours
L Charging time for the BP-265: Approximately 2.5 hours
A power adapter (not supplied with some versions) or the
OPC-656 is additionally required.
dc power cable
CAUTION: NEVER connect the OPC-656 to a power
source using reverse polarity. This will ruin the battery
charger. (Red line: +, Black line: _)
Charge indicator:
Each indicator functions independently.
• Lights orange: While charging
• Lights green: Charging completed
Charger adapter:
There are 2 types for the IC-F3002 and the IC-F4002. One
is for Ni-MH batteries, and the other is for Li-ion batteries.
BE SURE to choose the suitable charger type. See the
OPTION section on page 4 of this sheet.
Turn OFF
BATTERY CHARGING (Continued)
l i-ion battery
Power adapter
( A different type, or no power adapter is supplied,
depending on the charger version.)
To an
cigarette lighter cable
AC outlet
The optional OPC-515L
(for a DC power source)
or the CP-23L (for a
12 V cigarette lighter
socket) can be used
instead of the power
adapter.
Transceiver
Battery pack + battery pack
Turn OFF
Charger adapter
Charge indicator
OPC-656
( Connect to a DC power
source: 12 ~ 16 V, at least 7 A)
- 3 -
Battery pack Transceiver
+ battery pack
Turn OFF
Screws
Charge indicator
Power adapter
( A different type, or no
power adapter is supplied,
depending on the charger
version.)
To an
AC outlet
