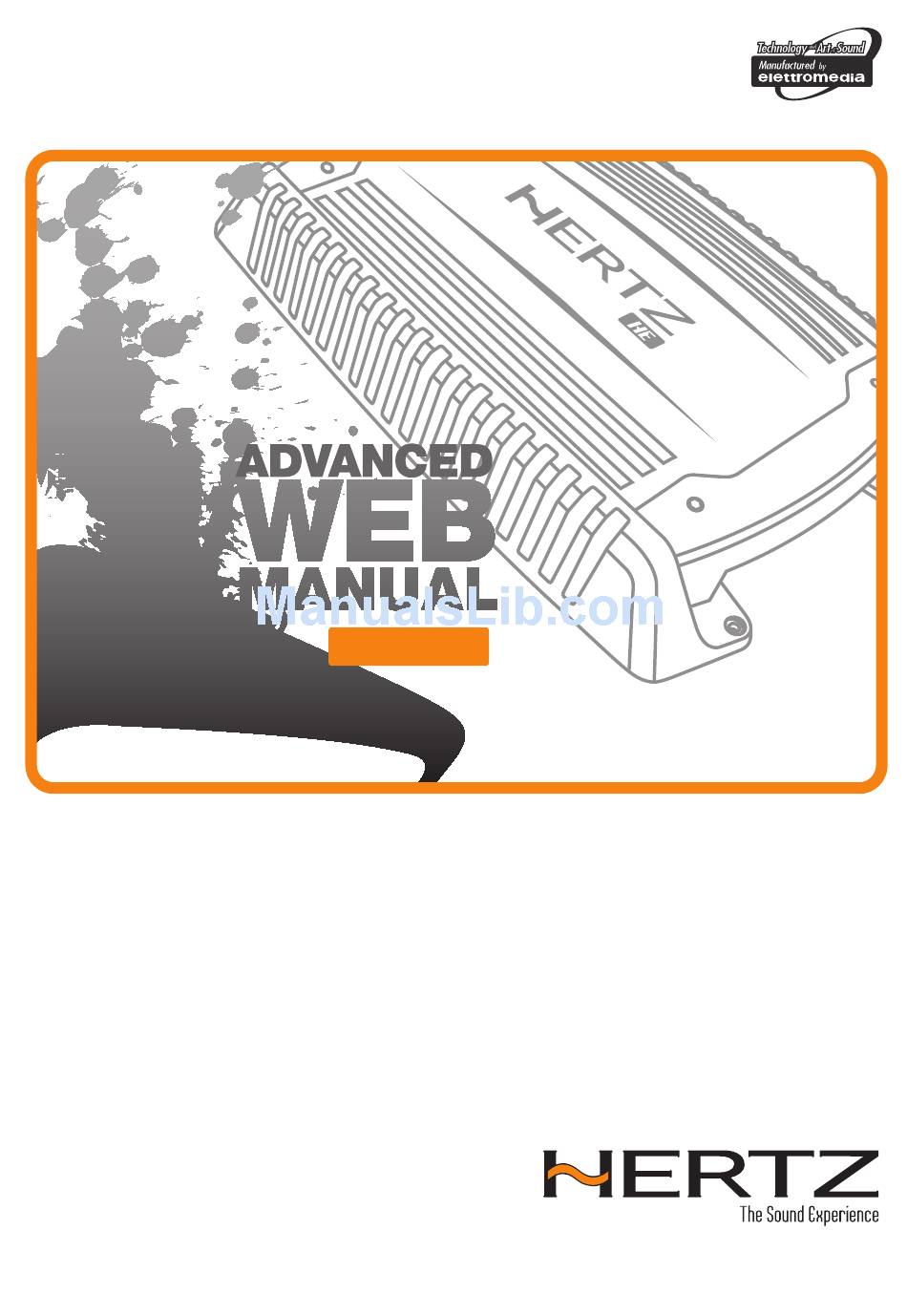

- Page 1 HE 4 www.hertzaudiovideo.com Elettromedia - 62018 Potenza Picena ( MC ) Italy - T + 39 0733 870 870 - F + 39 0733 870 880 - www.elettromedia.it...
-
Page 2: Speaker Out
Advanced Web Manual HE 4 INPUTS PRE IN Stereo Selectable Selectable REMOTE IN PRE OUT REMOTE Front Rear / Subwoofer INPUTS SPEAKER IN Stereo Selectable Selectable REMOTE OUT with Speaker IN SPEAKER OUT REMOTE IN other amplifier in the system... - Page 3 Advanced Web Manual HE 4 INPUTS PRE IN Mono (2 Ch Mode) REMOTE IN PRE OUT Right Left REMOTE INPUTS SPEAKER IN Mono (2Ch Mode) REMOTE OUT with Speaker IN Right Left SPEAKER OUT REMOTE IN other amplifier in the system...
- Page 4 Advanced Web Manual HE 4 OUTPUTS 4 Channels Mode - Front / Rear 2Ω 2Ω 2Ω 2Ω A CH B CH Full Full Front Rear OUTPUTS 4 Channels Mode - Multichannel 2Ω 2Ω A CH B CH Hi-pass Lo-pass 2Ω...
- Page 5 Advanced Web Manual HE 4 OUTPUTS 3 Channels Mode - Front / Sub 2Ω 2Ω 4Ω A CH B CH Hi-pass Lo-pass Front OUTPUTS 2 Channels Mode - Front 4Ω 4Ω A CH B CH Hi-pass Hi-pass Left Right...
- Page 6 Advanced Web Manual HE 4 CONTROLS 2 Channels Mode - Sub 4Ω 4Ω B CH A CH Lo-pass Lo-pass Sub A Sub B...
-
Page 7: Technical Specifications
Advanced Web Manual HE 4 CONFIGURATION TECHNICAL SPECIFICATIONS 11 ÷ 15 VDC 0.02 mA 25 A 6 ÷ 15 VDC (1 mA) 12 VDC - 15 mA 2 x 20 A 7 Hz ÷ 45 kHz 0.06% 104 dB 0.3 ÷ 5 V 1.4 ÷...
