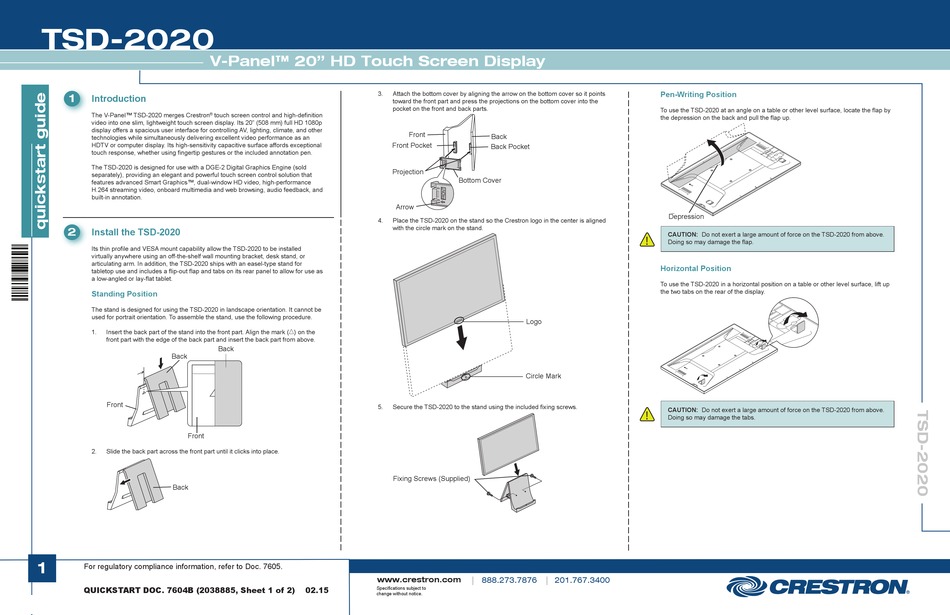

Crestron V-Panel TSD-2020 Quick Start Manual

TSD-2020
V-Panel™ 20" HD Touch Screen Display
1

Introduction

The V-Panel™ TSD-2020 merges Crestron ® touch screen control and high-definition
video into one slim, lightweight touch screen display. Its 20" (508 mm) full HD 1080p
display offers a spacious user interface for controlling AV, lighting, climate, and other
technologies while simultaneously delivering excellent video performance as an
HDTV or computer display. Its high-sensitivity capacitive surface affords exceptional
touch response, whether using fingertip gestures or the included annotation pen.
The TSD-2020 is designed for use with a DGE-2 Digital Graphics Engine (sold
separately), providing an elegant and powerful touch screen control solution that
features advanced Smart Graphics™, dual-window HD video, high-performance
H.264 streaming video, onboard multimedia and web browsing, audio feedback, and
built-in annotation.
2

Install the TSD-2020

Its thin profile and VESA mount capability allow the TSD-2020 to be installed
virtually anywhere using an off-the-shelf wall mounting bracket, desk stand, or
articulating arm. In addition, the TSD-2020 ships with an easel-type stand for
tabletop use and includes a flip-out flap and tabs on its rear panel to allow for use as
a low-angled or lay-flat tablet.
Standing Position
The stand is designed for using the TSD-2020 in landscape orientation. It cannot be
used for portrait orientation. To assemble the stand, use the following procedure.
1. Insert the back part of the stand into the front part. Align the mark ( ) on the
front part with the edge of the back part and insert the back part from above.
Back
Front
Front
2. Slide the back part across the front part until it clicks into place.
Back
1
For regulatory compliance information, refer to Doc. 7605.
QUICKSTART DOC. 7604B (2038885, Sheet 1 of 2)
TCADZ1176MPZ1
3. Attach the bottom cover by aligning the arrow on the bottom cover so it points
toward the front part and press the projections on the bottom cover into the
pocket on the front and back parts.
Front Pocket
Front pocket
Projection
Arrow
4. Place the TSD-2020 on the stand so the Crestron logo in the center is aligned
with the circle mark on the stand.
Back
5. Secure the TSD-2020 to the stand using the included fixing screws.
Fixing Screws (Supplied)
www.crestron.com
02.15 Specifications subject to
change without notice.
Front
Back
Back Pocket
Back pocket
Bottom Cover
Bottom cover
Logo
Logo
Circle mark Circle Mark
Fixing screws (supplied)
888.273.7876 201.767.3400
Pen-Writing Position
To use the TSD-2020 at an angle on a table or other level surface, locate the flap by
the depression on the back and pull the flap up.
Depression Depression
CAUTION: Do not exert a large amount of force on the TSD-2020 from above.
!
Doing so may damage the flap.
Horizontal Position
To use the TSD-2020 in a horizontal position on a table or other level surface, lift up
the two tabs on the rear of the display.
CAUTION: Do not exert a large amount of force on the TSD-2020 from above.
!
Doing so may damage the tabs.
