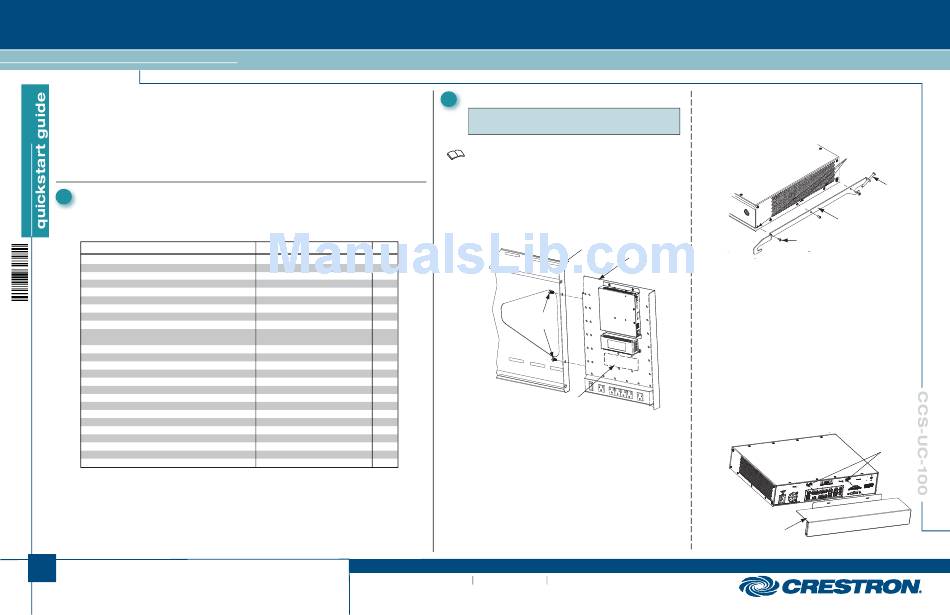

Crestron CCS-UC-100 Quick Start Manual

CCS-UC-100
Crestron RL™ is a comprehensive group collaboration solution that combines Crestron
Microsoft ® Lync ® software. The Crestron RL solution is based on Microsoft Lync 2013, a popular and
powerful server-based application that many companies already use on a daily basis. This full-featured,
unified communication system enables video, voice, interactive content sharing, presence, and chat from
one touch screen interface.
Two Crestron RL systems are offered. The dual display system (CCS-UC-100-2 KIT) is perfect for medium
to large conference rooms, and includes two high-definition 65" touch displays. The single display system
(CCS-UC-100-1 KIT) includes a single 65" touch display and is ideally suited for small to medium sized
conference rooms, executive offices, and huddle rooms.
1

Preparation

A. Verify Contents
Before starting installation, check the system package contents. Included items are listed in the
following table. Retain all documents and parts supplied for use in the installation process.
DESCRIPTION
Touch Screen, Color, 10"
Camera, USB, Fixed, 2 Megapixel
CCS, Cable, Audio, 3.5 mm to (2X) RCA, 3' (1 m)
CCS, Cable, Audio, 3.5 mm to (2X) RCA, 12' (4 m)
Cable, VGA to DVI, 30' (~10 m)
Cable, HDMI to DVI, 30' (~10 m)
Cable, HDMI to DVI, 3' (1 m)
Cable, HDMI to DVI, 20' (~6 m)
Cable, CAT6, 14' (~4.3 m)
CCS, Cable, Sleeve, Expandable, Wrap, 1/2" x 33"
(13 x 838 mm) L, Blk
Crestron Collab Sys, Unified Comm, Codec, MSLYNC
Crestron Collab Sys, SPK, Sound Bar, Blk
Wall Mount Kit: CCS-TS-6500
Crestron Collab Sys, Touch Screen, 65" (1.65 m), 1080p, Blk
3 Cable Assembly
Accessory Bracket Assembly
Codec Mounting Bracket, Right
Codec Mounting Bracket, Left
Sound Bar Bracket
Camera Bracket
Cable Tray
Shelf Mount Bracket
Rack Mount Bracket
Power Pack For Ethernet
1' (~0.3 m) LAN Cable
1. Mounting hardware included.
2. One in CCS-UC-100-1 KIT; two in CCS-UC-100-2 KIT
B. Tools Required
Installation requires the use of a #1 or #2 Phillips screwdriver as well as a socket wrench
with 1/2" and 7/16" sockets.
1
For regulatory compliance information, refer to Doc. 7548.
QUICKSTART DOC. 7479B (2035756, Sheet 1 of 2) 08.13
Crestron RL™ Group Collaboration System for Lync
®
hardware with
PART NUMBER QTY
TS-1051-C-B-S 1
CCS-CAM-USB-F-100 1
CBL-AUD-3MM-RCA-3 1
CBL-AUD-3MM-RCA-12 1
CBL-VGA-DVI-30 1
CBL-HD-DVI-30 1
CBL-HD-DVI-3 1
CBL-HD-DVI-20 1
CBL-CAT6-14 1
CBL-SLEEVE-EXPAND-WRAP 2
1/2-33-B
1
CCS-UC-CODEC-100 1
CCS-SPK-SB-100-B 1
CCS-TS-6500-WMK 1 1
CCS-TS-6500-B 1 2
CBL-HD-ASSY 1
CCSA-BRKT-100 1 1
1
N/A 1
1
N/A 1
N/A 1 1
N/A 1 1
N/A 1 1
Included with codec 1
Included with codec 2
PWE-480SU 1
CBL-CAT6-1 1
www.crestron.com
Specifications subject to
change without notice.
2

Installation

NOTE: Mounting hardware is packaged with the parts and
assemblies to be attached.
Typical CCS-UC-100 installation procedures are provided in
steps A through H. For detailed information about the
CCS-TS-6500 Tilting Wall Mount for 65" Display, refer to the
included CCS-TS-6500-WMK Installation Guide (Doc. 7511).
Alternate mounting procedures for the CCS-UC-CODEC-100
are provided in step I.
A. Install Accessory Bracket Assembly
1. Use the supplied 1/4-20 x 1/2" mounting screws to attach
the accessory bracket assembly to the wall plate (part of
the CCS-TS-6500).
Wall Plate
Accessory
Bracket
Mounting
Screws
Attach Power Supply
2. Use two plastic tie wraps (supplied), to attach the power
supply for the 65" touch screen overlay to the accessory
bracket in the area indicated by the dashed line in the
illustration above. The port for the ac power source should
face to the right.
3. Cut the tie wraps securing the power strip cable to the
accessory bracket (secured for shipping only).
.
888.273.7876 201.767.3400
®
B. Install Mounting Brackets on Codec
1. Remove three side cover bottom screws from each
side of the codec and discard them.
2. Attach right and left codec mounting brackets to
codec using the supplied screws.
Side Cover Bottom
Screws
Codec Mounting
Bracket, Right
(Codec Mounting
Screws
Bracket, Left Not
(3 Each Side)
Shown)
Supplied
C. Install Cable Tray
Attach the supplied cable tray to the rear of the codec
as follows:
1. Attach all interface and power cables to the rear
of the codec, including those that connect to the
CCS-TX-201-C and PoE injector mounted on the
accessory bracket assembly. (Refer to the
connection details on page 3.)
2. Route the cables right or left toward their
intended termination point, and bundle them with
plastic tie wraps as necessary.
3. Loosen the two screws indicated in the illustration
below approximately 1/4" (6 mm).
4. Mount the cable tray on the screws, slide the tray
to the right to engage the keyhole slots, and
tighten the screws.
(Codec
Mounting
Brackets Not
Shown)
Cable Tray
(Continued on following page)
.
Attach Supplied
Long Screws
To Brackets
.
Mounting
Screws
