PH2601QL & PH3501QL Installation Guide
Desktop and Ceiling Mount
Cabinet Dimensions

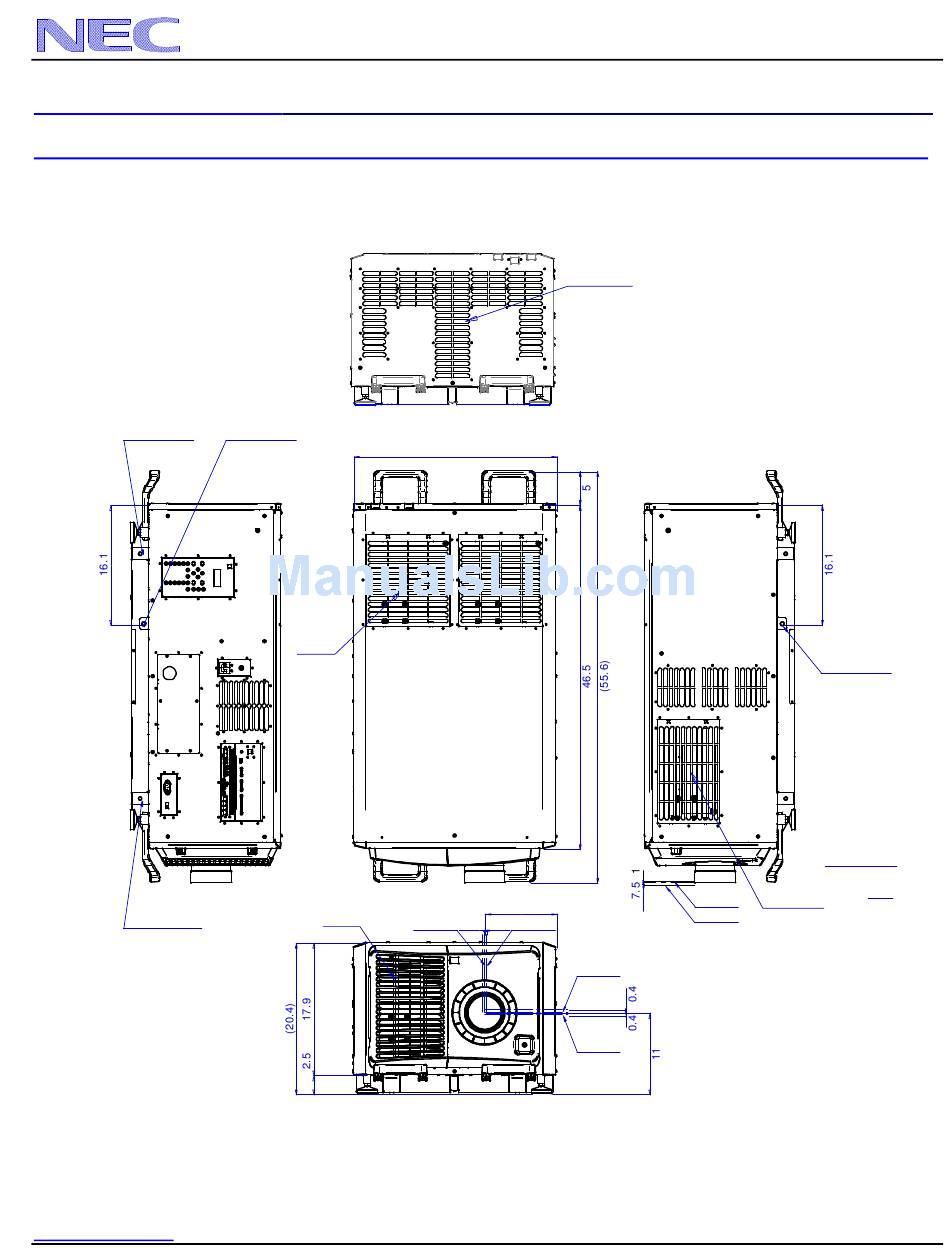

The following diagrams show the cabinet dimensions for the PH2601QL/PH3501QL.
Dimensions are in inches. For millimeters multiply by 25.4.
Note: Dimensions below shown without lens
Eyebolt
Max M10x20
\U+3000Eyebolt
\U+3000Max M10x20
www.necdisplay.com
Tilt Block
Max M12x20
Intake
Intake
PH2601QL/PH3501QL
NEC Display Solutions of America, Inc.
EXHAUST
27
9.6
Lens Shift
0.3 0.3
Lens Shift
Lens Shift
Lens Shift
Tilt Block
Max M12x20
Eyebolt
Max M10\U+FF5820
Foot
Lens Shift
Intake
Lens Shift
Page 5 of 11
Rev 1.0
.
