U82 Adaptor Kit Installation
Instruction Manual

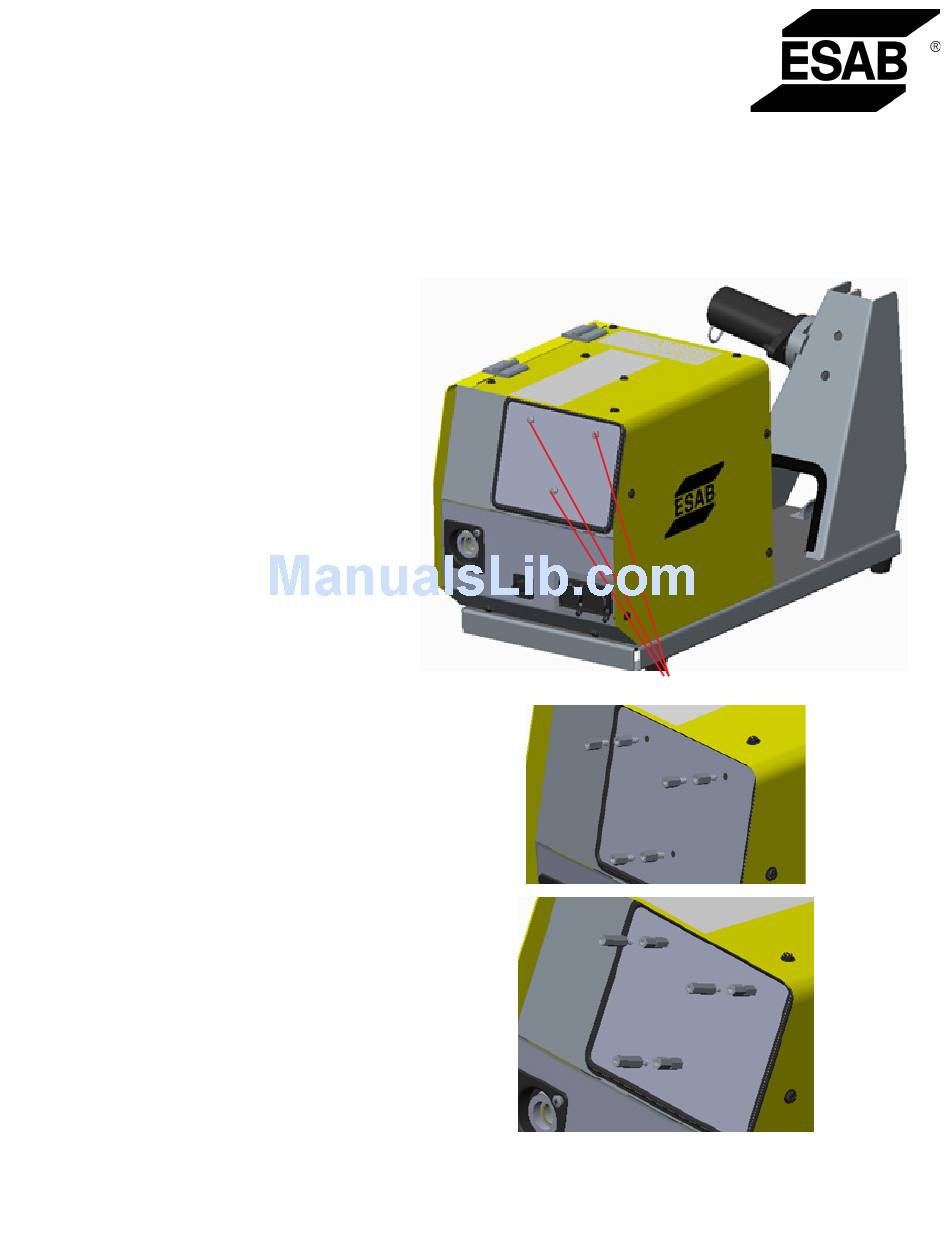

This manual provides installation instructions for a U82 Adapter Kit for the following machines:
Feed 4004HD w/ M0 blank panel
1. Remove the 3 screws installed in the blank
control panel.
2. Install 6 standoffs included with U82 control
pendant.
3. Install 3 additional standoffs provided in this
kit.
0558012647
07/2016
REMOVE
