GALAXY
2000CX-HR
2000FX-HR
PROFESSIONAL
12 GALLON CARPET EXTRACTOR
OWNER'S/OPERATOR'S MANUAL
PROUDLY DESIGNED AND MANUFACTURED BY
WWW.EDIC-USA.COM
Revised 1-25-18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Galaxy 2000CX-HR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edic Galaxy 2000CX-HR

Summary of Contents for Edic Galaxy 2000CX-HR

  • Page 1 GALAXY 2000CX-HR 2000FX-HR PROFESSIONAL 12 GALLON CARPET EXTRACTOR OWNER’S/OPERATOR’S MANUAL PROUDLY DESIGNED AND MANUFACTURED BY WWW.EDIC-USA.COM Revised 1-25-18...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS RECEIVING YOUR EQUIPMENT................... WARNINGS AND SAFETY....................3, 4 ELECTRICAL INFORMATION..................GROUNDING INSTRUCTIONS..................MAINTENANCE........................ CORD STORAGE AND SAFETY..................2000CX-HR MACHINE OVERVIEW................2000FX-HR MACHINE OVERVIEW................ACCESSORY HEATER OVERVIEW................HOW TO USE AN ACCESSORY HEATER..............PRIMING THE MACHINE..................... ADJUSTING PRESSURE....................CLEANING CARPET......................

  • Page 3: Receiving Your Equipment

    Any deviation from its EDIC’s liability ceases when the carrier picks up the ship- proper use or purpose and the consequential damage ment. However, our customer service staff will be happy...

  • Page 4: Electrical Information

    GROUNDING INSTRUCTIONS FOR • All repairs must be done by an authorized EDIC repair station. 115VOLT: • Do not use replacement parts other than original EDIC parts. This piece of equipment must be grounded. Should an • Do not allow your spray stream to remain in one electrical malfunction occur, grounding provides a path fixed location as surface damage may occur.

  • Page 5: Maintenance

    MAINTENANCE: Weekly: This 2000CX-HR/2000FX-HR has been engineered and • Check and clean solution filter built to require minimum maintenance. But like any • Check for obstructions in vacuum pathways machine, it does require basic care to keep it in optimum •...

  • Page 6: 2000Cx-Hr Machine Overview

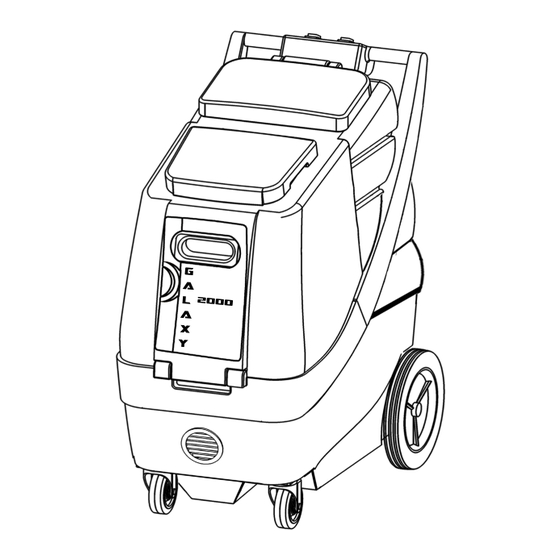

    2000CX-HR OVERVIEW 1. Handle- Used to maneuver and position the 2000CX- 6. Male twist lock pigtail- Connects to 50ft power cord. HR/2000FX-HR. Contains switch box (for switchbox, One circuit per cord. see #12). 7. Solution line Q.D.- Pressurized connection for solu- 2.

  • Page 7: 2000Fx-Hr Machine Overview

    2000FX-HR OVERVIEW 1. Handle- Used to maneuver and position the 2000CX- recovery vacuum hose to this barb. HR/2000FX-HR. Contains switch box (for switchbox, 6. Two male twist lock pigtails- Connect to two 50ft see #12). power cord. One circuit per cord 2.

  • Page 8: Accessory Heater Overview

    1. INLET QUICK DISCONNECT AND HOSE- Con- 6. HANDLE- Used to hold and transport the heater nects to machine’s outlet. 7. MOUNTING FEET- Used to engage the mounting 2. POWER SWITCH. brackets on an 2000CX-HR/2000FX-HR extractor 3. LAMP- Indicates when heat element is on and work- and secure the heater.

  • Page 9: How To Use An Accessory Heater

    How to use an accessory heater: 5. Connect your 50FT power cord to the twist lock pigtail on the heater (#4 on page 8). Plug 1. Fill the solution tank of your 2000CX-HR/2000FX- the 50ft power cord(s) to the twist lock pigtail HR extractor with sufficient water or solution for the on the back of the machine (#6 on pages 6&7) task at hand.

  • Page 10: Priming The Machine

    PRESSURE RELIEF/POWER PRIME VALVE: ADJUSTING PRESSURE USING THE PRESSURE REGULATOR: For location, see #8 on page 6 and 7. CLOSED Pressure gauge Pressure regulator OPEN This machine is equipped with a PRESSURE REGU- LATOR and PRESSURE GAUGE. You may adjust the pressure between 100PSI and 500PSI.

  • Page 11: Cleaning Carpet

    CLEANING CARPET: CLEANING UPHOLSTERY: 1. Using a dedicated dry vacuum, pre-vacuum the space Cleaning upholstery with success requires a good knowl- to be cleaned to remove as much dirt as possible. Do edge of the type of fabric to be worked on. Look for the not use the extractor to dry vacuum as it does not cleaning instruction label sewn on the underside of the have a dry filter.

  • Page 12: Wiring

    WIRING DIAGRAM 2000CX-HR 2700CX-HR 7-6-16 HANDLE MOTOR HOUSING BLACK WHITE...

  • Page 13: Wiring

    WIRING DIAGRAM 2000FX-HR 2700FX-HR 7-6-16 HANDLE MOTOR HOUSING BLACK WHITE BLACK WHITE YELLOW...

  • Page 14: Upper Breakdown 2000Cx-Hr

    14 15 17 18 22 23 2000CX-HR UPPER 6-23-16...
  • Page 15 2000CX-HR UPPER 6-23-16 ITEM PART NUMBER QTY. F11787 Solution Tank F11788 Recovery Tank F11791 Lid, Solution Tank A00060 3-8 Barb X 1-4MP, Brass A00052 90 Elbow, .25MP X .25FP C11244 Washer, .56 X 1.5 X .05 E11124 Gasket, Recovery Tank 12904A Stand Pipe Assembly K11965 Elbow, 180 Deg.

  • Page 16: Upper Breakdown 2000Fx-Hr

    14 15 17 18 22 23 2000FX-HR Upper 6-23-16...
  • Page 17 2000FX-HR Upper 6-23-16 ITEM QTY. DESCRIPTION F11787 Solution Tank F11788 Recovery Tank F11791 Lid, Solution Tank E11124 Gasket, Recovery Tank 12904A Stand Pipe Assembly K11965 Elbow, 180 Deg. Float Ball K00672 Pvc Pipe, 1.5 X 12 in, Sch 40 Wht K00741 Adapter 10989-2A Float Ball Screen 10 F11785 Lid, Recovery Tank...
  • Page 18 2000CX-HR BASE 6-23-16 20 21 22 67 68 64 65 66...
  • Page 19 2000CX-HR 6-23-16 ITEM QTY. ITEM QTY. PART NUMBER J13152 Double grip hose Clamp J11863 Vac Exhaust hose, 2” diameter 1 ft J00639 Screw Clamp, 1.63 - 2.43in. J00618 Hose , V ac base to waste tank 22” F11178-BLK Intercooler, Galaxy, Black C00273 Locknut, 1-4 X 20, Nylon, SS C00233 Washer, Flat, .25 in E00449 Grommet...

  • Page 20: Lower Breakdown 2000Fx-Hr

    2000FX-HR BASE 6-23-16 20 21 22 67 68 64 65 66...
  • Page 21 2000FX-HR 6-23-16 ITEM PART NUMBER QTY. ITEM PART NUMBER QTY. J13152 Double grip hose Clamp J11863 Vac Exhaust hose, 2” diameter 1 ft J00639 Screw Clamp, 1.63 - 2.43in. J00618 Hose , V ac base to waste tank 22” F11178-BLK Intercooler, Galaxy, Black C00273 Locknut, 1-4 X 20, Nylon, SS C00233 Washer, Flat, .25 in E00449 Grommet...

  • Page 22: Troubleshooting

    TROUBLESHOOTING ELECTRICAL SYSTEM PROBLEM SOLUTION NO ELECTRICAL POWER 1. Defective power cord. 2. House or building circuit breaker tripped POWER IS INTERMITTENT TO ONE OR ALL MO- 1. Faulty electrical cable. TORS 2. Defective switches. 3. Loose terminal or discolored terminal connections. VACUUM SYSTEM PROBLEM SOLUTION...

  • Page 23: Notes

    NOTES _________________...

  • Page 24: Warranty Info

    Standard Rates, during the warranty period set forth above. This warranty excludes transportation charges unless authorized in writing by EDIC. No warranty returns for refund or credit will be permitted. In the event of a defect, these are your exclusive remedies. Warranty claims must be made in writing to EDIC prior to returning the product and no products will be accepted for repair or replacement without prior authorization by EDIC.
  • Page 25 (f) acts of God; or (g) modification of or any part of the product. This Limited Warranty does not cover EDIC products sold AS IS and WITH ALL FAULTS. This Limited Warranty is valid only in the United States and Canada.
