Summary of Contents for Entes DTR-10

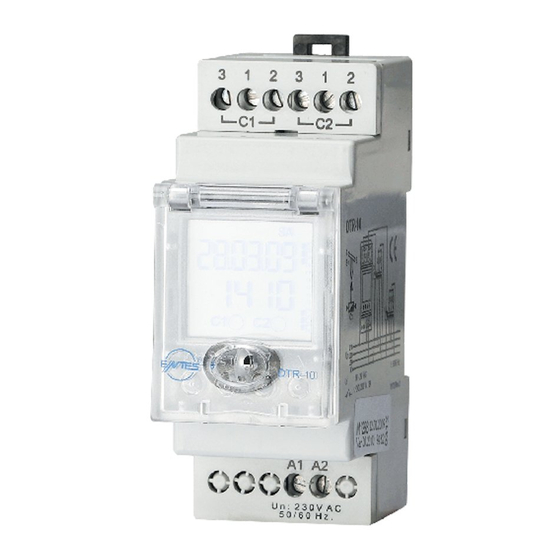

- Page 1 DTR-10 User Manual and Menu Map Dudullu OSB; 1. Cadde; No: 23 34776 Umraniye - ISTANBUL / TURKIYE : 0 216 313 01 10 Fax : 0 216 314 16 15 A5299 / Rev.3...
- Page 2 It is used to switch between monitoring menus. In the programming mode, it is used to In order to use the relay outputs manually, DTR-10 has to be in the monitoring mode. The DOWN button cancel a parameter change or to return to the previous menu.
- Page 3 Date Menu Menu Activity Time DTR-10 has 2 relay outputs as C1 and C2. The user must choose between C1 and C2 as the relay output Menu Menu which he want to control. Activation Time Setting ( PXX-ON ): There are 3 parameters: Time, sunrise and sunset.
- Page 4 Selection of Activation Days: The day/days in which the program will be activated is adjusted in this Settings Observation Menu: The user can observe the sub-menu settings with 3 second intervals in this menu. The activation/deactivation ALL DAYS menu. If “ ”...
- Page 5 Time Settings Menu: Regional Settings Menu: The time settings are done in this menu. There are 3 sub-menus. The changes which are meade in this Geographical settings are done in this menu. The changes which are made in this menu are saved to the SAVE menu are immediately applied.
- Page 6 Display Settings Menu: Password Settings Menu: The contrast is adjusted between 00 an 15 in this menu. The activation and changing of a password is done in this menu. The factory default value for the password is “0000”. The 4 digit password is prompted before entering this menu. If the password is activated, it isn’t prompted again before entering this menu since the password was entered before entering the main CONTRAS CONTRAS...
- Page 7 Password Change Menu: The password is changed in this menu. It is done as following: Factory Setting Menu: The device is returned to its factory settings in this menu. The 4 digit password is prompted before entering this menu. If the password is activated, it isn’t prompted again before entering this menu since the password Selected was entered before entering the main programming menu.
- Page 8 DIMENSIONS CONNECTION DIAGRAM TECHNICAL FEATURES Electrical Features 58 mm Operating Voltage (U n ) Please look at the side label 1 A1 Output Contact 2 C/O , 16 A / 4000 VA Refresh Time 1 sec. Power Consumption < 5 VA TYPE PK25 Accuracy 1 sec./Day...
- Page 9 City Names and Their Screen Displays for the Language set in the Regional Settings Displayed Time Cities Name Zone Berlin, Germany Paris, France Accra, Ghana Addis Ababa, Ethiopia Glasgow, Scotland Pyongyang, North Korea Aden, Yemen Helsinki, Finland Rarotonga, Cook Islands Havana, Cuba Algiers, Algeria Rejkjavik, Iceland...
- Page 10 APPLICATION EXAMPLE 1: On every weekday, the C1 relay will be activated 1 hour 35 minutes 51 seconds before the sunrise and be deactivated at 9 o’clock. SUNRISE +0:00:00 ALL DAYS P01-OFF 16.08.10 PROGRAM P01-OUT P01-ON TIME 16:40:51 FREE SUNRSE +0:00:00 -1:35:51 3 sec.
- Page 11 APPLICATION EXAMPLE 2: C2 relay will be activated every monday at 18:30 and will be deactivated at sunrise time. TIME +0:00:00 ALL DAYS MONDAY TUESDAY 16.08.10 PROGRAM P01-OUT P01-ON 16:40:51 FREE TIME 3 sec. +0:00:00 18:30:00 1 2 3 4 5 6 7 SUNSET +0:00:00 1 2 3 4 5 6 7...
- Page 12 MENU MAP 16:12:10 SUNRISE SUNSET PO1-C1 C1-TIME C1-SHOT C2-TIME C2-SHOT 18:45:52 07:22:00 16:36:00 05:44:00 000000 000000 000000 000000 Press for 3 seconds PROGRAM HOUR DEMO REGIONL TIME DISPLAY MANUAL PASWORD FACTORY VERSION EXIT COUNTR MODE SETING SETING SETING MODE SETING SETING INFOS MENU...
- Page 13 Press for 3 seconds. EDIT / DELETE Time Activation time setting Activation day selection Deactivation time setting won’t be shown conflict P01-OUT for empty query programs. PO1-ON ALL DAYS MONDAY FRIDAY PO1-OFF PROGRAM CONFIRM PROGRAM 00:00:00 00:00:00 ADJSTED FULL VALID TIME TIME HH:mm:ss...
- Page 14 DEMO HOUR C1-TIME PO1-C1 P15-C1 TIMEZON DAYLIGH POSITIO RECOVRY CONFIRM MODE COUNTR DELETE C1-SHOT DELETE LATITUDE REGIONL POSITIO POSITIO LONGITUDE SETING MANUAL POSITIO MANUaL 0000 000.00 MANUAL POSITIO accaa ACCAA In the settings observation menu, the set POSITIO parameters of the sub-menus are shown. The vienna VIENNA sub-menu titles are shown on the menu flow...
- Page 15 REGIONL POSITIO SETING MANUAL Buttons increase or decrease the TIMEZON TIMEZON TIMEZON TIMEZON TIMEZON value by "0:30". 3:30 3:30 12:00 -12:00 3:00 DST Finish Time Setting DST Start Time Setting DAYLIGH DAYLIGH S MONTH S WEEK S DAY S HOUR W MONTH W WEEK W DAY...
- Page 16 Selected parameter is shown. The last entered DATE is shown. DATE DATE TIME DATE MANUAL RECOVRY RECOVRY SETING 13.09.10 CHANGED MODE DISABL 13.09.11 20.09.89 DISABL DATE NEXT-P The last entered CLOCK is shown. R-TIMER R-TIMER CLOCK CLOCK CLOCK 00:00 00:00 TIMER 20:53:40 CHANGED...
- Page 17 If the password is active, it isn’t prompted. If the password is active, it isn’t prompted. Selected parameter is shown. PASWORD PASWORD PASWORD PASWORD FACTORY PASWORD PASWORD CONFIRM PASWORD SETING SETING DISABL 0000 0000 0000 0000 DISABL ACTIVE SETTING PASWORD PASWORD LOADED 0001...
