INSTALLATION
INSTRUCTIONS
IMPORTANT: please read these instructions before commencing installation and retain for future reference.
Components
1 x Vermont LED Mirror
(screw and spacers attached)
Important safety instructions
Please read these instructions carefully before attempting to install this
product. It is advisable to keep these instructions in a safe place for further
reference.
We recommend that you consult a qualified electrician.
All electrical installations must be carried out in accordance
with current IEE wiring regulations (BS7671).
These products must not be modified. If any modifications are
made, it may invalidate the warranty and may render the product unsafe.
This product should be used indoors.
Safety instructions
1. Before commencing installation or maintenance, isolate the main electrical supply for the appropriate circuit at the fuse board.
2. This product is only to be connected to a 240V 50Hz supply.
3. The mirror should be mounted onto a secure surface.
4. When installing please take care to avoid water pipes, joints and electrical cables.
5. The mirror must be installed with a minimum clearance of 150mm between the infrared sensor and any adjacent countertop
or obstruction to ensure correct function of the sensor.
Waste Electrical & Electronic Equipment (WEEE)
The symbol on the product, or on the document accompanying the product, the crossed
out wheelie bin symbol, indicated that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of electrical
and electronic waste.
1 x VERMONT
LED MIRROR
CODE: SE30776C0
1 x instructions
Tools required
1x Pencil
• If in doubt installation must be carried out by a qualified electrician.
• Install on smooth flat surface(s) only.
• Do not exceed or stretch the cable length of each LED wire.
• There are 156 x 0.09W warm white LEDs around this mirror
• (W)500mm x (H)700mm x (D)50mm
• Please make sure the LEDs are working correctly before
commencing installation
1x Screw Driver
Advertisement
Related Manuals for Sensio SE30776C0
Summary of Contents for Sensio SE30776C0
-
Page 1: Tools Required

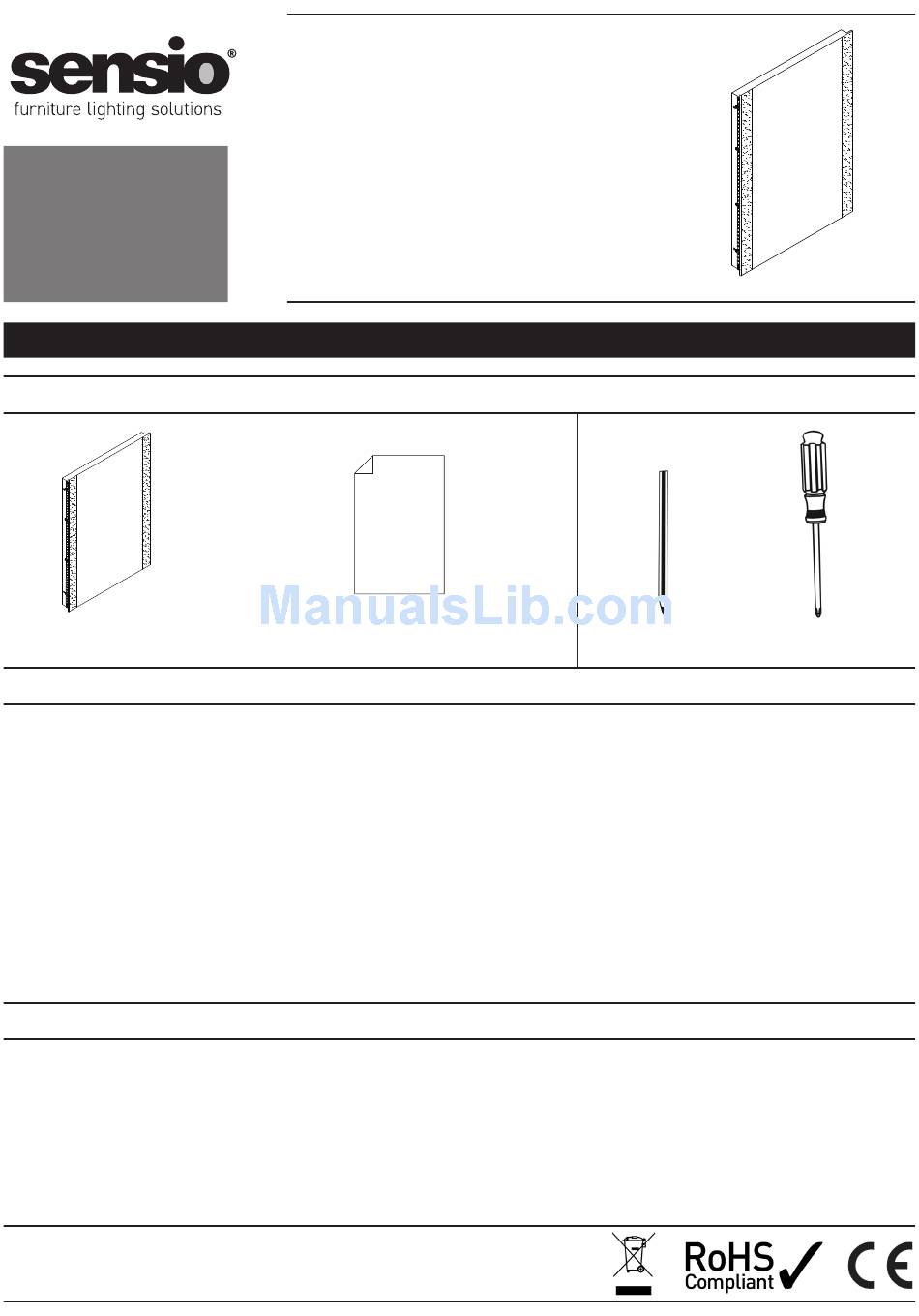

1 x VERMONT LED MIRROR INSTALLATION INSTRUCTIONS CODE: SE30776C0 IMPORTANT: please read these instructions before commencing installation and retain for future reference. Components Tools required 1 x Vermont LED Mirror 1 x instructions 1x Pencil 1x Screw Driver (screw and spacers attached) Important safety instructions Please read these instructions carefully before attempting to install this • If in doubt installation must be carried out by a qualified electrician. product. It is advisable to keep these instructions in a safe place for further • Install on smooth flat surface(s) only. reference. • Do not exceed or stretch the cable length of each LED wire. • There are 156 x 0.09W warm white LEDs around this mirror We recommend that you consult a qualified electrician. - Page 2 Neutral Blue wire(N) Incoming Live (brown/red) screws, ensuring that the fixings are into a solid Remove the four screws, along with the metal to Live Brown Wire(L). To activate the demister material, not plasterboard. Mount the metal box and white spacer from the back box using a pad, simply attach the labelled male and female of the mirror onto the wall and secure tightly. Philips screwdriver. Carefully lift the front glass connectors together. Attach the front glass Pierce the small protective IP rated rubber panel off and position onto a flat, soft surface to panel safely onto the metal back box mounted grommet (this is to isolate and trap any steam avoid scratching the mirror glass. on the wall, secure tightly using the four screws, produced to ensure maximum safety use). including the metal and white spacer. Finally, switch on the mains electrical supply and pass your hand in front of the sensor to activate the lights. Maintenance & Care • Ensure that the power is disconnected prior to cleaning. • To keep the finish of this product, wipe over with a soft cloth periodically. • Do not use harsh chemical solvents, this may dis-colour or damage the finish. Sensio House, Unit 7, Speedwell Road, Whitwood, Castleford, West Yorkshire, WF10 5PY www.sensio.co.uk Technical drawings for illustration purposes only, Sensio has the right to change any information without prior notice. Make sure you check all hole cut outs before work commences.
