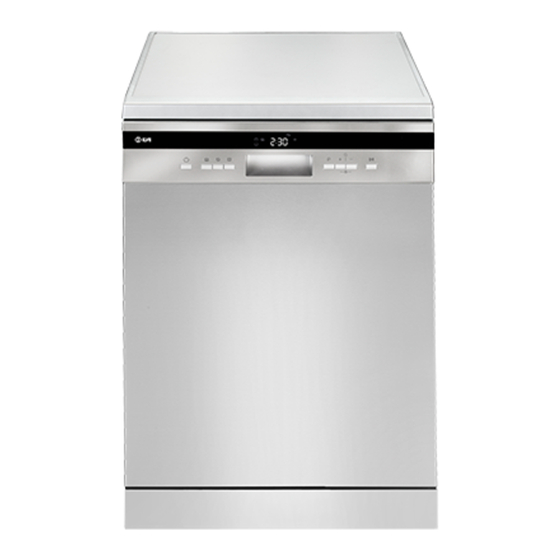

- Page 1 Dishwasher Operating & Installation Manual ILVE Dishwasher Installation and Operating Instructions template pages.indd 1 1/05/2015 9:16 am...
-
Page 3: Important Safety Information
1.IMPORTANT SAFETY INFORMATION 1.IMPORTANT SAFETY INFORMATION WARNING! WARNING! When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses;... - Page 4 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
- Page 5 Disposal Disposal Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g.
- Page 6 2.Quick operation guide 2.Quick operation guide For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the Power switch button to switch on the appliance, Open the door. Compartment A: Compartment A: With each wash cycle. Compartment B: Fill the detergent dispenser For programs with pre-wash only.
-
Page 7: Control Panel
3.Operation Instruction 3.Operation Instruction IMPORTANT IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel Control Panel Control Panel Control Panel 2 2 3 3 4 4 6 6 7 7 1.On/Off Button: To turn on/off the power supply. -
Page 8: Prior To First Time Use
4. Prior to first time use Before using your dishwasher for the first time: Fill the rinse aid dispenser Detergent A. Fill the Rinse Aid Dispenser A. Fill the Rinse Aid Dispenser Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. -
Page 9: Concentrated Detergent
Adjusting Rinse Aid Dispenser The rinse aid dispenser has six settings. Always start with the dispenser Adjust lever Adjust lever set on "3". If spots and poor drying are a problem, increase the amount of rinse (Rinse) (Rinse) aid dispensed by removing the dispenser lid and rotating the dial to "4". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. -
Page 10: Amount Of Detergent To Use
Amount of Detergent to Use Detergent powder Press latch to open Press latch to open Detergent tablet NOTE: NOTE: If the lid is closed: press release button. The lid will spring open. Always add the detergent just before starting each wash cycle. Only use branded detergent aid for dishwasher. -
Page 11: Attention Before Or After Loading The Dishwasher Baskets
5.Loading the Dishwasher Baskets 5.Loading the Dishwasher Baskets Recommendation Recommendation Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended. -
Page 12: Adjusting The Upper Basket
The Method Loading Normal Dishware The Method Loading Normal Dishware Loading the Lower Basket Loading the Lower Basket Loading the Upper Basket Loading the Upper Basket The upper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clean items are to be placed into the lower tea cups and saucers, as well as plates, small bowls... - Page 13 Means: need to fill rinse into the Rinse-Aid Dispenser. Pre-wash (45 ) ℃ Auto Auto sensing wash, lightly, Autowash(45-55 ) ℃ 5/28.75g or heavily soiled crockery, 0.9~1.3 11~15 Rinse (1 piece) with or with out dried-on food Rinse (65 ) ℃...
-
Page 14: Change The Program
NOTE: NOTE: When you press the Start/Pause button to pause during washing, the LED display will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start. Change the Program Change the Program Premise: A cycle that is underway can only be modified if it has only been running for a short time. -
Page 15: Maintenance And Cleaning
7.Maintenance and Cleaning 7.Maintenance and Cleaning Filtering System Filtering System The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). -
Page 16: Cleaning The Filter
Remarks: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. NOTE: NOTE: The entire filter assembly should be cleaned once a week. -
Page 17: Positioning The Appliance
How to Keep Your Dishwasher in Shape When not in Use for a LongTime After Every Wash It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside. -
Page 18: Cold Water Connection
Water Connection Water Connection Cold Water Connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. -
Page 19: Start Of Dishwasher
How to Drain Excess Water From Hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. -
Page 20: Troubleshooting Tips
9.Troubleshooting Tips 9.Troubleshooting Tips Before Calling for Service Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible CausesWhat to Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other start circuit breaker acted appliances sharing the same circuit with the dishwasher... -
Page 21: Error Codes
Problem Possible Causes What to Do The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. are not clean The program was Select a more intensive program. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. -
Page 22: Technical Information
Technical Information Technical Information Height : 845mm Width : 598m m Depth : 600mm with the door closed Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 15 place settings... - Page 24 ILVE Dishwasher Installation and Operating Instructions template pages.indd 2 1/05/2015 9:16 am...
- Page 25 OPEN 24 ILVE ACCESSORIES ONLINE SHOP For a wide range of coffee machines, pods, and other ILVE accessories at the click of a button shop.ilve.com.au ILVE Dishwasher Installation and Operating Instructions template pages.indd 3 1/05/2015 9:16 am...
- Page 26 Post: Locked Bag 3000, Annandale, N.S.W 2038 deterioration of parts and accessories and glass P: 1300 MY ILVE (694 583) breakage); (b) use for purpose for which the ILVE product was not WARRANTY REGISTRATION sold or designed; Your ongoing satisfaction with your ILVE product is (c) use or installation which is not in accordance with any specified instructions for use or installation;...
- Page 27 Last Name: First Name: Address: State: Postcode: Email: Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ILVE on 1300 85 64 11)
- Page 28 NOTES ILVE.COM.AU 01052015 You can now find us on: facebook.com/ILVEappliances twitter.com/ILVE_appliances youtube.com/ILVEappliances livewithilve.com ILVE Dishwasher Installation and Operating Instructions template pages.indd 7 1/05/2015 9:16 am...
- Page 29 Australia National Telephone Number 1300 MYILVE (694 583) New Zealand Telephone Number 0508 458 369 ILVE showrooms are open daily from 9am-5pm and Saturdays 10am-4pm (WA by appointment only on Saturdays) ilve.com.au NSW & ACT (Head Office) VIC, TAS & SA WA &...
