- Page 1 DDVC/08 VR DDC/08 VR FB00085-EN USER MANUAL DDVC/08 VR - DDC/08 VR...

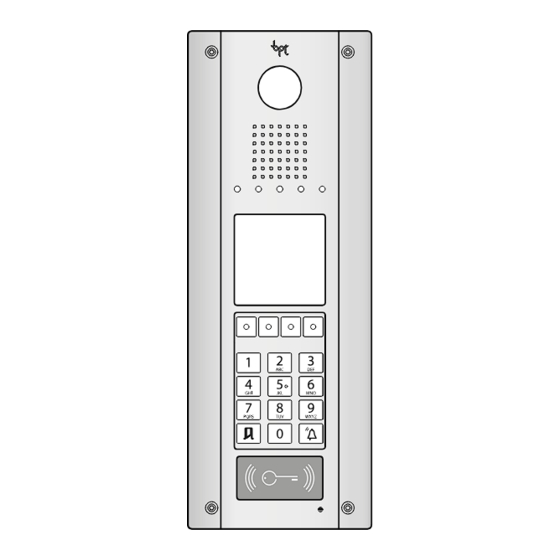

- Page 2 Functions Surveillance camera lens; Speaker; Warning LEDs: Red - Call in progress Green - Door open Yellow - Conversation in progress Blue - System busy Display; Function Keys; Keypad; RFID Code Reader; ...
-
Page 3: System Busy
Main Warnings Call in progress CALL Call Forwarded Door release Program. impianto Lingua DOOR OPEN Attendere Program. impianto Door Lingua Open Attendere Conversation in progress Program. impianto Lingua TALK TALK Attendere Program. impianto Lingua Attendere PQRS WXYZ Program. impianto System busy Lingua Attendere BUSY... - Page 4 Activating entry panel from receiver Call with code to internal receiver To call an internal receiver you must key in the call code asso- ciated to it then press the (B, C, D). Call codes can be made up of WELCOME between 1 and 8 digits.
- Page 5 play and then it will go back to the initial screen A. ABSENT TALK The appearance of the word [TALK] J and lighting up of the shows that the user be- ing called has answered and is in conversation. If the user being called activates DOOR OPEN the solenoid lock, the words [DOOR OPEN] will appear on...
- Page 6 Ascending search (from A to Z) From the [USER SEARCH] USER SEARCH Select call screen press the A Z key C to ANGELINI A to Z Search BIANCHI be able to display the names in Free search COMASCHI Z to A Search ascending order.
- Page 7 The search functions can only be used if the entry panel has been programmed to display the user names. Call with Block Search A search by block can be carried out via suitable programming using the PCS/XIP tool. icon will appear on the main screen and it will no longer be possible to perform a descending search Z A.
- Page 8 If the concierge is busy on another conversation E or is BUSY ABSENT absent F the display will show the relevant messages and then will go back to the initial screen The appearance of the word [TALK] G on the screen and TALK HOLD ON lighting up of the LED...
- Page 9 Opening door with code To open the door press the key A, enter the access code B (4-8 figures) and press the key again. If the code is valid, the [DOOR OPEN] symbol will appear on the display C, the LED will light , a confirmation beep will DOOR OPEN sound, and it will be possible to...
- Page 10 Timed door opening In systems where this function has been programmed, in the DOOR OPEN time period set, it is possible to open the door simply by press- key A: the LED will ing the light up , a confirmation beep will sound and it will be possible to go in B.
- Page 12 Came S.p.A. Via Martiri Della Libertà, 15 Via Cornia, 1/b - 1/c 31030 Dosson di Casier 33079 Sesto al Reghena Treviso - Italy Pordenone - Italy (+39) 0422 4940 (+39) 0434 698111 (+39) 0422 4941 (+39) 0434 698434 www.came.com...
