Instruction Manual
ERGOMETER SFE-009/2
Fitness I Design I Interior

Advertisement

loading
Need help?

Need help?

Do you have a question about the SFE-009/2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stil-fit SFE-009/2

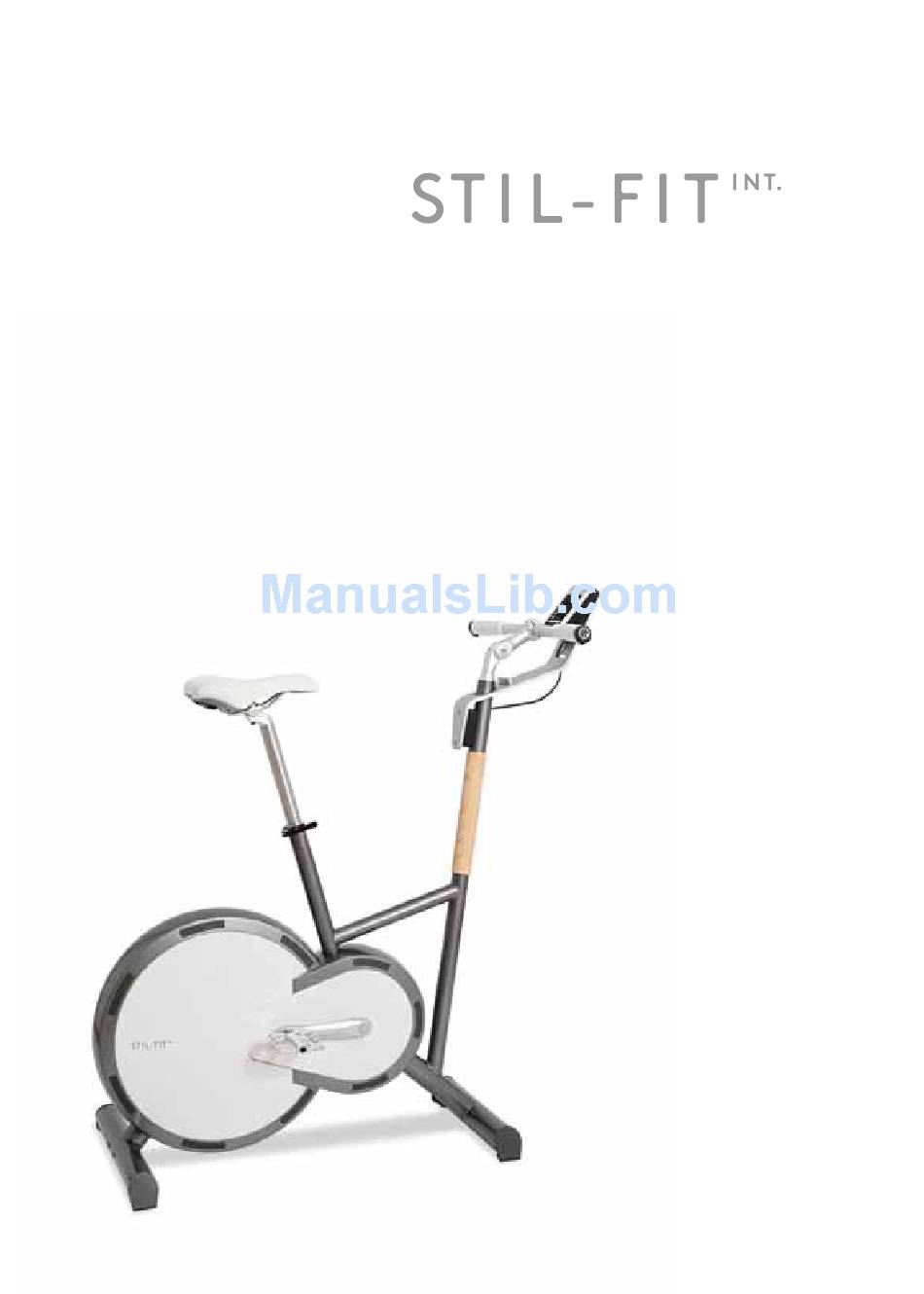

  • Page 1 Instruction Manual ERGOMETER SFE-009/2 Fitness I Design I Interior...
  • Page 2 Assembling the Cockpit The STIL-FIT ergometer is delivered almost fully assembled. You only have to connect one cable, tighten one screw at the front post and insert the seat post. Step 1 Connect the cable at the front tube. The easiest way is to place the cockpit at the floor (see picture)
  • Page 3 Height adjustment of the handle bar Loose the screw at the top until the handle bar can be turned. Adjust the height max. 40 mm. Tighten the screw very well after adjustment. Angle adjustment of the stem Loose the screw at the right side until the toothed ring snaps outside.
  • Page 4 Assembling of the transportation wheels The transportation wheels can be mounted optionally at the back of the frame. Adjustable feet The STIL-FIT ergometer comes with four adjustable feet to guarantee a firm stand. Special equipment You can equip the Ergometer with di erent acces- sories.
  • Page 5 TRAININGS COMPUTER: The Ergometer is controlled by a 4,3” touch screen monitor. The operation is very easy and self-explanatory. Start immedi- ately with the quick start or register a user and select a program. By starting to pedal the trainings computer is activated. It turns o automatically after your workout.
  • Page 6 Trainings Screen The user interface is self-explanatory and easy to use with a clearly arranged operator guidance system. Using the "Quick start" you start immediately with your workout. You can find our other preselected programs in the ‚program selection’. The trainings computer gives you the opportunity to store the training-data for up to four users.
  • Page 7 Start Screen Quick Start allows you to start immeditely with program Manual Screen: Program selection...
  • Page 8 Screen: Pre-selection Screen: Data Base...
  • Page 9: Technical Data

    You will find the socket at the backside of the housing. If the batteries are defect they can be replaced. Unscrew the battery rack and replace the batteries. Ergometer SFE-009/2 Commercial induction brake system with built-in generator 50 - 400 watt 4,3“ touch screen monitor...
  • Page 10 17° 1150 width of cover length crank175 distance pedal...
  • Page 11 STIL-FIT Produkte RowerSFR-015 Fluid Technology from FirstDegreeFitness Adjustable resitance by patented two-chamber tank system Watertank 9 - 17 liter Suitable for commercial use 4,3“ TFT touch screen monitor Manual mode Heart rate control Pace Race program Data storage No external power...
  • Page 12 STIL-FIT International GmbH Friedenstrasse 16A 81671 München Germany Tel: +49.89.13 93 60 40 Fax: +49.89.13 93 60 43 info@stil-fit.com www.stil-fit.com...
