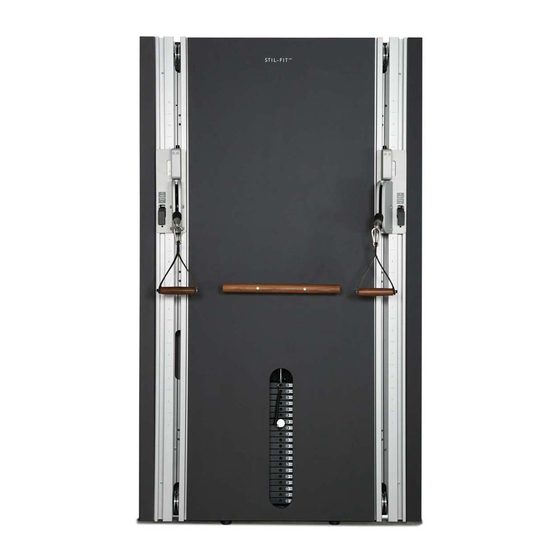

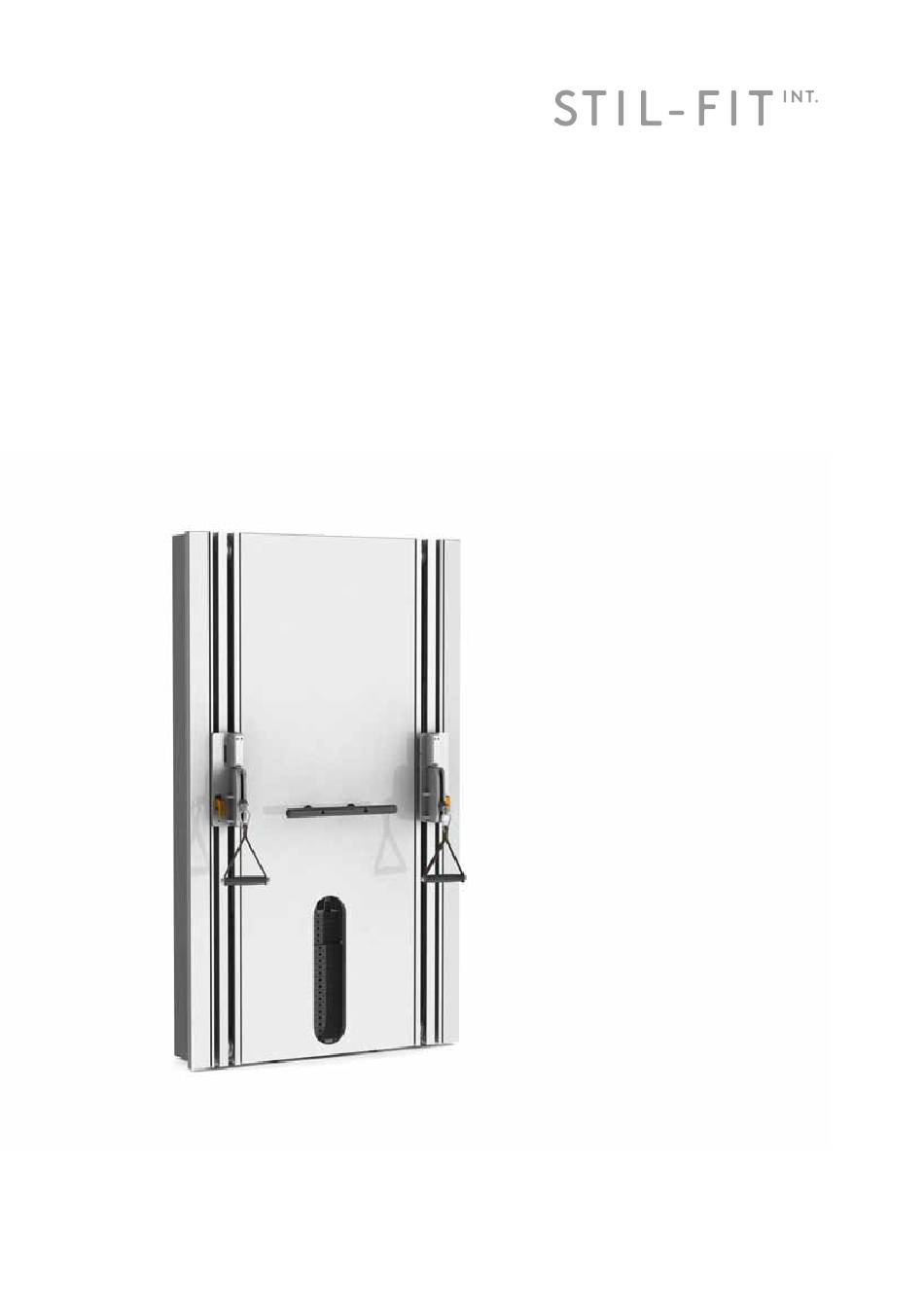

- Page 1 Assembly instruction STIL-FIT Functional Trainer ESSENCE PURE Fitness I Design I Interior...
- Page 2 Important The functional trainer is already preassembled. Don‘t change the position of the pulleys and the pull out unit at the front. Remove the cable ties not before the assembly is completed. Please follow all steps as shown. mounting plate The frame has 4 mounting plates to fix the unit to the wall.
- Page 3 cross bar Assembly of the weight plates Remove the cross bar and the selector bar The weight plates can be slided from top on to the tubes. Start with the 3 cartons A - totally 14 plates. Note! selector bar The grooves for the sticker are at the right side.
- Page 4 Put on all stickers of the weight plates. Function test Stick the silver pin into the second weight plate and pull at the front unit. If the pin cannot be sticked into the selector bar smoothly the cabls are too tighten. At the left top side of the frame there is an adjustable screw to adjust the length of the cable.
- Page 5 Assemble the side panels with M6 screws from the rearside. The right and left panel is identical. Assemble the side panels to the frame. The velcro shows to the wall side. Assemble the handels Check if verything works smoothly. Check if the front unit can be fixed well by the clamp. Try to move by hand the unit downwards.
