SLIK PRO 700DX Operating Instructions
Hide thumbs Also See for PRO 700DX:

Advertisement

Quick Links

Inverting the Center column

Caution
Always remove the Pan head when replacing the
Remove the Rubber stopper from the Bottom of
Center column.
the Center column.
Caution
Make sure to re-attach the Rubber stopper, in
Insert the Center column from the lower side of
order to prevent the Center column from falling
Main body, and tighten the Locking collar and
out.
the Center column stopper.

How to change the Pan head attachment screw

U3/8
U 1/4
Plate cover
The Pan head fixing screw is reversible for either large thread (U3/8) or
small thread (U1/4).
1. Move the Plate cover down.
2. Loosen the small screw in about three turnings with an Allen wrench
(2mm width).
3. Loosen the plate without removing the small screw.

Opening the Tripod legs

Caution
Be sure to open all three legs completely in order to prevent camera
shakes, or accidental tip overs caused by unstableness.
SLIK CORPORATION
853 Kayama, Hidaka city, Saitama 350-1231, Japan
Phone 81-42-989-2141, Fax. 81-42-985-0210 ©2005
Loosen the Center column stopper and the
Locking collar, and then pull out the Center col-
umn.
By inverting the Center column, it is possible to
do copy, and close up work.
Follow the same procedures in order to replace
with optional Short center column.
8mm
U3/8
Small screw
U1/4
4. Loosen the Pan head fixing screw and pull it out. Then, screw it in
again after reversing top and bottom.
5. Adjust the height of screw in approx. 8mm above the plate and then,
tighten the small screw by an Allen wrench.
6. Put the Plate cover back.

Care of the Tripod

・DO NOT apply any grease or oil to this product.
・Clean with a mild detergent and a soft cloth only.
・DO NOT use close to flame. Avoid extreme heat.
THINNER
OIL
Printed in Thailand.
R
PRO 700DX
Operating Instructions

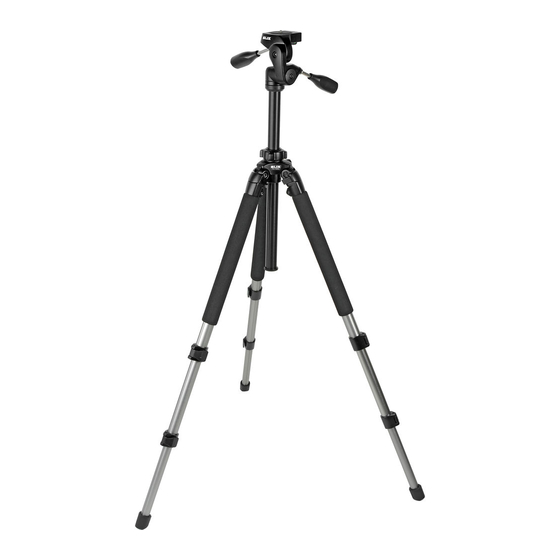

Thank you very much for choosing SLIK PRO 700DX Tripod.
SLIK Corporation has designed your tripod to be a sturdy, rugged,
dependable product that will provide you with many years of satisfac-
tory use.
Please take a few moments to read this operating instruction carefully
before use so that you can take full advantage of your Tripod's many
fine features.
Retain this operating instruction in case you might want to refer back to it.
Caution
This caution icon refers to information pertaining to important safety
procedures in preventing injuries, or damages which may occur as a
result of mishandling this product.
Prohibition
This prohibited icon refers to information pertaining to prohibited con-
tents. Please refer to instructions closely to avoid accidents.
8339E-3
Components
Quick release platform
Pan head
Center column
locking collar
Center column
Center column stopper
3-Position leg angle
adjustment locks
Soft grip
Leg
Leg lock
Rubber stopper
Rubber leg tip
Leg lock lever
Caution
Soft Grip is consumption and cannot be used permanently.
Please replace it whenever ragged.

Equipment that can be used with this tripod

Caution
Prohibition
This product is designed to withstand equip-
Equipment with uneven weight distribution
ment up to 6 kgs. Please do not use equipment
should not be panned by the Quick release
exceeding this limit.
platform.
A loose mounting screw may go unnoticed, and
result in a sudden accidental fall.

Specification

Length folded
Max. operating height 1900mm
Max. center column ext. 380mm
Weight
Pan head
1/4" Camera mounting screw
Camera platform
Dual axis bubble
levels
Main body
Pan & Tilt handle
Options
BALL HEAD 800
PRO 700DX
QUICK SHOE (U3/8")
SHORT CENTER COLUMN
Cat. No. 618-340
Cat. No. 615-312
THREAD ADAPTER SET
Cat. No. 618-331
8mm
11mm
(1/3")
(5/12")

Carrying the tripod

Caution
Prohibition
Carrying a tripod with a camera left on can
result in unexpected accidents. We therefore,
recommend that you remove your camera
when carrying the tripod.
760mm
(29 11/12")
(74 5/6")
(14 11/12")
3.53kg
(7lbs 13oz)
Detach proof groove
Release button
Locking lever
Vertical tilt handle
Panning lock knob
Handle connecting screw
Pan head
attachment screw
Plate cover
Rubber stopper
