Pump Set-up

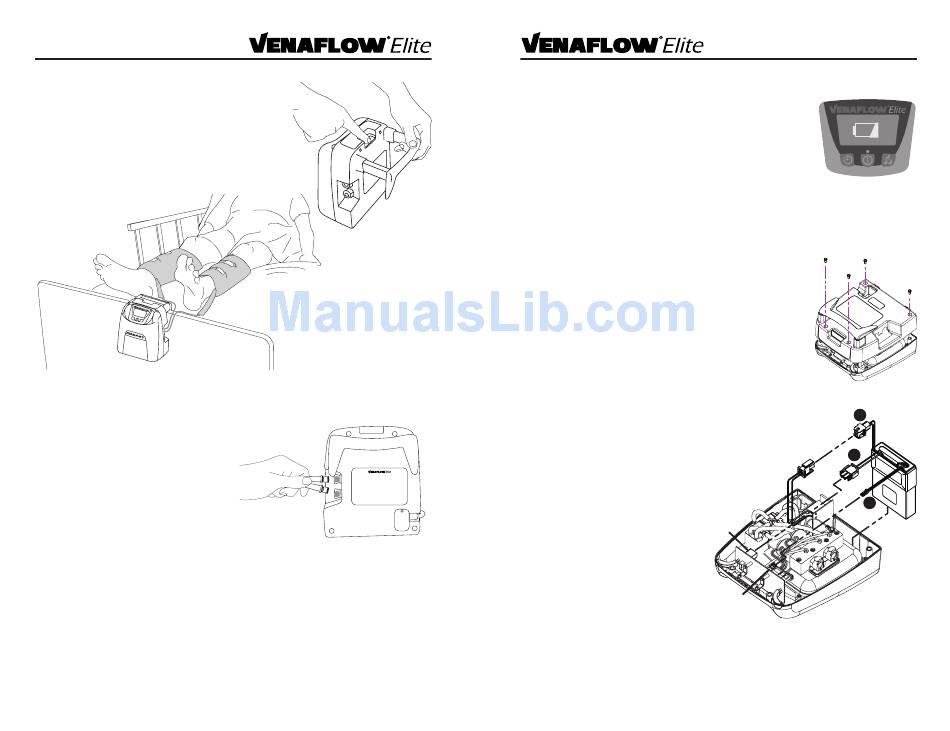

1) Hang pump from bed frame (foot of
bed), bed rail, or rest on floor or table.
To use the telescoping bed hanger,
press release button on the back of the
device and gently pull out bed hook to
the desired width.
2) Connect tube assembly to the pump.
Make sure tubing connectors lock
securely into pump connectors.
3) Plug in the power cord to electrical
outlet.
6
Low Battery Alarm
1) When there is approximately 15 minutes of charge left in the
battery, an audible alarm will beep 3 times every minute.
When there is less than approximately 5 minutes of charge
left, a consistent beep will sound and a larger version of the
battery icon will appear on the graphical display and it will
alternate with the text "LOW BATTERY".
2) When either battery alarm occurs, immediately plug device in to electrical outlet
to begin replenishing the charge.
3) If the device is not plugged in during the alarm period, the device will shut down
and will fail to power on again until the device is plugged in again.
Installing or Replacing the Battery
1) Remove power cord. Refer to the 'Instructions for
installing/removing/replacing the power cord' section.
2) Remove back cover of device by removing 4 screws
using TORX (star) T20 driver.
3) Remove power supply connector from board connector J4.
4) Install battery into the device below the reservoir.
5) Attach power supply connector to battery connector #1.
6) Attach battery connector #2 to J4 connector on board.
7) Attach battery connector #3 to J2 connector on board.
8) Close back cover of device and fasten
screws.
9) Reinstall the power cord and power
cord cover per previous instructions.
10) Plug in the system.
11) Hold down single/dual leg operation
button and then press the power
button to turn on the system. LCD
back light will turn on, with blank
LCD.
12) Release the single/dual leg operation
button.
13) Press and release counter reset
button.
14) Turn off the system by pressing the
power button. Battery will be configured at this point.
15) Turn on the system. After the cuff detection cycle, the system should display a
battery icon on the right hand side of the LCD.
16) Leave the device plugged in for at least 4 hours to allow battery to charge. The
battery will charge whether the system is turned on or off.
1
2
3
J4
J2
11
