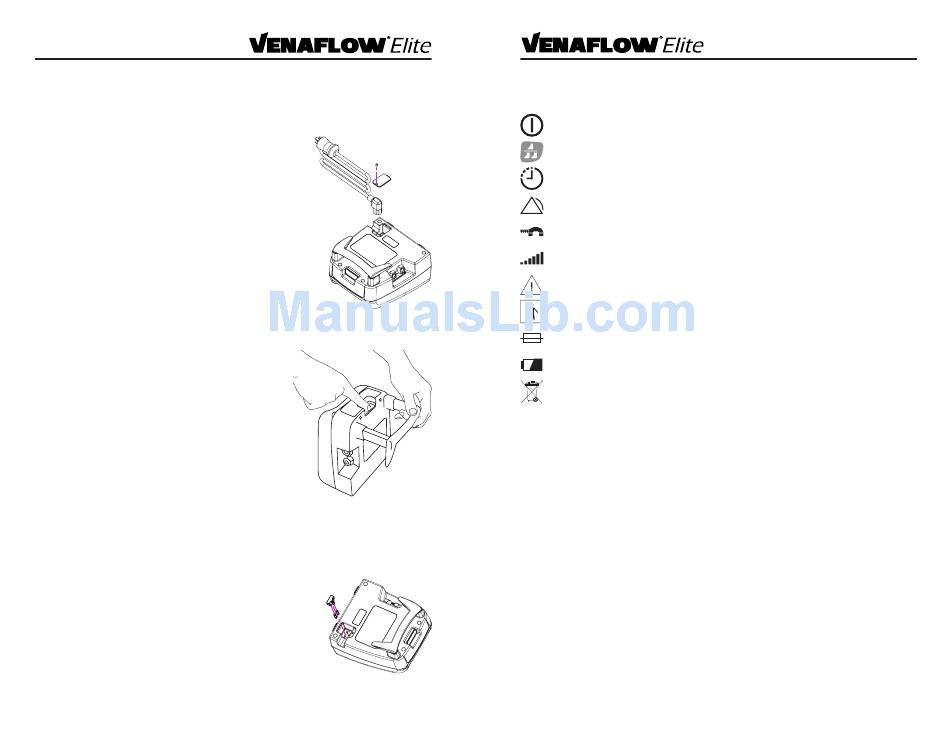

Replacement Kit Instructions
Replacement kits may be ordered through customer care.
Instructions for installing/removing/
replacing the power cord.
1) Make sure system is powered off and unplugged.
2) Remove the screw retaining the power cord cover
using a 1/16" hex driver.
3) Remove the power cord cover.
4) Remove the power cord.
5) Install new power cord and reassemble power cord
cover.
Telescoping Bed Hanger Replacement
1) The telescoping bed hanger piece can be
removed and replaced if necessary.
2) To replace the bed hanger, hold down release
button on the back of the system and firmly pull
bed hanger out of the body of the system.
3) Discard the broken or ineffective hanger. To
install the new bed hanger, slide the new hanger
back into the body of the device and set at
desired length.
Instructions for replacing fuses
1) Remove the power cord. Refer to the 'Instructions for
installing/removing/replacing the power cord' section.
2) Remove fuse holder from power entry module.
3) Remove fuses from fuse holder.
4) Replace any blown fuses with 250V, 2A, IEC fast acting
5X20mm fuses.
5) Reassemble fuse holder and replace power cord per
previous instructions.
12

Symbol Definitions

Power on/off button and alarm reset
Dual or Single leg operation
Compliance monitor reset
Tube alarm
Call for service
Inflation cycle indication (Bars indicate cuffs are inflating)
See VenaFlow Elite System operator's manual
Safety classification: Class 1 BF
250V 2A IEC FA 5X20MM
Battery
Separate collection for electrical and electronic equipment. Remove and dispose of
batteries in accordance with local or national requirements.
5
