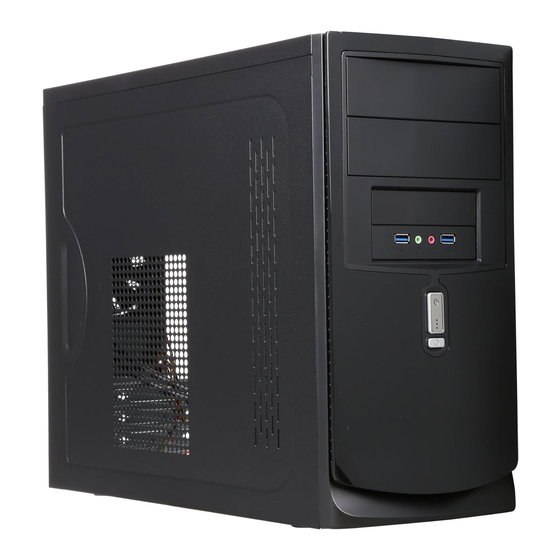

Rosewill i3-397 Installation Manual

Left Side Panel
Front I/O Panel User Manual

Connecting the USB3.0 Function

1 2
Vbus
Vbus IntA_P1_SSRX-
IntA_P2_SSRX-
IntA_P1_SSRX+
IntA_P2_SSRX+
GND
GND
IntA_P1_SSTX-
IntA_P2_SSTX-
IntA_P1_SSTX+
IntA_P2_SSTX+ GND
GND
IntA_P1_D-
IntA_P2_D- IntA_P1_D+
IntA_P2_D+
ID
19 20
AUDIO A ZALIA Function
2
1
AUD GND
PORT1 L
PRESENCE#
PORT1 R
SENSE1_RETURN
PORT2 R
KEY
SENSE_SEND
SENSE2_RETURN
PORT2 L
i3-397 INSTALLATION GUIDE
Right Side Panel
1. Make sure your motherboard supports USB3.0 connection.
2. Connect the USB3.0 cable to the available USB3.0 port on your computer.
3. If your computer does not have USB 3.0 capability. you can plug the USB3.0 cable
into any available USB2.0 port by convertor cable(optional) , but operates at the
USB2.0 full speed(480Mb/s).
4.T his USB3.0 header can support two USB3.0 port.
Please consult your motherboard user manual, Select the motherboard which used
HD A udio (Azalia), (be aware of that your audio supports A C'97 or HD A udio )
or it will damage your devics.

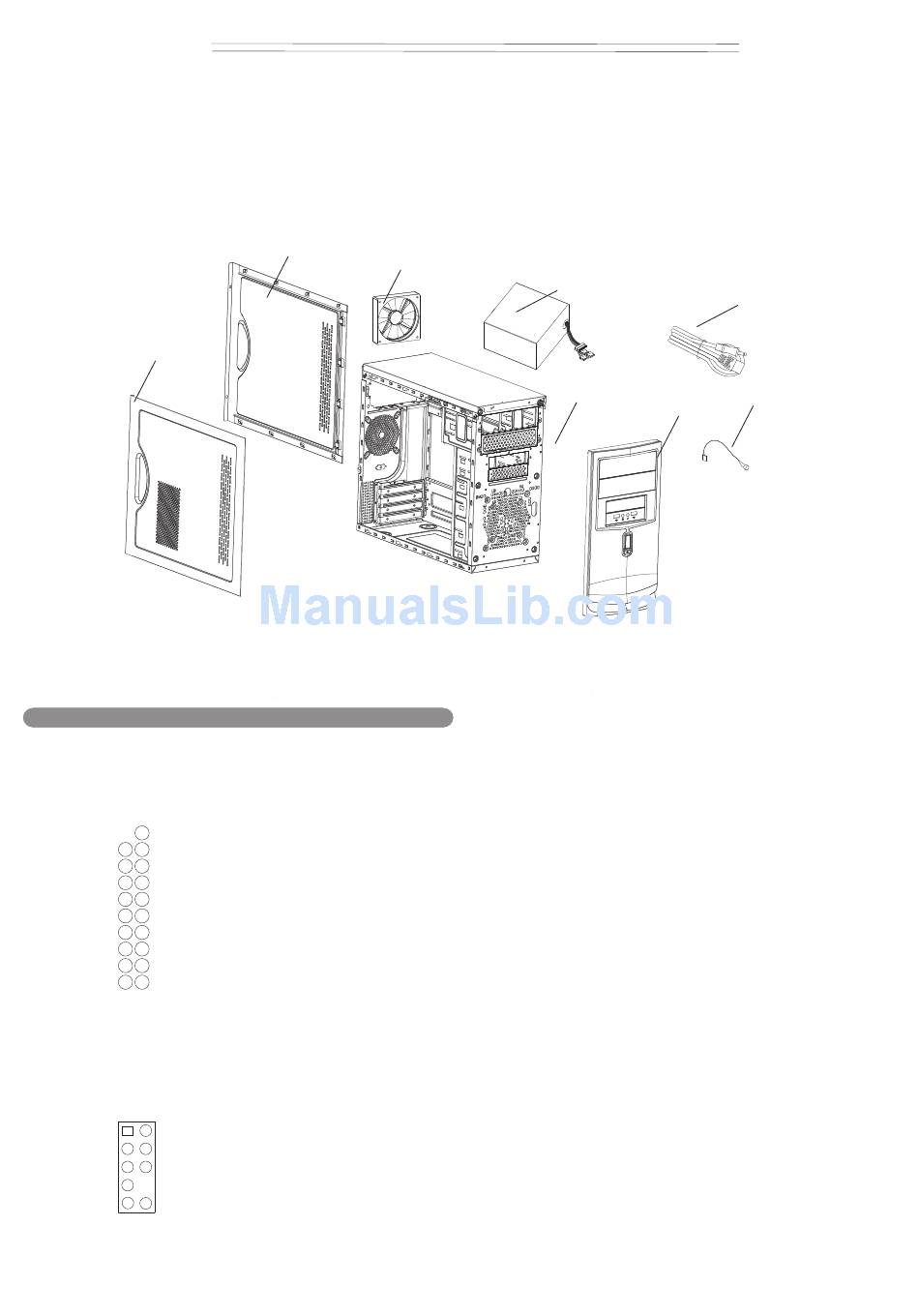

Fan
Power Supply
Power Cord
Case
Panel
B u z z e r
