Desa 80-CC Owner's Manual

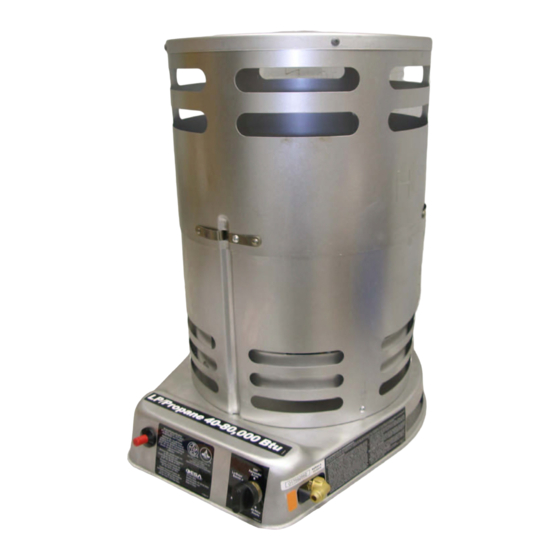

Propane construction convection heater
Hide thumbs Also See for 80-CC:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
PROPANE CONSTRUCTION CONVECTION HEATER
IMPORTANT: Read and understand this manual before
assembling, starting or servicing heater. Improper use
of heater can cause serious injury. Keep this manual for
future reference.
GENERAL HAZARD WARNING:
Failure to comply with the precautions and instructions
provided with this heater, can result in death, serious
bodily injury and property loss or damage from hazards
of fire, explosion, burn, asphyxiation, carbon monoxide
poisoning and/or electrical shock.
Only persons who can understand and follow the instruc-
tions should use or service this heater.
If you need assistance or heater information such as an in-
structions manual, labels, etc. contact the manufacturer.
Safety Information ............................................... 2
Unpacking ........................................................... 3
Theory of Operation ............................................ 3
Product Identification ........................................... 3
Ventilation ........................................................... 3
Propane Supply ................................................... 4
Installation ........................................................... 4
Operation ............................................................. 5
Storage ................................................................ 7
OWNER'S MANUAL
VARIABLE 40-80,000 BTU/HR
75-200,000 BTU/HR

TABLE OF CONTENTS

Save this manual for future reference.
For more information, visit www.desatech.com
Maintenance ........................................................ 7
Troubleshooting ................................................... 8
Replacement Parts .............................................. 9
Technical Services ............................................... 9
Accessories ......................................................... 9
Warranty and Repair Service ............................ 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80-CC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Desa 80-CC

Summary of Contents for Desa 80-CC

  • Page 1: Table Of Contents

    PROPANE CONSTRUCTION CONVECTION HEATER OWNER’S MANUAL VARIABLE 40-80,000 BTU/HR 75-200,000 BTU/HR IMPORTANT: Read and understand this manual before assembling, starting or servicing heater. Improper use of heater can cause serious injury. Keep this manual for future reference. GENERAL HAZARD WARNING: Failure to comply with the precautions and instructions provided with this heater, can result in death, serious bodily injury and property loss or damage from hazards...

  • Page 2: Safety Information

    SAFETY INFORMATION Propane gas is odorless. An odor- Propane Gas: making agent is added to propane gas. The odor helps you detect a propane gas leak. However, the WARNING: This product odor added to propane gas may fade. Propane gas contains and/or generates may be present even though no odor exists.

  • Page 3: Unpacking

    SAFETY INFORMATION Continued Outer Shell Ignitor Button Ball Valve Control Knob Button Figure 1 - 200,000 Btu Model Shown 116557-01A www.desatech.com...

  • Page 4: Installation

    1. Care must be taken to protect hands during this step. Lift outer shell straight up as shown in Fig- ure 2, until all three clips engage slots in lower shell. Screw holes will line up at this point. 2. Lock clips into place with 3 screws as shown in Figure 2.

  • Page 5: Propane Supply

    Hose Propane Supply Valve Propane Tank Regulator Fitting Figure 3 - Regulator Position Off/ Apagado/ Arrêt Lo/Baja/ Basse Med/ Media/ Moyenne Hi/Alta/ Haute 116557-01A www.desatech.com...
  • Page 6 OPERATION Continued 8. When burner remains lit, set heater at the desired heat level by slightly depressing the control knob Yellow and turning it counterclockwise to the MED or Flame HI settings (see Figure 5, page 5). 9. If burner goes out, turn off gas. Slightly depress and turn control knob fully clockwise to OFF.

  • Page 7: Storage

    OPERATION STORAGE Continued CAUTION: Disconnect heater 4. When the pilot lights, continue to hold the but- from propane supply tank(s). ton depressed for 30 seconds, then release. 5. If pilot goes out, wait 5 minutes and repeat the lighting procedure. CAUTION: Be careful not to 6.

  • Page 8: Troubleshooting

    TROUBLESHOOTING WARNING: Never service heater while it is plugged in, connected to propane supply, operating or hot. Severe burns and electrical shock can occur. OBSERVED FAULT POSSIBLE CAUSE REMEDY Burner fails to light 1. Propane supply valve closed 1. Open propane supply valve on propane tank(s) slowly 2.

  • Page 9: Specifications

    Do not substitute or use generic You can also visit DESA Heating Productsʼ Techni- parts. Improper replacement cal Service web site at www.desatech.com parts could cause serious or fa- ACCESSORIES tal injuries.

  • Page 10: Illustrated Parts Breakdown And Parts List

    ILLUSTRATED PARTS BREAKDOWN MODELS 80-CC, RCP80VC, REMCP80VC, SPC-80CC AND TC80VC www.desatech.com 116557-01A...
  • Page 11 PARTS LIST MODELS 80-CC, RCP80VC, REMCP80VC, SPC-80CC AND TC80VC This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 9 of this manual. PART NUMBER DESCRIPTION QTY. 113785-01 113781-01...
  • Page 12 ILLUSTRATED PARTS BREAKDOWN MODELS 200C, RCP200V(A), SPC-200C AND TC200V(A) www.desatech.com 116557-01A...
  • Page 13 PARTS LIST MODELS 200C, RCP200V(A), SPC-200C AND TC200V(A) This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 9 of this manual. PART NUMBER DESCRIPTION QTY. 113814-01 Pilot Assembly 113815-01 Hose Assembly, 10 foot 113777-01...

  • Page 14: Warranty And Repair Service

    List the heater model number and the date located in the lower right corner of this page. A service manual may be purchased from the address listed below. Send a check or money order for $5.00 (US) payable to DESA Heating Products.
