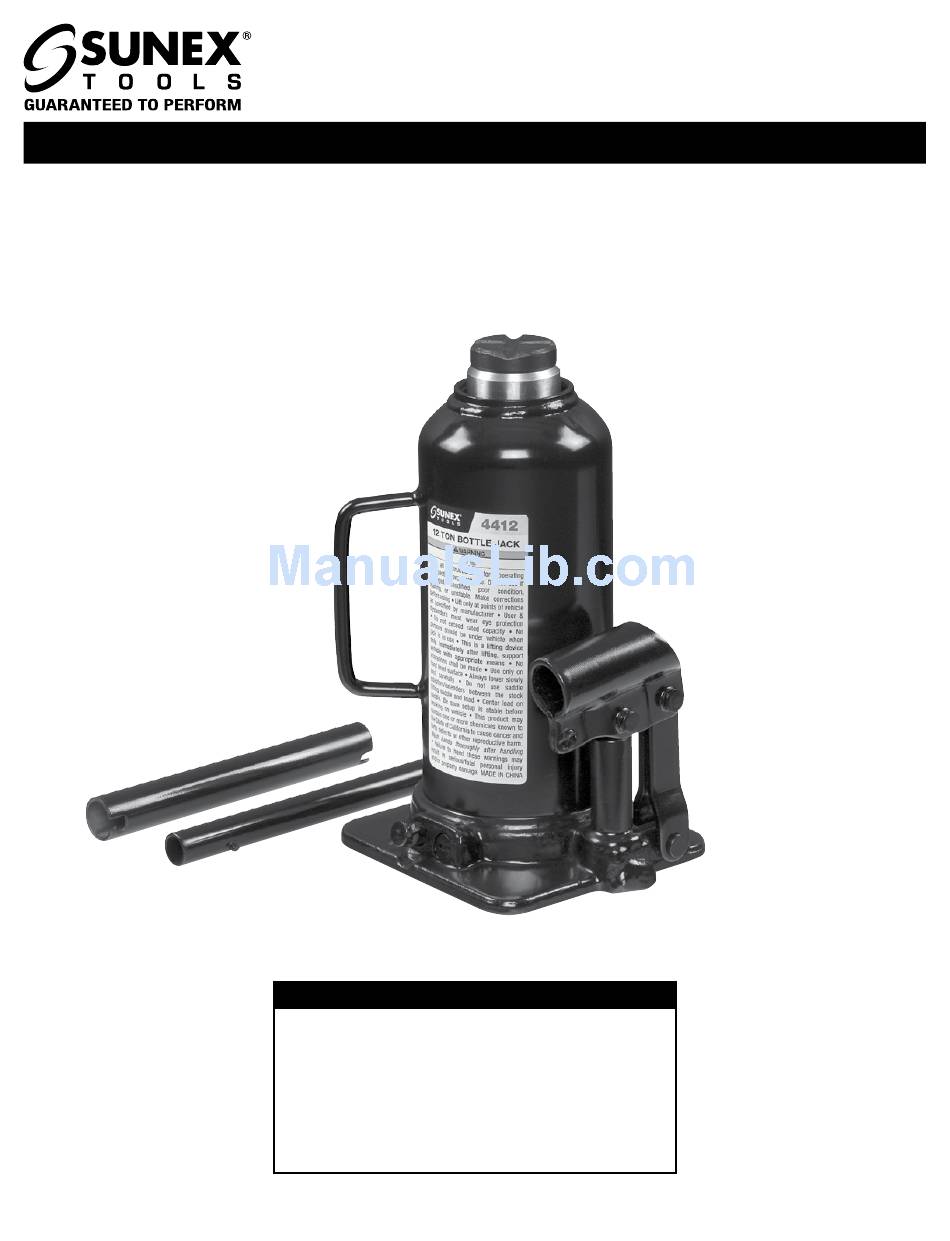

Sunex Tools 4412 Owner's Manual

12 ton bottle jack
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

OWNER'S MANUAL
CONTENTS:
Page
1

Specifications

2
Warning Information
3
Setup and Operating Instructions
4
Preventative Maintenance and Troubleshooting
5
4412 Exploded View Drawing and Parts List
6

Warranty Information

Complies with ASME PASE/2014 Safety Standard
4412
4412 - SPECIFICATIONS
Capacity ......................................................... 12 ton
Power Lift ........................................................... 9.3"
Closed Height .................................................... 9.1"
Raised Height .................................................. 18.3"
Base Size ................................................... 5.7" x 5"
Shipping Weight. .........................................16.1 lbs
1
4412
12 TON BOTTLE JACK
© Copyright 2016, Sunex Tools ®
12/14/16
