Summary of Contents for VeriSmart EcoWifi 750W

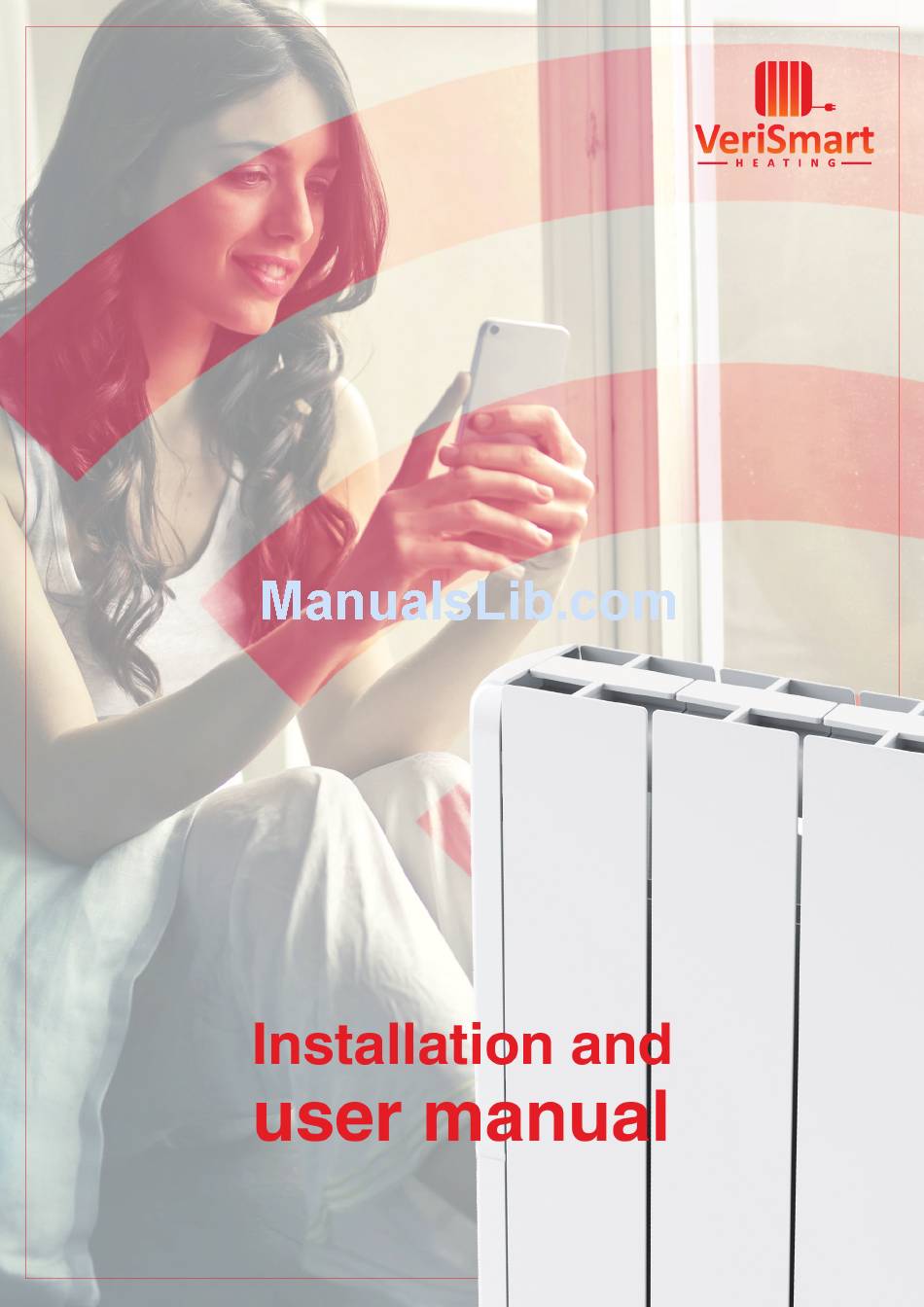

- Page 1 VER0006101V00...
-
Page 2: Table Of Contents
Index A. Presentation Recycling Very important B. How to use electric radiator Display C. Installation Before installing Connecting electricity supply Power supply D. Operating instructions Modes Adjust programmed temperatures Setting program and time/day Setting program Setting the time and day Keypad locking Advanced engineer settings Reset radiators... -
Page 3: Presentation
Installation and user manual A. Presentation First of all, we would like to thank you for having bought this product, we are confident that this will provide you with many years of use with full satisfaction. Before installing the heater, please read the following ins- tructions carefully. -
Page 4: Installation
Installation and user manual C. Installation Before installing Installation and startup of this appliance is extremely simple, however, you should read all the instruc- tions and recommendations detailed in this instruction manual and recommendations carefully, as the manufacturer will not be held liable for damage caused by non-compliance. Once the appliance is unpacked, the packaging must be removed responsibly since all the elements have been designed for recycling. -
Page 5: Adjust Programmed Temperatures
Installation and user manual - OFF. The radiator stays off. Press “mode” to change the operation mode. Example: In “Manual” mode press the key [+] and [-] to change the temperature In “Auto” mode when the temperature is modified temporarily, the change will be effective until the next heating period or the end of the day. -
Page 6: Setting Program And Time/Day
Installation and user manual -Change the temperature with the key [+] or [-]. -Press “mode” to modify other temperature modes or press “Prog” to exit. Setting program and time/day The radiator allows the creation of a weekly programmed schedule assigning to each hour one of the 3 available temperatures. -
Page 7: Setting The Time And Day
Installation and user manual Setting the time and day Day: 1. The display will flash on the current day, press [+] or [-] to change it. 2. Press “mode” to confirm the day. Hour: 1. The display will show the current time flashing, press [+] or [-] to change it. 2. -
Page 8: Reset Radiators
Installation and user manual 2. Press “Prog” for 5 seconds. 3.The advanced settings are: C1- Choose ºF or ºC. C2- Choose type of control. C3- Temperature Compensation. C4- Firmware. C5- Activation protection window open (turning off 30 minutes if a drop of 2.4 ºC is detected in 4 minutes), is indicated by the icon: C6- Adaptable heat anticipation. -
Page 9: F.a.q
Installation and user manual E. F.A.Q. Error messages -OC: no connection with temperature probe. -SC: Short-circuit at temperature probe. -Err: Relay or Triac in short-circuit. -Err2: Overload (power limit exceeded). -Err3: No load (or very low load, below 100W, check the connection to the radiators). -Err4: Temperature limit exceeded (>90ºC in the electronics). -
Page 10: Information
Installation and user manual INFORMATION 1. Very important!! - Read the installation manual prior to installation of this unit! - Read the user manual before putting this unit in operation! - Observe the warnings in the manuals! - The room you are installing the radiator in must adhere to the ventilation requirements! - Installation must be by an authorised person only! - The screws provided are not suitable for all types of walls, it’s the installers responsibility to ensure the correct screws are used for the type of wall the radiator in being fixed to. -
Page 11: Guarantee
- This heater is for domestic & light commercial use only; installation in any another enviroment voids this guarantee. - VeriSmart Heating Limited reserves the right to decide whether to repair or replace any defective part or to replace the entire heater. - Page 12 VeriSmart Heating Limited Postal Address: Unit 12085, PO Box 4336, Manchester, M61 0BW Email: info@verismartheating.com Call: 01484 213 151...
