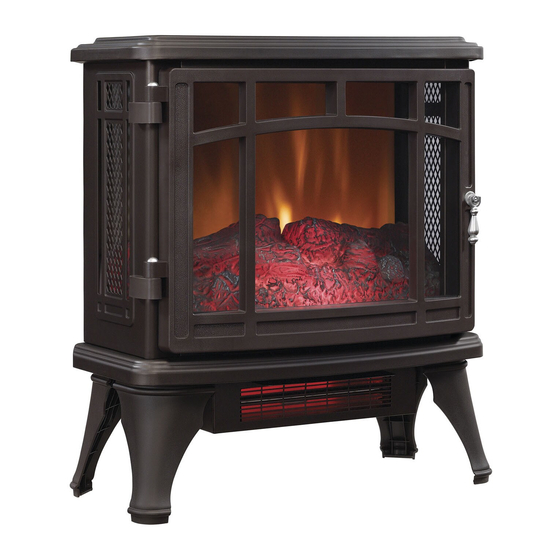

Duraflame DFI-8511-02 Assembly And Operating Instructions

MODELS: DFI-8511-01, DFI-8511-02, DFI-8511-03, DFI-8511-04,DFI-8511-05,DFI-8511-06
Go to www.tsicustomerservice.com for product warranty registration

ASSEMBLY INSTRUCTIONS

1
Leg
Bracket
MOUNTING THE LEGS
1. Align the 2 mounting tabs into the bracket (Fig 1)
2. Slide the legs outward to lock in place. The legs will snap into place
when correctly installed. (Fig 2)
3. Fasten the legs to the base using the included screws,1 per leg. If the
screw hole does not line up check that the legs are properly snapped
into place. (Fig 3)
REPLACING THE LIGHT BULB
1. Loosen Phillips head screws
and remove back panel.
3. Pinch this spring clip to
loosen. Gently turn and pull the
rubber grommet of the motor
shaft.
2
2. Remove back panel to access
light bulb
Light bulb retaining spring
4. Pull away the bulb retaining
spring, unscrew the old bulb,
and replace with a new 40w
candelabra bulb.
3
Spinner
Motor
Assembly
Light bulb
Pull
Pull
OPERATING INSTRUCTIONS
- POWER
•Use the power button to turn on or off the stove
from the remote or control panel.
- FLAME
•Use the + and - buttons to adjust the flame
brightness.
-HEATER
•Press the HEATER button to cycle through 1000W,
1500W and OFF.
•The heater will beep once when set to 1000W,
twice for 1500W, and three times for OFF.

PRODUCT SPECIFICATIONS

VOLTAGE
AMPS
WATTS
For Customer Service:
www.twinstarhome.com
888-674-7517
8:30 a.m.-5:30 p.m., EST, Monday-Friday
Note: When first running the heater there can
be an odor. This is normal, the heater has a
surface coating on the internal parts, for the
first several hours of operation the coating
reacts with the internal parts to permanently
protect them. The odor is safe; if you are
sensitive to the odor it is recommended
to run the heater in a well-ventilated area
until the odor dissipates.
Warning: This is an unvented, electric appliance.
DO NOT attempt to burn wood or manufactured
firelogs in or on this appliance or grate.
Distributed by
Twin-Star International, Inc. Under license.
duraflame™ and the duraflame flame
logo are trademarks of Duraflame, Inc.
Twin-Star International, Inc.
Delray Beach, FL 33445
Made in China • Printed in China
© 2014,Twin-Star International,Inc.
120 VAC, 60 Hz
12.5 Amps
1500 Watts
Made in China
Printed in China
