Power adaPter
reFereNCe GUIde
Model 100854
• Convertible DC plug tips
ensure proper polarization and fit
•
Selectable voltage output levels match your device's requirements
• Overload, overheat and over-current protection help ensure reliable operation
• Lifetime Warranty
1. Select the DC plug tip that fits into your portable device and
connect it to the output cable of the power adapter.
2. With the proper DC plug tip in place, connect the power adapter
to your portable device. (It's recommended that the portable
device be turned off.)
StandardS &
CertifiCationS
• FCC
• CE
general
• I nput: 100–240 V; 47–63 Hz
• Output: 12–24 V; max. 4 A; 70 W
MANHATTAN
All products mentioned are trademarks or registered trademarks of their respective owners.
100854_03_miniQIG.indd 1
inStructionS
SpecificationS
• V oltage/current settings (max.):
- 12 V / 4 A
- 15 V / 4 A
- 16 V / 3.5 A
- 18 V / 3.5 A
- 19 V / 3.5 A
- 20 V / 3.5 A
- 24 V / 2.9 A
offers a complete line of PC Components, Peripherals, Cables and Accessories.
®
Ask your local computer dealer for more information or visit us online at
www.manhattan-products.com
Copyright © MANHATTAN
Thank you for purchasing this MANHATTAN
Model 100854.
This lightweight device lets you obtain the power you need for your
notebook computer and most any other portable device. A complete
list of notebook computer compatibility is on the back of this sheet
and on the item's datasheet at www.manhattan-products.com.
3. Position the adapter's voltage switch to the appropriate setting.
4. Plug the adapter into an AC power outlet and check that the
red LED is lit.
5. Read the Operating Cautions on the back of this sheet, then
turn on the attached portable device.
phySiCal
• C able (combined length):
2.75 m (9 ft.)
• Dimensions: 58 x 36 x 115 mm
(2.3 x 1.4 x 4.5 in.)
• Weight: 345.9 g (12.2 oz.)
Power Adapter,
®
paCkage ContentS

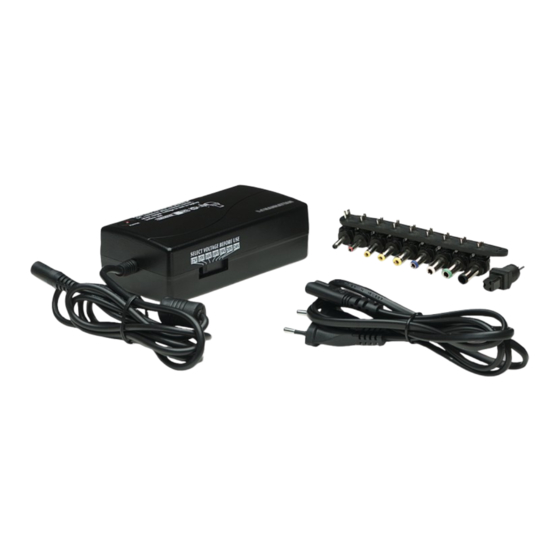

• Power Adapter
• 10 DC plug tips
• Reference guide
MH-100854-miniQIG-0109-03
