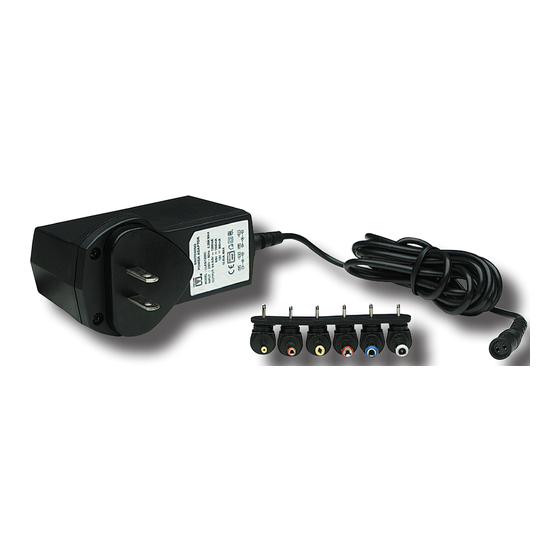

- Page 1 Models 100960 & 100977 Shown: NEMA version, Model 100977 MAN-100960/100977-UM-0509-03...
-
Page 3: Package Contents
Thank you for purchasing the MANHATTAN Universal ® Power Adapter, Model 100960 (Europlug) or Model 100977 (NEMA). With 10 Watts and 6 adjustable output levels, this handy adapter provides a single, convenient AC source for most any portable device. Before using the power adapter for the first time, read the information in this manual so you’re familiar with the various... - Page 4 1. Set the voltage selector (right) to the position which is appropriate for use with the device to be connected to the power adapter. Typically, a sticker like the one shown below can be found on the device, indicating the voltage required for operation.
- Page 5 2. Choose whichever of the 6 included DC plug tips fits the power adapter input jack on the device to be powered. Typically, there is a diagram next to the jack indicating how the DC plug tip needs to be connected to the power adapter cable so the electrical polarity matches.
-
Page 6: Specifications
NEMA 1-15, ungrounded (Model 100977) • AC input: Model 100960: 100 – 240 V; 50 – 60 Hz Model 100977: 100 – 140 V; 50 – 60 Hz • DC output: 3 – 12 V; maximum 1200 mA; 10 W •... - Page 8 ® of PC Components, Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
