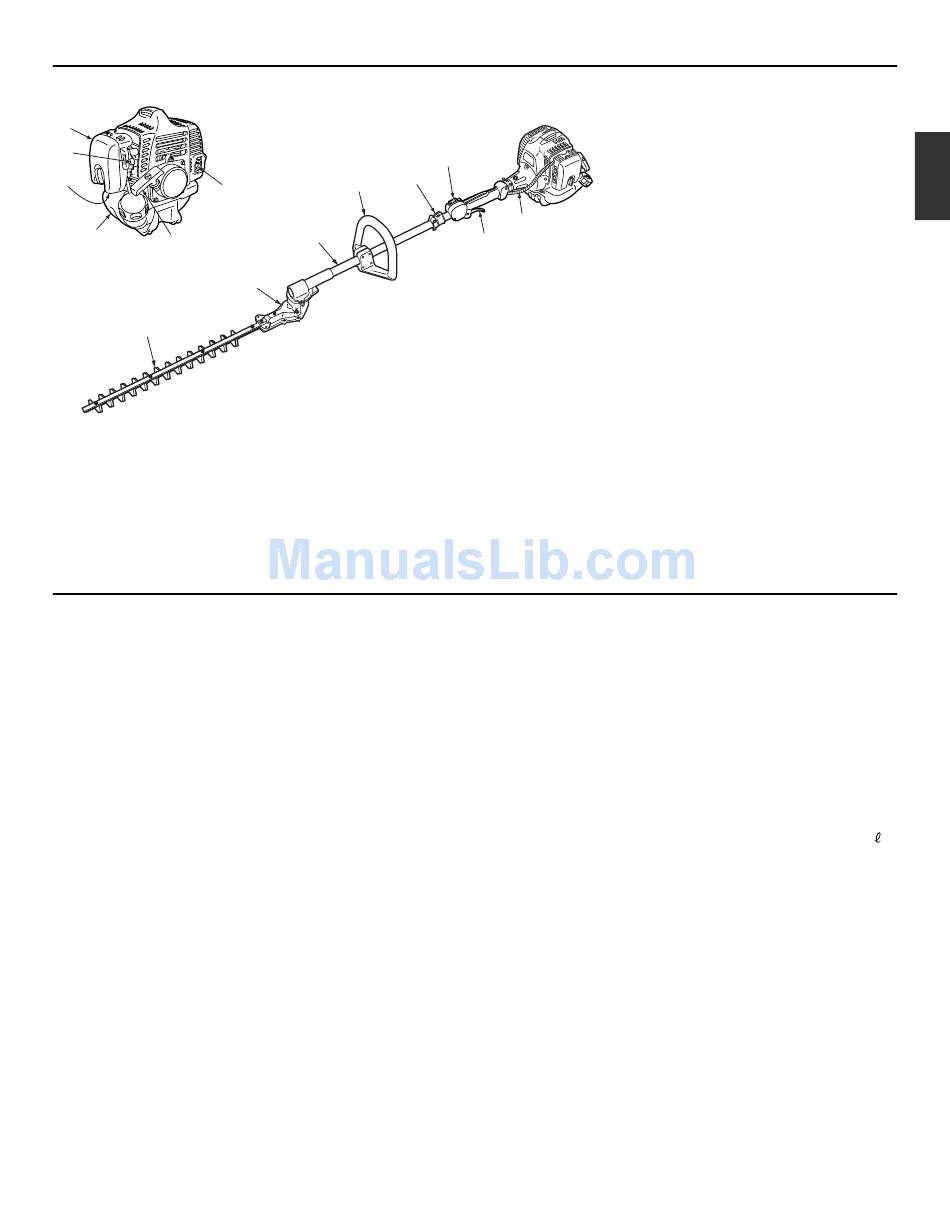

1. Parts location

14
13
12
9
11
10
7

2. Specifications

■ SRTZ2460F
Overall size ( L x W x H )····································································68.3 (1735) x 8.9 (225) x 10.0 (255) in. (mm)
Dry Weight w/o acc. ······················································································································13.6 (6.2) lbs (kg)
Engine
Fuel tank capacity ·························································································································21.3 fl.oz (0.63 )
Transmission ··················································································Centrifugal clutch, spiral bevel gear, cam crank
Reduction ratio ·····················································································································································4.0
Durability period·············································································································································300hrs.
Standard operation speed ················································································································6000~9000 rpm
Cutting head
Standard Accessories Shoulder strap ···············································································································1 pc
2
1
6
8
Type ·············································································Air cooled 2-stroke gasoline engine
Model······················································································································· GZ23N
Displacement ······················································································1.5 (23.6) cu-in (cm
Max. output ····························································1.15 Hp (0.858 kW) at 8000/min
Idle speed····························································································3000±200/min
Fuel ·························································································Mixture (Gasoline 50 : Oil 1)
Carburetor ······················································································Walbro Diaphragm type
Spark Plug ······································································································NGK CMR7H
Type ·························································································Reciprocating Double blade
Tooth ·······················································································································26 teeth
Pitch·········································································································1.38 (35) in. (mm)
Effective cut width··················································································16.5 (420) in. (mm)
Goggle···························································································································1 pc
Tool Kit ··························································································································1 pc
Blade Cover···················································································································1 pc
3
4
5
Specifications are subject to change without notice.
SRTZ2460F
1. Loop handle
2. Shoulder strap hanger
3. Stop switch
4. Throttle cable
5. Throttle trigger
6. Shaft tube
7. Blade
8. Gear case
9. Spark arrester
10. Starter knob
11. Fuel tank
12. Primer
13. Choke lever
14. Air cleaner cover
(rpm)
-1
-1 (rpm)
(when using RedMax genuine oil)
U
S
3 )
US-3
