9. Maintenance

Maintenance, replacement, or repair of the emission control device and systems may be performed by any
non-road engine repair establishment or individual.

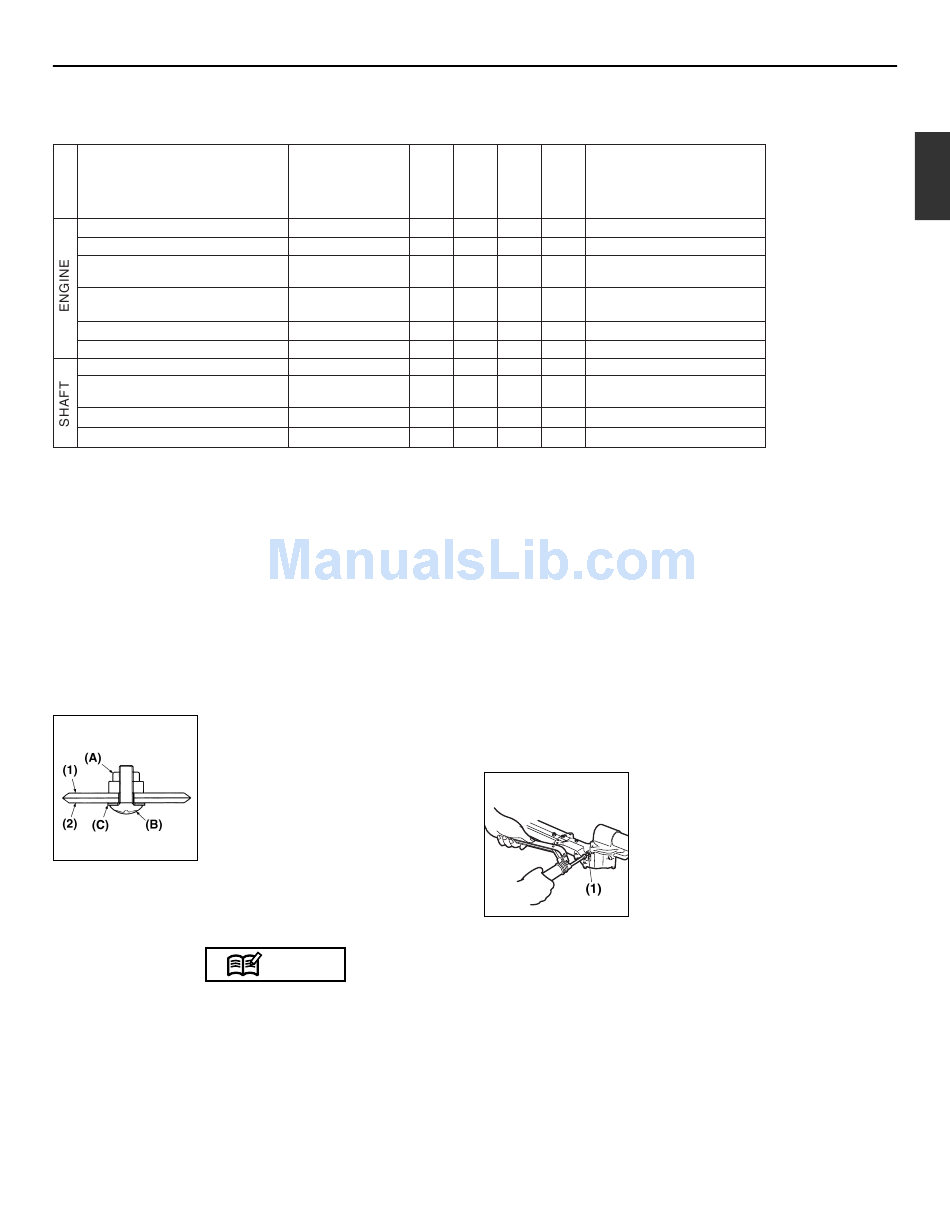

■ MAINTENANCE CHART
system/compornent
fuel leaks, fuel spillage
fuel tank, air filter, fuel filter
idle adjusting screw
spark plug
cylinder fins, intake air cooling vent
muffler, spark arrester, cylinder exhaust port clean
throttle lever, ignition switch
cutting parts
gear case
screws/nuts/bolts
■ BLADES (MA1)
• When refilling the tank or resting, it is
often a good idea to use the time to oil
the cutting blades.
• If a gap exists between the upper and
lower blades, follow the procedure
below to adjust them so that they fit
more closely together.
1. Loosen lock nut (A) as shown in the
diagram.
2. Tighten screw (B) fully, and then turn
MA1
one-third to one-half of a rotation
backward.
3. While holding onto the screw to keep it
in position, tighten the lock nut.
4 .Check to make sure that the flat
washer (C) is loose enough so that it
may be turned by pressing on it with a
finger.
(1) Upper blade
(2) Lower blade
• Screwing in the screw too tightly may
make it impossible for the blades to
move. Conversely, not screwing in the
screw tightly enough may make the
blades of the trimmer feel dull and
cause leaves and branches to become
caught in the blades of the trimmer.
procedure before hours
use
✔
wipe out
✔
inspect/clean
see ■ADJUSTING
✔
IDLING SPEED (p.11)
clean and readjust
plug gap
clean
✔
check operation
replace if
✔
something's wrong
grease
✔
tighten/replace
NOTE
every every every
25 50 100
hours hours note
after after after
✔
replace, if necessary
replace carburetor
if necessary
GAP: .025in(0.6~0.7mm)
✔
replace, if necessary
✔
✔
✔
✔
not adjusting screws
QUICK TIP
If the blades become so worn down that it
is no longer possible to eliminate the gap
between them, you should contact the
authorized RedMax servicing dealer from
which you purchased your RedMax
trimmer to have the blades resharpened
or replaced.
■ GEAR CASE
The reduction gears are lubricated by
multipurpose, lithium-based grease in the
MA2
gear case. Supply new grease every 25
hours of use or more often depending on
the job condition.
When adding lubricant, use a grease gun
to insert lubricant into the three grease
nipples located on the gear case. (MA2)
TYPE OF LUBRICANT TO BE USED
Always be sure to use #2 lithium
heat-resistant lubricant.
(1) Grease fitting
SRTZ2460F
U
S
