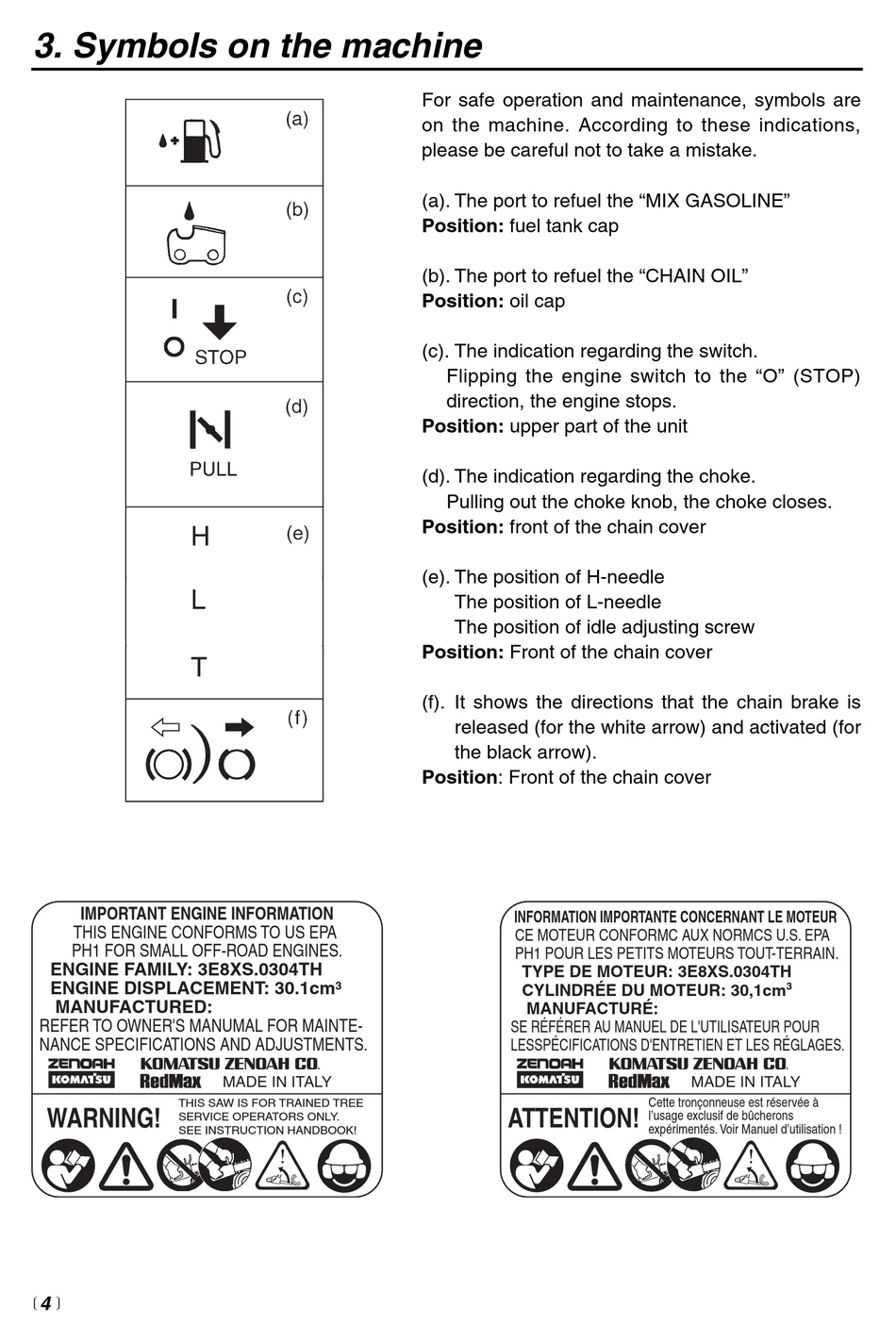

3. Symbols on the machine

IMPORTANT ENGINE INFORMATION
THIS ENGINE CONFORMS TO US EPA
PH1 FOR SMALL OFF-ROAD ENGINES.
ENGINE FAMILY: 3E8XS.0304TH
ENGINE DISPLACEMENT: 30.1cm
MANUFACTURED:
REFER TO OWNER'S MANUMAL FOR MAINTE-
NANCE SPECIFICATIONS AND ADJUSTMENTS.
THIS SAW IS FOR TRAINED TREE
WARNING!
SERVICE OPERATORS ONLY.
SEE INSTRUCTION HANDBOOK!
4 
3
MADE IN ITALY
For safe operation and maintenance, symbols are
on the machine. According to these indications,
please be careful not to take a mistake.
(a). The port to refuel the "MIX GASOLINE"
Position: fuel tank cap
(b). The port to refuel the "CHAIN OIL"
Position: oil cap
(c). The indication regarding the switch.
Flipping the engine switch to the "O" (STOP)
direction, the engine stops.
Position: upper part of the unit
(d). The indication regarding the choke.
Pulling out the choke knob, the choke closes.
Position: front of the chain cover
(e). The position of H-needle
The position of L-needle
The position of idle adjusting screw
Position: Front of the chain cover
(f). It shows the directions that the chain brake is
released (for the white arrow) and activated (for
the black arrow).
Position: Front of the chain cover
INFORMATION IMPORTANTE CONCERNANT LE MOTEUR
CE MOTEUR CONFORMC AUX NORMCS U.S. EPA
PH1 POUR LES PETITS MOTEURS TOUT-TERRAIN.
TYPE DE MOTEUR: 3E8XS.0304TH
CYLINDRÉE DU MOTEUR: 30,1cm
MANUFACTURÉ:
SE RÉFÉRER AU MANUEL DE L'UTILISATEUR POUR
LESSPÉCIFICATIONS D'ENTRETIEN ET LES RÉGLAGES.
ATTENTION!
3
MADE IN ITALY
Cette tronçonneuse est réservée à
l'usage exclusif de bûcherons
expérimentés. Voir Manuel d'utilisation !
