AVTP Model Tripod

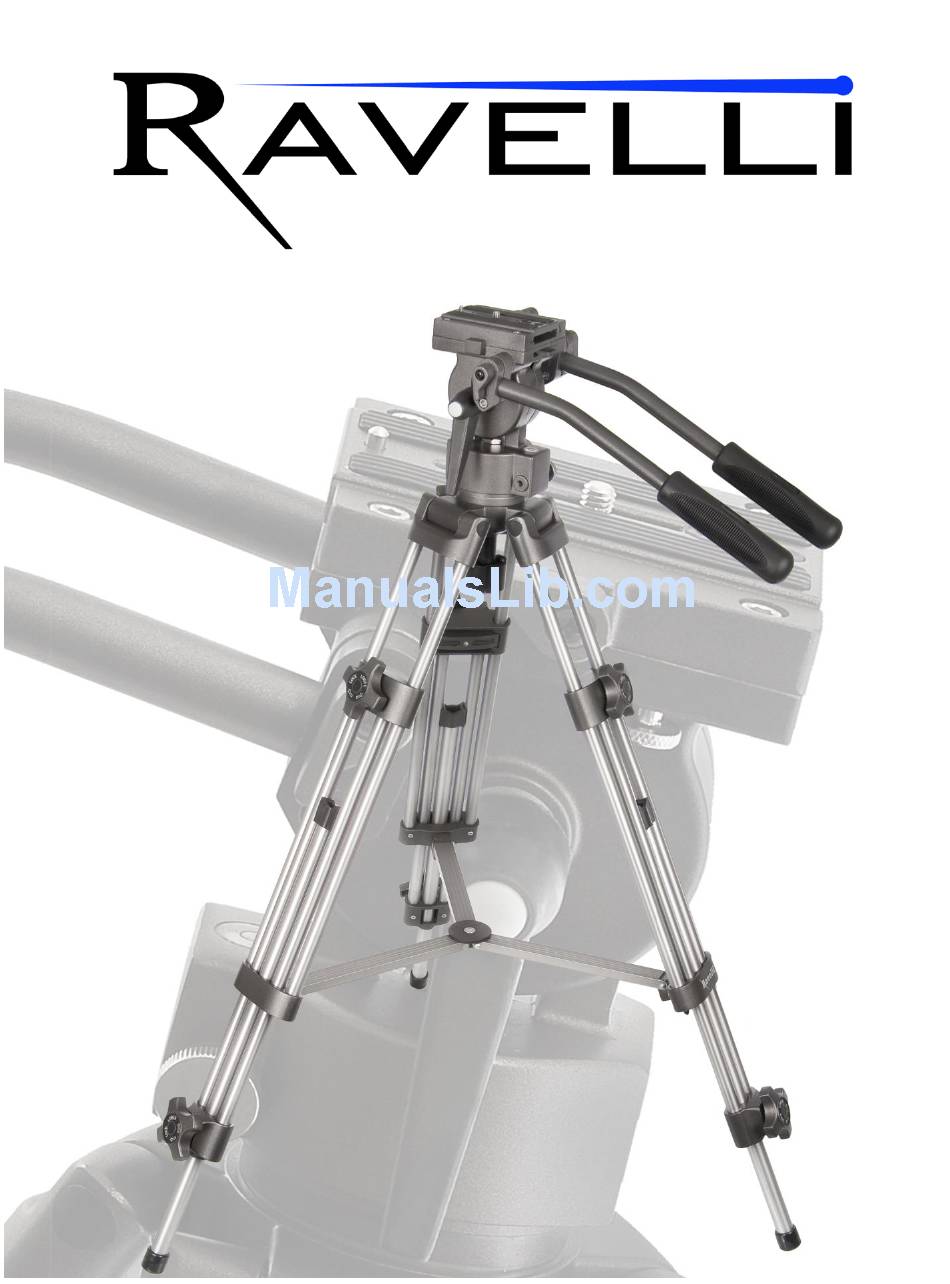

Page 1 AVTP Model Tripod...
Page 2 The Ravelli AVTP tripod head features finely machined aluminum parts for precise positioning with smooth, definite action. The fluid head is comprised of titanium-line components for years of durability and utilizes full two-way action allowing you to isolate the plane of motion and make precise adjustments to your compositions.
Page 3 Parts List: Part Description Quantity Quick Release Mounting Plate Video/Camera Mounting Screws Pan and Tilt Handle, Screws Fluid Drag Head/ Adjustment knob Ravelli AVTP Tripod Carrying Bag...
Page 4 Specifications: Model: AVTP Model Tripod Unit Heights: Collapsed: 28.5" Min Operating: 27" Max Operating: 54.5" Unit Weight Tripod 10.8 LBS Shipping Weight: 14 LBS Tripod: 100% High Grade Aluminum Unit Materials: Carrying Case: Nylon Total Footprint: Min: Radius-10.5", Foot To Foot-18.5"...
Page 5 Figure 1...
Page 6 6. Height Adjustment: Adjusting the height of the Ravelli AVT Tripod can be done by simply loosening the leg height adjuster knobs in a counter-clockwise rotation, then pulling the legs downward until the desired height is obtained.
Page 7 We also recommend purchasing sand bags or weights to set on the tripod legs to hold the tripod in place. Ravelli™ guarantees the tripod only and is not liable for damage caused to backdrops, cameras, lighting, or any other items.
