Summary of Contents for Ravelli APGL5

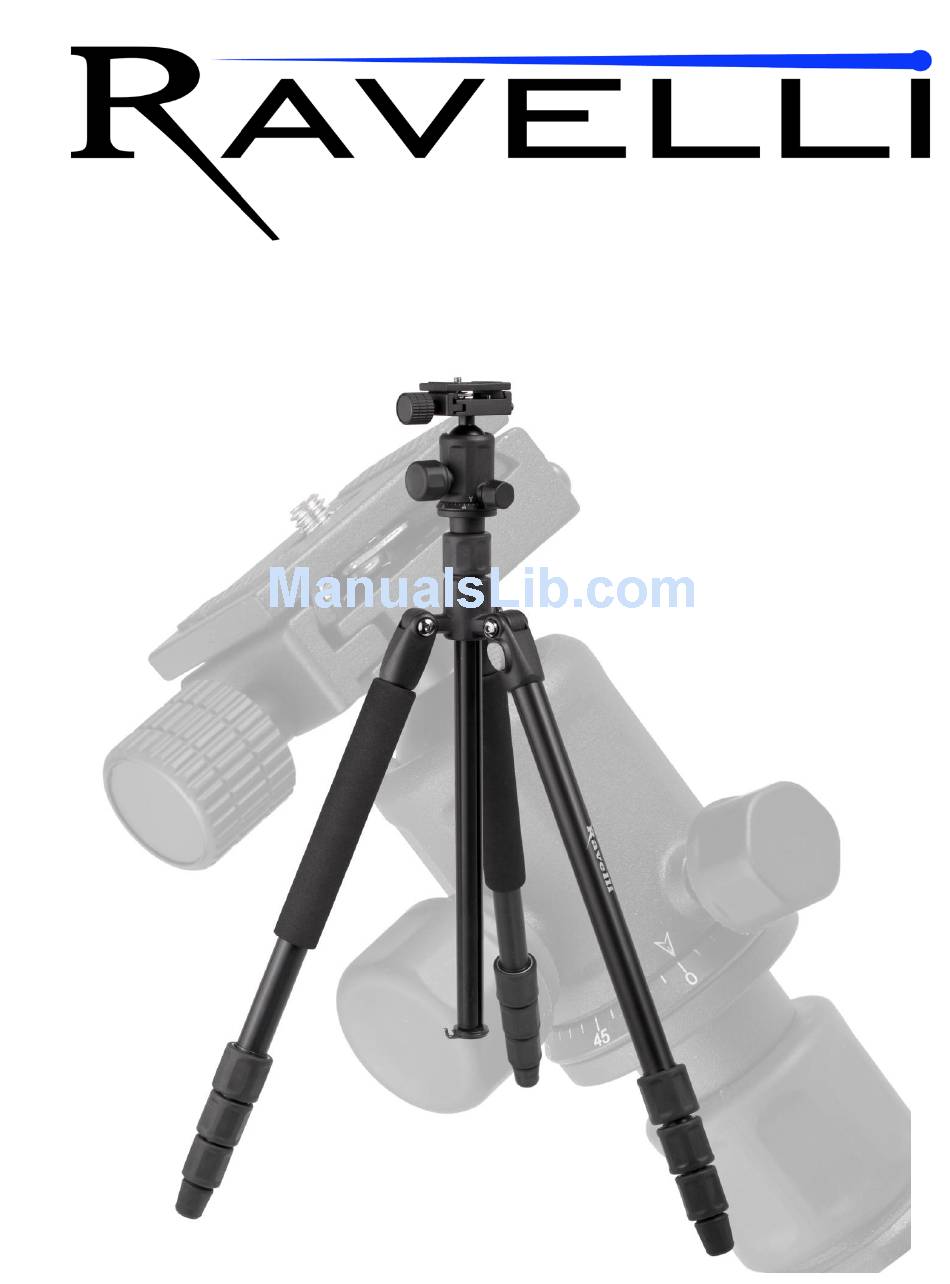

- Page 1 APGL5 Model Tripod...
-
Page 2: Product Overview
Product Overview The Ravelli APGL5 is a Professional Quality Tripod providing a solid base for high-end photographic equipment. It is made from Aluminum to create a light weight and sturdy tripod. The ball head provides smooth adjustments to any angle. -
Page 3: Identifying The Parts
Identifying the parts... -
Page 4: Using The Tripod
The tripod is stored in the inverted position. Invert each leg and adjust the center column. Height Adjustment Adjusting the height of the Ravelli APGL5 Tripod can be done by simply twisting the rubber knobs located on the legs, clockwise to lock or counter-clockwise to unlock. Then extend the legs down to the desired height, and relock the rubber knobs. - Page 5 To insert the quick release plate, ascertain that the quick release knob is fully turned counterclockwise, press in the silver safety button, and slide the release plate gently into place. Turn the quick release plate knob clockwise until the plate is secured tightly.
- Page 6 First method- The first method involves removing the center column and inverting it upside down. First, loosen the center column height adjustment lock knob. Next, unscrew the accessory hook on the bottom of the center column to remove. Remove the center column by pulling it up and out of the center.
-
Page 7: Care And Maintenance
We also recommend purchasing sand bags or weights to set on the tripod legs to hold the tripod in place. Ravelli™ guarantees the tripod only and is not liable for damage caused to backdrops, cameras, lighting, or any other items... -
Page 8: Specifications
Specifications Model: APGL5 Model Tripod Max Load: Supports Up To 17 LBS 360° Panning Angle: 180°, 90° Upward or 90° Downward Tilt Angle: Dimensions: Storage Height: 19” (482 mm) Collapsed Height: 24.5” (622 mm) Maximum Height: 65.75” (1660 mm) Minimum Height: 19" (584mm)(inverted height is 0) Weight: Tripod: 3.8 LBS... - Page 9 This dolly offers smooth movement with 3" rubber wheels and metal ball bearings. The Ravelli ATD also includes a one-step lock on each wheel to securely hold your tripod in place.
