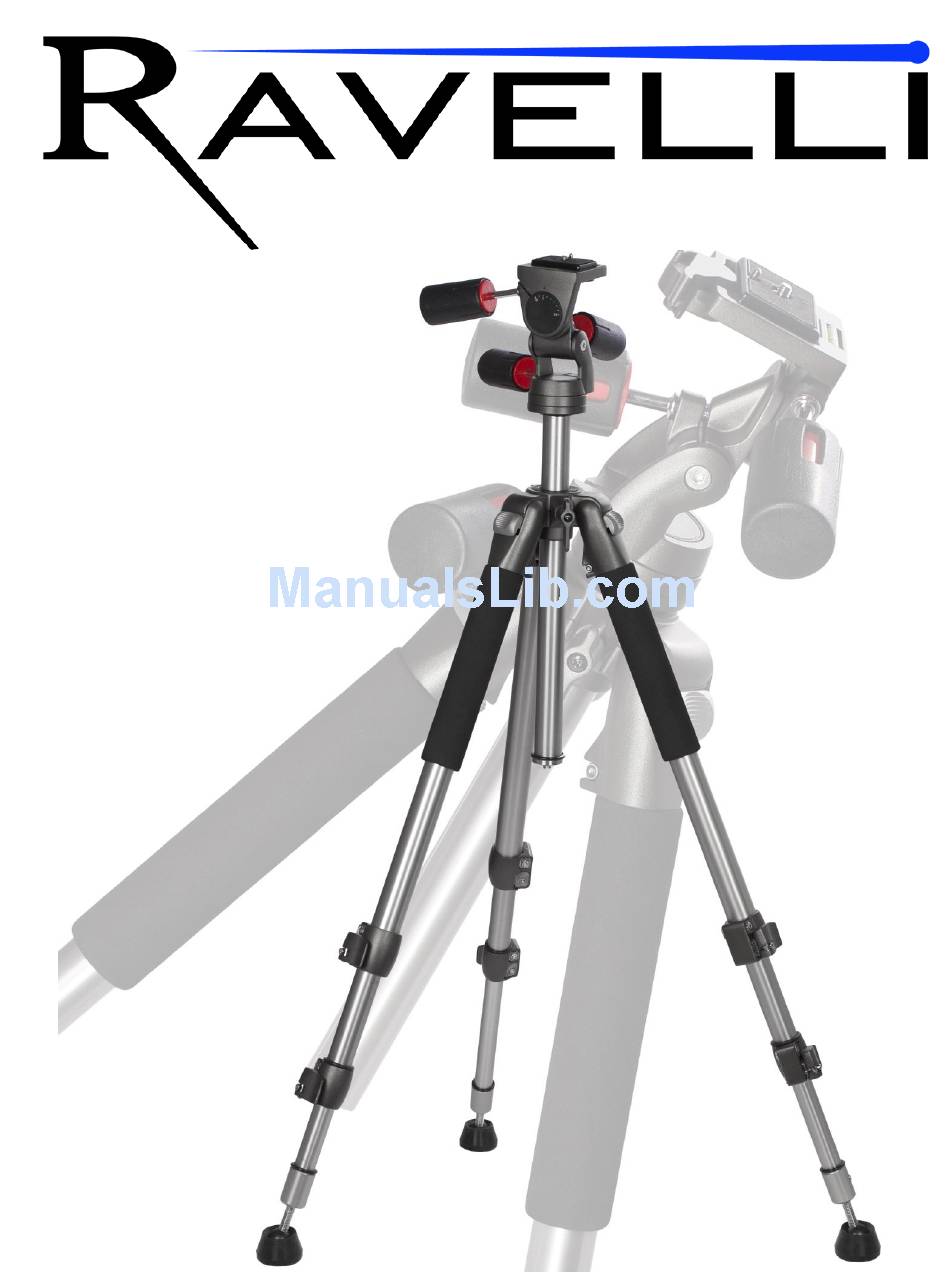

- Page 1 APGL3 MODEL TRIPOD...
-
Page 2: Product Overview

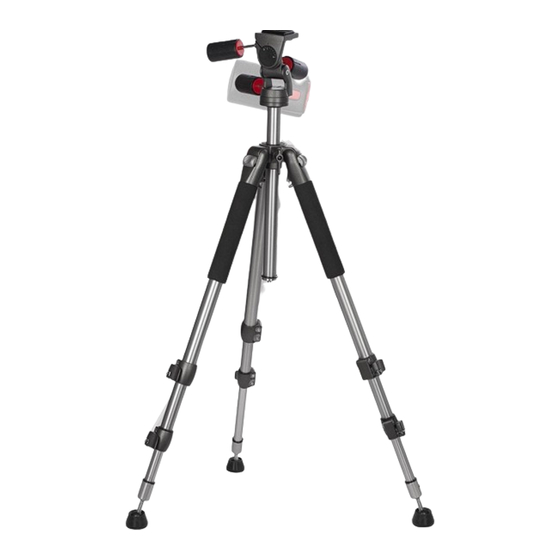

Product Overview The Ravelli APGL3 is a Professional Quality Tripod providing a solid base for high-end photographic equipment. This model is all pressure treated aluminum alloy construction and is unrivalled in stability. The three axis adjustable head provides smooth fluid adjustment to any angle. The center elevator is gearless and can be inverted for low angle shots. -
Page 3: Identifying The Parts
Identifying the parts... -
Page 4: Using The Tripod
Using the Tripod Set Up To set up the tripod, Grasp the legs of the tripod, then pull each leg away from the center until it reaches the first lock position. Do this for each leg then ensure the tripod is stable before releasing it completely on the ground. Mounting The Head To install the 3 axis head, first position the head on the head mounting plate located on... - Page 5 level. Once the plate is aligned, press down on the opposite end to allow the lever (B) to snap close. Ensure the lever is fully in and the quick release plate is fully secure, then turn the silver safety lever (A) to lock the plate in place. Panning &...
- Page 6 We also recommend purchasing sand bags or weights to set on the tripod legs to hold the tripod in place. Ravelli™ guarantees the tripod only and is not liable for damage caused to backdrops, cameras, lighting, or any other items.
-
Page 7: Specifications
Specifications APGL3 Model Tripod Model: 360° Panning Angle: 90° Tilt Angle: Dimensions: Collapsed Height: 31” Maximum Height: 66” Minimum Height: 20” (inverted height is 0) Mass: Tripod: 7.1LBS Shipping Weight: 8 LBS Quick Release Plate 1/4” Screw: Quick Release Plate 2”...
