ETC SmartModule 2 Connection And Setup Manual

Setup and Connect Guide
"Smart" User Interface

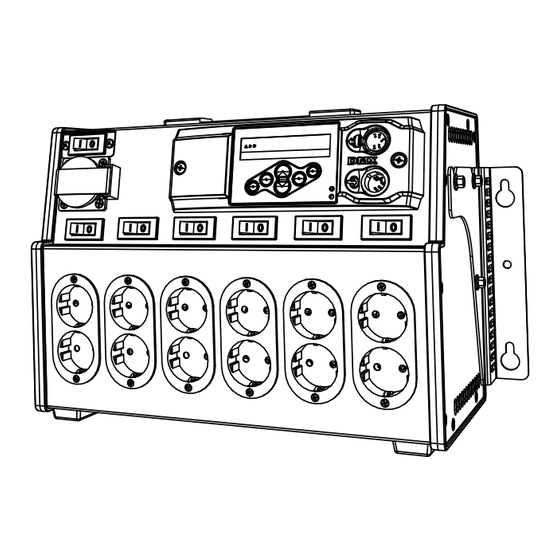

SmartModule 2
Local manual control of dimmers and 20
4 or 6 channel modules
built-in chases for stand-alone operation
DMX 512 compliant
Multi-language software including English,
RDM identify / RDM - DMX Address
Spanish, German and French
UL / cUL Listed and CE Marked
DMX 512 In and Thru XLR connectors
Convenience Outlets
UL outlet type is dual
Edison, CE outlet type
typically matches the
output connector type
Input Connector is optionally supplied.
Recommended (UL) Input Connector
To maintain UL Listing, use a recommended input connector.
1Ø
2 wire + ground use NEMA L5-15, 5-15, L5-20, 5-20
2Ø
3 wire + ground use NEMA 14-15, 14-20, L14-20
3Ø 4 wire + ground use NEMA 21-20
NOTE: Using a NEMA L5-15, 5-15 or 14-15 input connector
derates the SmartModule 2 to 15A maximum input.
Recommended (CE 230 VAC) Input Connector
16A or 32A CEE 1PNE
dual NF or dual Shuko load connectors use
Schuko or NF male
1Ø 2 wire + ground
16A or 32A CEE 1PNE
UK15A Round Pin load connectors use UK15A
Round Pin male
3Ø
4 wire + ground 16A or 32A CEE 3PNE
NOTE: Supply must be protected by Type C circuit
breaker, maximum 32A.
