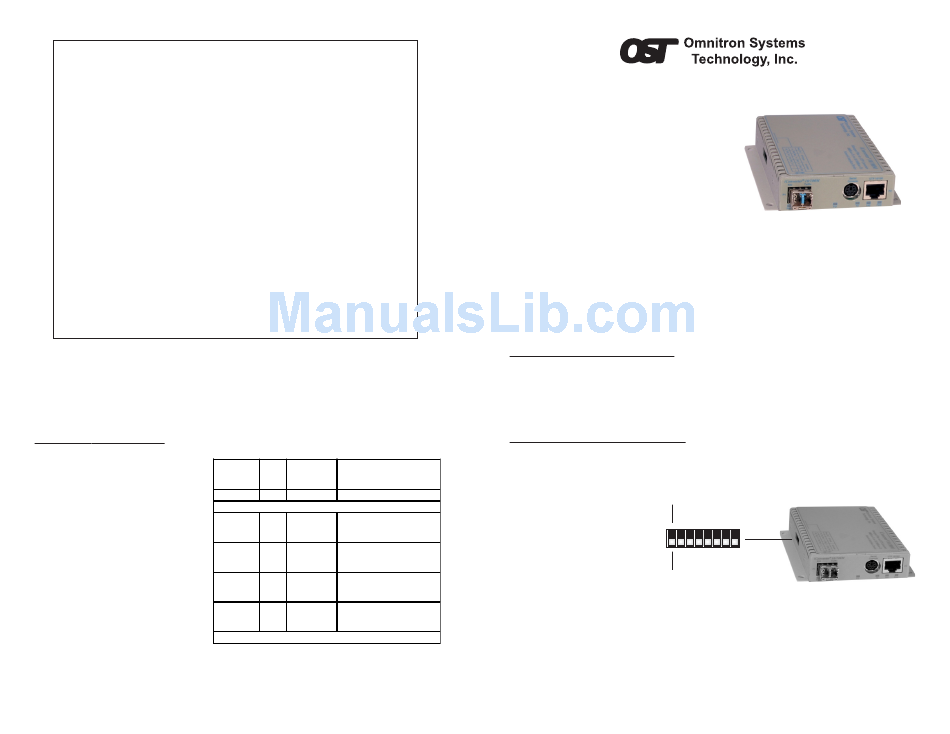

Management Options iConverter, Serial Agent
Network Management
1:
Chassis and Module Management
2:
Set Module Name Preferences
Management Module Preferences
3:
IP and Control Preferences
4:
SNMP Preferences
5:
Abandon Preference Changes
6:
Save Preference Changes
7:
Restore Factory Defaults
8:
Restart Management Module
9:
Other Networking Features
Management Module Maintenance

10: Firmware Update

11: Set Date/Time

IP Address
= 192.168.1.220
Chassis Number = 1
Enter Choice, <H>elp, E<x>it >
Figure C: Command Line Interface Menu Options
The CLI interface allows for the detailed configuration of the module. It is recommended
to configure the module with an IP address associated with the attached network.
Also, SNMP traphost address should be configured if the module is managed with an
SNMP-based Management System. See the 10/100M2 User Manual for complete
information.

4) VERIFY OPERATION

Once the module has been installed
and configured per steps 1 - 3, verify
the module is operational by viewing
the LED indicators.
The Power LED indicates the
100Mbps
module is receiving power.
The Fiber Optic link LED indicates
the fiber optic connection has been
established. Verify the Link Mode
selection is set to Link Segment
100 Mbps
(LS).
Until a stable link is
established, leave the Link Mode
configured for LS. After a Link
presence is established, the Link
Mode selection can be modified.
The UTP link LED indicates the
module
has
established
a
connection across its UTP port.
Omnitron Systems Technology * 140 Technology Dr. #500 * Irvine, CA 92618
949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com
LED
Function
Color Off State
On / Blinking State
"Legend"
Power "Pwr" Green No power
On: Module has power
Network Ports Status*
On: Fiber link is active
Fiber Optics
Green No Fiber Link
Blinking: Fiber Data Activity
"FO"
On: 10Mbps mode selected
UTP port 10
10Mbps not
Green
and the UTP link is active
Mbps "10"
active
Blinking: UTP Data Activity
UTP port
On: 100Mbps mode selected
100Mbps not
Green
and UTP link is active
active
"100"
Blinking: UTP Data Activity
UTP port
Half-Duplex
On: Full-Duplex and UTP link
Full-Duplex
Green
when UTP link
is active
"FDX"
is active
*Review Link Modes section for other LED display patterns

Figure D: LED Indicators

Form 040-8900N-001 B

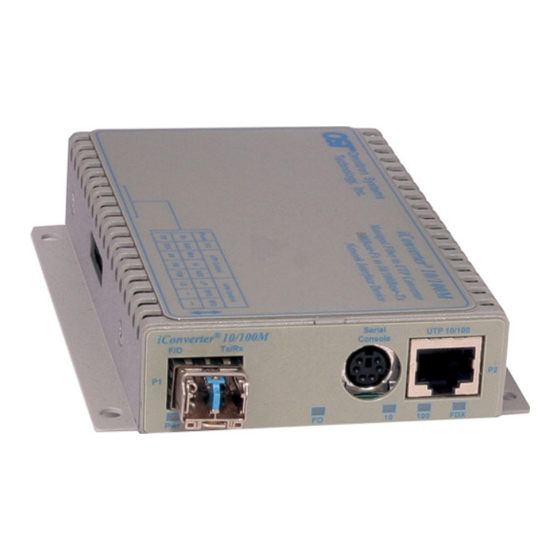

iConverter
10/100M2 Standalone Module QUICK START GUIDE
®
The Omnitron
iConverter
10/100M2 is a carrier-
class Network Interface Device (NID) that
provides 10BASE-T or 100BASE-TX (10/100) to
100BASE-FX Fiber media conversion with
integrated management.
The 10/100M2 conforms to Ethernet in the
First Mile (EFM) fiber standards to support
Fiber-to-the-X (FTTX) Metropolitan access
and Enterprise LAN networks. 10/100M2
media converters are used to provide managed copper demarcation points at the
customer premises and network edge, offering service provisioning functions, such as
Quality of Service and Bandwidth Control (rate-limiting) capabilities.
The 10/100M2 can be managed using Omnitron's
Software, 3rd Party SNMP Client, Telnet or the Command Line Interface (CLI).
For more information, including the complete User Manual on the 10/100M2 module,
access Omnitron's documentation download web page to view all relevant documents:
http://www.omnitron-systems.com/downloads.php

INSTALLATION PROCEDURE

1) Configure DIP-Switches

4) Verify Operation
1) CONFIGURE DIP-SWITCHES

DIP-SWITCH BANK 1

SW1 - UTP/FIBER PAUSE ENABLE
When a port is operating in
Up
Auto-Negotiation (AN), its
Pause operation mode is
SW1
determined by the Pause
capability advertised during
AN between itself and the
link partner.
The port
Down
advertises
its
Pause
capability (Symmetrical or
No Pause) during AN
based on the Pause
Disable/Enable DIP-switch setting.
When a port is operating in Manual mode, its Pause operation mode is based on the
Pause Disable/Enable DIP-switch setting.
Setting this DIP-switch to Half-Duplex "HDX" facilitates a connection that supports
NetOutlook
TM
SNMP Management
SW8
Bank 1
Figure A: DIP-Switch Location

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iConverter 10/100M2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Omnitron Systems Technology iConverter 10/100M2

  • Page 1 UTP port. SW2 - FIBER FULL/HALF DUPLEX Form 040-8900N-001 B Setting this DIP-switch to Half-Duplex “HDX” facilitates a connection that supports Omnitron Systems Technology * 140 Technology Dr. #500 * Irvine, CA 92618 949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com...
  • Page 2 Half-Duplex. Setting this DIP-switch to Full-Duplex “FDX” facilitates a connection that To power the unit using the AC/DC adapter, connect the AC/DC adapter to the AC supports Full-Duplex operation. outlet. Then connect the barrel plug at the end of the wire on the AC/DC adapter to the 2.5mm DC barrel connector (center-positive) on the chassis.
