Once connected, press <ENTER> to bring up a command line prompt on the attached
PC.
Management Options
Network Management
1:
Chassis and Module Management
2:
Set Module Name Preferences
Management Module Preferences
3:
IP and Control Preferences
4:
SNMP Preferences
5:
Abandon Preference Changes
6:
Save Preference Changes
7:
Restore Factory Defaults
8:
Restart Management Module
9:
Other Networking Features
Management Module Maintenance
10: Firmware Update
11: Set Date/Time
IP Address
= 192.168.1.220
Chassis Number = 1
Enter Choice, <H>elp, E<x>it >
Figure E: Command Line Interface Menu Options
The CLI interface allows for the detailed configuration of the module. It is recommended
to configure the module with an IP address associated with the attached network.
Also, SNMP traphost address should be configured if the module is managed with an
SNMP-based Management System. See the 10/100M2 User Manual for complete
information.
lED Function
4) VERIFy oPERATIon
"legend"
Once the module has been
Power "Pwr"
installed and configured per
Power Supply
steps 1 - 3, verify the module is
Status "PSx"
operational by viewing the LED
indicators.
The Power LED indicates the
Fiber Optics "FO"
modules is receiving power from
Master/Slave "BP"
the chassis.
10Mbps UTP "10"
The Fiber Optic link LED indicates
the fiber optic connection has
100Mbps UTP
been established.
"100"
The UTP link LED indicates
UTP Full-Duplex
the module has established
"FDX"
a connection across its UTP
port.
Omnitron Systems Technology * 140 Technology Dr. #500 * Irvine, CA 92618
949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com
iConverter, Serial Agent
Color
oFF State
on / Blinking State
Green
No power
Module has power
ON: Power Available
Power Supply not
Green
Blinking: No power available
installed
from "PSx"
Network Ports Status*
ON: Fiber link is active
Green
No Fiber Link
Blinking: Fiber Data Activity
Green
Slave Mode
Master Mode
10Mbps not selected or
ON: Active 10Mbps UTP link
Green
disconnected
Blinking: UTP Data Activity
ON: Active 100Mbps
100Mbps not selected
Green
UTP link
or disconnected
Blinking: UTP Data Activity
Green
Half-Duplex
Full-Duplex
Figure F: LED Indicators
Form 040-8900N-002 C
9/10
iConverter
10/100M2 Plug-in Module QUICK START GUIDE
The iConverter
10/100M2 is a carrier-class media converter and
®
a Network Interface Device (NID) that provides 10BASE-T or
100BASE-TX (10/100) to 100BASE-FX Fiber media conversion
with integrated management.
The 10/100M2 has built-in Operation, Administration and
Maintenance (OAM) functionality enabling the 10/100M2 to operate
as a managed demarcation point at the customer premises and
network edge, offering Quality of Service capabilities.
The 10/100M2 module can be managed using
Management Software, Telnet or the Command Line Interface
(CLI).
For the complete User Manual on this product, access Omnitron's
secure download site and request access.
http://www.omnitron-systems.com/login.php
InSTAllATIon PRoCEDURE
1) Configure DIP-Switches
2) Install Module in Chassis and Connect Cables
3) Configure Module via Command Line Interface
4) Verify Operation
1) ConFIGURE DIP-SwITChES
DIP-SwITCh BAnK 1
Sw1 - UTP/FIBER PAUSE EnABlE
When this DIP-switch is in the Left "OFF" position,
Pause is disabled. When the DIP-switch is in the
Right "PAUS" position Pause is enabled.
When a port is configured for Auto-Negotiation
(AN), Pause operation is determined during the
negotiation process between itself and the link
partner. The port advertises its Pause capability
(Symmetrical or No Pause) based on the Pause
Disable/Enable DIP-switch setting.
When a port is operating in Manual mode (MAN),
its Pause operation mode is based on the Pause
Disable/Enable DIP-switch setting.
Sw2 - FIBER FUll/hAlF DUPlEX
Setting this DIP-switch to Half-Duplex "HDX"
facilitates a connection that supports Half-Duplex.
Setting this DIP-switch to Full-Duplex "FDX"
facilitates a connection that supports Full-Duplex
operation.
NetOutlook
SNMP
®

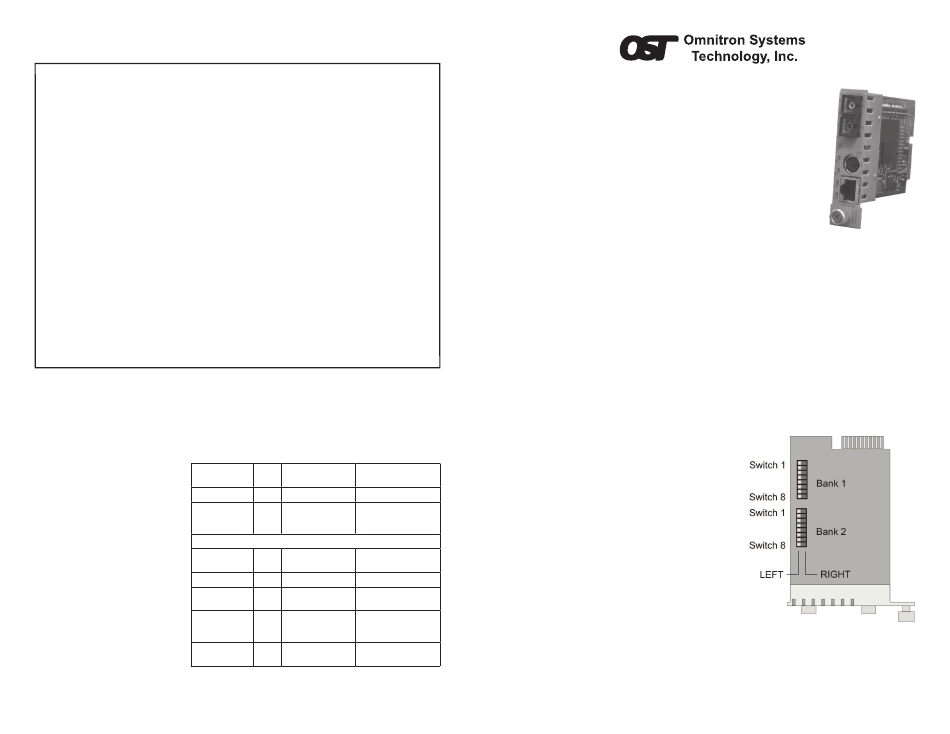

Figure A: DIP-Switch Locations
Page 1
