VisAccess AXS-100 Installation Manual

AXS-100, AXS-100XT
Indoor Two-Door Proximity Access Control System
1. INTRODUCTION
The AXS-100/AXS-100XT is an electronic access control system
for controlling two doors.. Eight controllers can be networked
together to control a total of 16 doors. The controller relay
activates a lock or an electromagnetic strike (EMS), when a valid
proximity key card or tag is presented to the reader. For detailed
system description, refer to the AXS-100/AXS-100XT user's
guide.
2. SPECIFICATIONS
AXS-100, AXS-100XT CONROLLER
Power Input: 14 - 16.5 VAC, 50VA
Max Current Consumption: 2.5A
Memory Capacity: 5,000 access card codes
Event Log: 1000 records per controller
Event Printout: RS-232 channel to printer or PC
System Programming: From controller #1. PC may be connected for
use as supplemental monitoring only.
Time Schedules: 64 separate schedules. Each key may be assigned
to 2 schedules.
Dry Contact Relay: Max 1A continuous
Doors Per Controller: Up to 2
Readers Per Controller: Up to 2 external + 1 internal (for programming)
Controllers Per Network: 8
Inputs (x 2 doors): Request-to-exit, door position, 2 programmable
inputs
Outputs: 2 lock relays, NO/NC dry contact, 30VDC 2A max
1 auxiliary relay, NO/NC dry contact, 30V DC 2A max
Output power for 2 locks: 10.3 - 12VDC, 400mA max
2 readers output: 70 mA max
Anti Passback (APB) Modes:
1. Local to each controller
2. Network APB
Indicators (LEDs): 5 (see figure 5)
Operating Temperatures: 0°C to 50°C (32°F to 122°F)
Dimensions (LxWxD): 315x262x74mm (12-3/8x10-5/16x10-15/16 in)
Weight: AXS-100: 3.8 kg (8.4 lb)
AXS-100XT: 3 kg (6.6 lb)
Color: White
Compliance with standards: Complies with Part 15 of the FCC
Rules and RSS-210 of Industry and Science Canada.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may
cause undesired operation.
3. MOUNTING
3.1 Metal Box Mounting
The system must be installed indoors, within the protected
premise, in accordance with the National Electrical Code
(NFPA70) and the local authorities having jurisdiction.
For AXS-100XT use only the supplied plug-in transformer:
PRI 120V/60Hz @ 0.59A, SEC 16.5VAC / 50VA
BE116250CAA0040, Basler Electric, Class 2 NOT WET,
Do not connect (the transformer) to a power receptacle that is
controlled by a switch.
Page 1 of 5
DE6280-9
Installation Guide
The use of a proximity (non-contact) key makes the installation of
the AXS-100/AXS-100XT system an attractive possibility in harsh
environments and in places with poor lighting conditions.
The proximity keys are totally sealed and wear resistant. The lock
reads the key ID, whenever the key is held close to the reader.
READERS
Operating Temperatures: -20°C to 50°C (-4°F to 122°F)
Color: Dark brown
Minimum distance between readers: 60 cm (2 ft)
RDR-4 PROXIMITY READER
Weight: 121.5 g (4.3 oz)
Indicators: Tricolor LED (Green, Red, Amber)
Cable (to AXS-100/AXS-100XT control unit) maximum length:
22 AWG up to 60 m (200 ft)
18 AWG up to 100 m (320 ft)
Dimensions (LxWxD):
116 x 70 x 16.8 mm (4-1/2 x 2-3/4 x 5/8 in)
RDK-4 PROXIMITY READER WITH KEYPAD
Weight: 170 g (6 oz)
Power input: 12-16V DC from the AXS-100 / AXS-100XT
Buttons: 12 (numeric keypad)
Dimensions (LxWxD): 122x82x31mm (4-13/16 x 3-1/2 x 1-1/4 in)
CARDS (*)
CRD-1SL ISO STANDARD SLOTTED AND NUMBERED
PROXIMITY CARD
Card ID: One of a trillion different combinations
Dimensions (LxWxD):
85x54x1mm (3 5/16 x 2 1/8 x 1/32 in)
Weight: 2.5 g (0.1 oz)
Color: White
CRD-25SL: Package of twenty-five CRD-1SL slotted proximity
cards with print
CRD-25: Package of twenty-five CRD-1 non-slotted proximity cards
(optional).
CRD-25S: Slotted proximity card
TAGS (*)
TAG-1: One proximity tag
* Both cards and tags contain 40-bit code and using
Manchester encoding
.

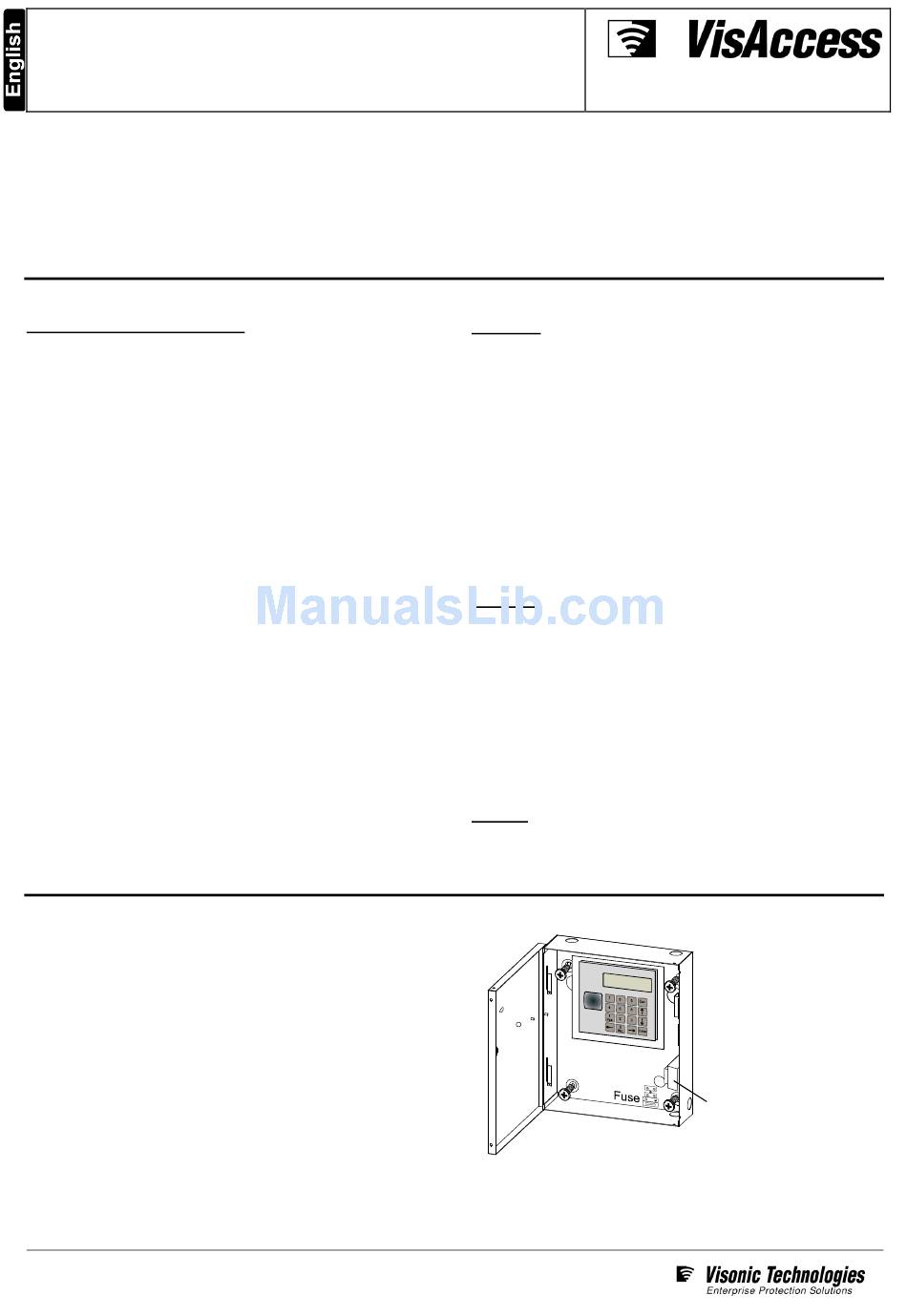

Figure 1 - Mounting
(optional, not evaluated by UL)
Use the box as a template
to mark on the mounting
surface, drill 4 holes on the
mounting surface and
fasten the box to the
mounting surface by using
4 screws.
Transformer (AXS-100 only).
In AXS-100XT there is no
transformer.
