VisAccess AXS-5 Installation Manual

AXS-5 / AXM-5
Single-Door Proximity Access Control Systems
Introduction
AXS-5/AXM-5 is an access control system designed for a single door.
AXM-5 is a smaller, mullion-design version of AXS-5.
The AXS-5/AXM-5 includes proximity tags/cards reader and a control
unit in the same housing. Proximity tags/cards are used as electronic
keys for opening a door in the secured area.
When a valid proximity tag/card is presented to the reader, the
system sends an unlock signal to the door, for a short period, to
enable entering the secured area (see fig. 2).
The AXS-5/AXM-5 memorizes a master key plus 25 keys. It is
supplied with 6 free proximity tags (Tag-1 type) and 2 screws.
Additional proximity tags and cards can be purchased separately.
Proximity cards with any picture, logo etc., can be purchased
according to the purchaser desire.
The AXS-5 and AXM-5 are totally protected against dust & water and
are shock/impact protected - they are potted in epoxy resin.
The system is powered by an external 12 VDC power supply. The
EMS (Electro-Magnetic Door Strike) is energized with 12 VDC when a
valid key is presented.
If a Request To Exit feature is required, an additional adapter (ADP-5)
can be added to the system, to enable manual door opening inside
the secured area (by using EXIT button) or automatic opening (by
using IR motion detector). A backup battery can be connected to the
ADP-5, to enable operation when power fails.
When the system is in TOGGLE mode, presenting a valid tag
arms/disarms an alarm system or activates/deactivates an electrical
device (such as an air conditioner).
Specifications
Frequency: 125 kHz
Range, Dimensions and Weight of the System Elements:
Tag / card
Reading Range
AXS-5 50-100
(2-4 in.)
AXM-5 40-80
(1-1/2 - 3 in.)
Power Input: 12 - 14 VDC
Power Output: 12 VDC / 500 mA
Current Consumption: 150 mA (Idle), 650 mA (EMS open)
Door Unlock Duration: 1.5 to 99 seconds
Installation and Wiring

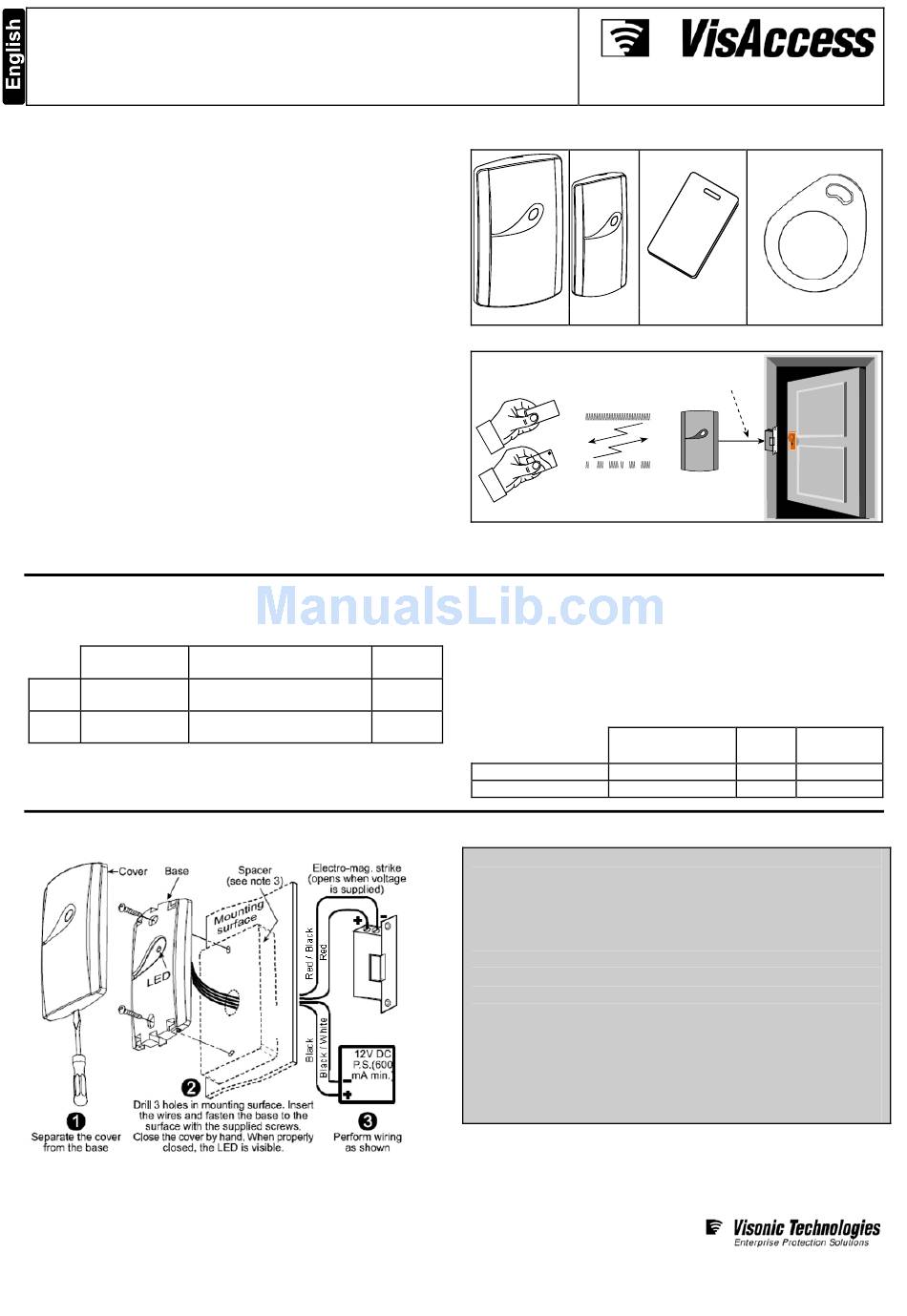

Figure 3 - Mounting and Wiring
Page 1 of 2
D-E6291_V6 03.11
Dimensions
(mm) (L x W x D)
116 x 70 x 16.8
(4-1/2 x 2-3/4 x 5/8 in.)
94 x 43 x 16
(3-13/16 x 1-23/32 x 5/8 in.)
AXS-5
Figure 1 - System Elements External View
Proximity
card
Proximity
tag
For additional information and installation instructions, please contact
the Visonic Technologies sales department.
Indicators: Tricolor LED - Green, Red, Amber
Tag Codes Possibilities: 10
Key/Card Memory: 25 keys/cards (users)
Weight
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
(g)
Color: Metallic brown or white
112
(3.9 oz.) Environmental Protection (Solids, Liquids, Impact): IP677
82 Proximity Tag/Card Dimensions, Weight and Color:
(2.9 oz.)
Prox. Tag TAG-1
Prox. Card CRD-1
Important Notes
1. When installing more than one AXS-5/AXM-5, the distance
between them should be at least 60 cm (2 ft.), to ensure
proper operation.
2. The maximum power output of the AXS-5/AXM-5 is
12VDC/500 mA. If using a locking device with higher power
requirements, please use a separate relay and power supply
Do not install the AXS-5/AXM-5 on a metal surface or a
3.
metal door frame, since this decreases the read range
significantly. If you have to install the reader on a metal
surface, use a spacer so that the reader will be at least 1
cm (3/8 in.) away from the metal. You should use RDR-
BACK (for AXS-5, can be purchased separately, white or
brown, according to its color) or RDM-BACK (for AXM-5,
supplied with each AXM-5) that are optional spacers made
specifically for this purpose.
Installation Guide
AXM-5 Proximity Card
Unlock
signal
Transmission
signal
Coded
AXS-5/AXM-5
transmission
signal
Figure 2 - System Operation
12
possible combinations
Dimensions Weight
(mm) (L x W x D)
30 x 36.5 x 7.5
85.5 x 54 x 1
www.visonictech.com
Proximity Tag
Color
(g)
5.0 Dark Gray
5.6 White
