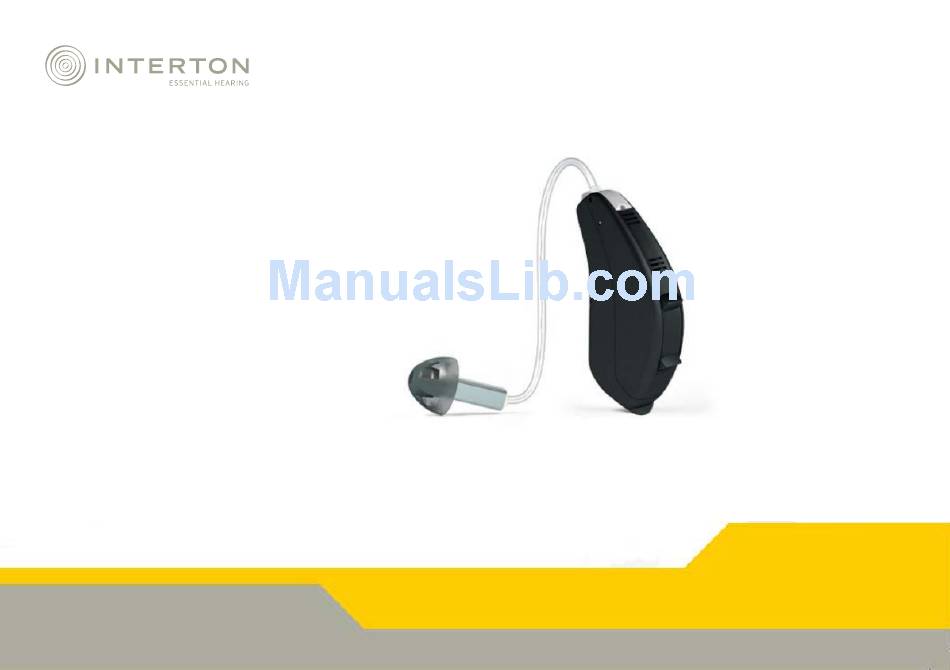

- Page 1 Technical Manual INT MILANO RIE Interton Global Technical Operations http://gto.gnresound.com Lautrupbjerg 7 DK-2750 Ballerup • Denmark...
-
Page 2: Table Of Contents
Doc 0219660 rev. K Table of Contents Product information ......................... 3-4 Part list............................. 5-6 Part list - prog service module/ASM FRAME..................7 Part list - test equipment, 3 pin HI model.....................8 Part list - test equipment, 2 pin HI model.....................9 Part list - HSG parts........................10-11 Part list - SureFit (SF) rec tube blister packs &... -
Page 3: Product Information
This Technical Manual serves to outline the service & postponement procedure for products listed in the form-factor-matrix above. Furthermore the doc No for Product Information/Data sheet is listed for a more detailed product information INT ST660-DRW, 3 PIN REC: ST660-DRW mounted... -
Page 4: Product Information
Product Information - CRISP & SHARE C4.1 Doc 0219660 rev. K Data Sheet C4.1 Product Model Doc No CI360-DVIRW CRISP 400127000 MILANO RIE 60 (wireless) CI260-DVIRW batt size 312 zinc air 2 pin rec SHARE SR1360-DVIR 400281000 (non wireless) This Tech Manual serves to outline the service & postponement procedure for products listed in the form-factor-matrix above. Furthermore the doc No for Product Information/Data sheet is listed for a more detailed product information CRISP / SHARE 60 Crisp &... -
Page 5: Part List
Part List Doc 0219660 rev. K Description Part No Description Part No PIN,0.6X5.0 (top/bot HSG, all models) 18035700 INTEGRD FM ADAPT HA,INT,NANO (EU) 18642600 PIN,0.6X4.5 (batt door, CI & SR models) 17010500 INTEGRD FM ADAPT NB,INT,NANO (US/CA) 18642601 PIN,0.6X6.6 (batt door, ST models) 15344300 CHILDLOCK RELEASE TOOL (mandrel) 18106800... - Page 6 Part List - CROS SUREFIT Doc 0219660 rev. K Description Part No CROS,SUREFIT,AUDIO SHOE,SMALL * 20040900 CROS,SUREFIT,AUDIO SHOE,MEDIM * 20041000 CROS,SUREFIT,AUDIO SHOE,LARGE * 20041100 CROS,SUREFIT,EUROPLUG,SMALL * 20040500 CROS,SUREFIT,EUROPLUG,MEDIUM * 20040600 CROS,SUREFIT,EUROPLUG,LARGE * 20040700 * Lengths: S = 25 cm, M = 28 cm, L = 31 cm (excl CROS hook) DAI adapt 2 (f/ 3pin euro plug) CROS,SF...
-
Page 7: Part List - Prog Service Module/Asm Frame
Part No SHARE SR1360-DVIR 19159800 Prog Service Module/ASM FRAME (C4.5) Part No STEP ST660-DRW (3 pin rec plug) 20051700 ST460-DRW 19154400 ST260-DRW 19154500 Service modules are not serviceable at local site. Instead defective ones must be returned to Global Repair Site... -
Page 8: Part List - Test Equipment, 3 Pin Hi Model
Part List - Test Equipment, 3 Pin Doc 0219660 rev. K Description Part No Description Part No PROG. CABLE EXTENSION, MILANO (must be AIRLINK,COMPL (for wireless connection test)** 17292000 17517800 used during HI test due to current measurement) AIRLINK 2,GENERIC (for wl connection test)** 17292002 PROG CABLE R (CS44) 9022 907 69019... -
Page 9: Part List - Test Equipment, 2 Pin Hi Model
Part List - Test Equipment, 2 Pin Doc 0219660 rev. K Description Part No PROG. CABLE EXTENSION, MILANO 17517800 (must be used during final HI test due to current measurement) PROG CABLE R (CS44) 9022 907 69019 PROG CABLE L (CS44) 9022 907 69029 PROGRAMMING ADAPT (incl prog adapt clip red &... -
Page 10: Part List - Hsg Parts
Part List - HSG Parts & Repl Packs - STEP Models Doc 0219660 rev. K HSG,TGL,LOCK COLOUR BOT HSG,PTD ** BATT DOOR ASM * ST460/260- ST660-DRW ST460-DRW ST260-DRW ST660-DRW 18729102 20037002 19096702 19151002 20036902 19096302 18729104 20037004 19096704 19151004 20036904... - Page 11 Part List - HSG Parts - SHARE & CRISP Models Doc 0219660 rev. K TOP HSG BATT DOOR BATT DOOR Colour (w/o a pin CONN LOCK BOT HSG SHARE CRISP mounted) * 18176102 18176302 18516502 18176402 19159902 18516602 18176104 18176304 18516504 18176404 19159904...
-
Page 12: Part List - Surefit (Sf) Rec Tube Blister Packs & Domes, 3 Pin
Part List - SureFit (SF) / SureFit2 (SF2) Rec Tubes (3 pin) Doc 0219660 rev. K SUREFIT 2 (SF2) SUREFIT (SF) DOMES USED WITH LP / MP REC (1 pc/each blister pack) Description (10 pcs) Size DOME,SF,TULIP,STD 19398500 DOME,SF,OPEN,SM 19398200 20105100 20104100 20103100... - Page 13 Part List - SureFit 2 Access (for rec tubes w 3 pin conn) Doc 0219660 rev. K Description Part No FITTING KIT,REC,SUREFIT 2* 20156300 FITTING KIT,REC,SF2(EMPTY)** 20260600 WAX PROTECTOR,CERUSTOP,BOX,8PC 549-010-000-00 MEASUREMENT TOOL,MINI BTE 15200800 SPORT LOCK,SF LP,BAG,10 19428000 SPORT LOCK,SF MP,BAG,10 19428200 SPORT LOCK,SF HP,BAG,10 19428300...
-
Page 14: Part List - Rec Tube Blister Packs & Domes, 2 Pin
Part List - Rec Tubes & Domes (rec tubes with 2 pin connector) Doc 0219660 rev. K Rec Tube Blister Pack Size S (small) * HP2 ** 18581300 18582300 18520300 18521500 18581400 18582400 18520400 18521600 18581500 18582500 18520500 18521700 18581600 18582600 18520600 18521800... - Page 15 Part List - Domes for NP & HP Receiver (for rec tubes with 2 pin connector) Doc 0219660 rev. K DOMES USED WITH NP REC DOMES USED WITH HP REC Description Description (10 pcs) (10 pcs) DOME,REC,SZ5,SM 18501200 DOME,REC,PWR,SM 18501900 DOME,REC,SZ7,MDM 18501300 DOME,REC,PWR,MDM...
- Page 16 Part List - Thin Tube Domes for S & HP2 Rec (for rec tubes with 2 pin conn) Doc 0219660 rev. K DOMES USED WITH S REC DOMES USED WITH HP2 REC Description Description (10 pcs) (10 pcs) DOME,THNTUB/REC,SZ5,SM 18500800 DOME,THNTB/REC,TULIP,STD 18501100 DOME,THNTUB/REC,SZ7,MDM...
-
Page 17: Power Dome Tool, 2 Pin
Power Dome Tool (HP 2 pin rec) Doc 0219660 rev. K Power Dome Tool Prepare a HF3 Insert HF3 tool with HF3 all the way in the power dome until it passes p/n 15989900 tool with HF3 through the rectangular cavity of the power dome Place the longer length of the rectangular cavity of the power dome over Squeeze and hold bottom of the power As the HP rec is pushed... -
Page 18: Part List - Accessories - Custom Insert Option,3 Pin
Part List - Accessories - Custom Insert Option for 3 pin rec Doc 0219660 rev. K Description Part No MANDREL,LP REC,NANO 20016400 MANDREL,MP REC,NANO 20016500 MANDREL,HP REC,NANO 20016600 Custom insert option SIL RUBBER,.085 IN,VENT,WHT 12192-006 Note: For custom insert option instead of std rec domes, follow the instr in doc 0280210 RIE CUST INS & HOLLOW CAV,3PIN posted on the GTO website MANDREL,LP REC MANDREL,MP REC MANDREL,HP REC... -
Page 19: Part List - Accessories - Custom Insert Option,2 Pin
Part List - Accessories (incl Custom Insert Option for 2 pin rec) Doc 0219660 rev. K Description Part No Note: RECEIVER TUBE REBENDING KIT 16964200 For custom insert option instead of standard domes, follow Custom iInsert Process Doc 0160240 posted on GTO website SPORTLOCKS, BAG 10 PCS * 539-052-000-00 SPORT LOCK,S-REC,BAG,10 **... -
Page 20: Part List - Accessories - N-Cased Earmould, 3 Pin
Part List - Optional N-Cased Earmould, 3 Pin Doc 0219660 rev. K TUBE 3 PIN2 TUBE 3 PIN3 Note: ENCASED EM RIE ENCASED EM RIE If the UP rec is to be mounted, the N-Cased earmould must be chosen. Please follow “N-Cased Earmould Process,RIE” SIZE Part No Part No... -
Page 21: Part List - Accessories - N-Cased Earmould, 2 Pin
Part List - Optional N-Cased Earmould, 2 Pin Doc 0219660 rev. K Note: Description Part No If the UP rec is to be mounted, the N-Cased earmould is to TUBE,ENCASED EARMOLD,RIE,SZ 1L 18956520 be chosen. Please follow “N-Cased Earmould Process,RIE” Doc 0248970 posted in GTO website TUBE,ENCASED EARMOLD,RIE,SZ 1R 18956530... -
Page 22: Disassemble Procedure & Replace Parts - Step
Disassemble Procedure & Replace Parts - STEP Doc 0219660 rev. K Loosen the conn lock using the plastic mandrel and pull out the rec. Separate the bot HSG from top HSG by sliding it off as shown. Be careful not to Locate the two pins and push them out using the pin removal tool damage the “tap”... -
Page 23: Disassemble Procedure & Replace Parts - Crisp & Share
Disassemble Procedure - CRISP & SHARE Doc 0219660 rev. K Unlock the rec by lifting up the conn lock using the mandrel. Push out the pin with a pin removal Gently separate the BOT HSG from TOP HSG tool and pull it out using a tweezer. The conn lock will then fall out without being damaged Open batt door and pull out Remove TGL by sliding it the module... - Page 24 Replacing Parts - CRISP & SHARE Doc 0219660 rev. K Replacing BOT HSG: ID plate shown from both sides. Turn the arrow/2 prong towards the rec end When replacing the bot HSG on Crisp & Share models, the ID plate must be transfered to new HSG. Please note that the ID plate is not an available spare part.
-
Page 25: Replacing Receiver Tube
Replacing Receiver Tube Doc 0219660 rev. K CRISP & SHARE: The connector lock is holding the rec tube in place. Lift it up using the plastic mandrel and pull out the rec tube. Push in a new rec tube and make sure it is correct in place. -
Page 26: Service & Postponement Procedure
Service Procedure & Postponement Doc 0219660 rev. K Service Procedure: - Save user settings with Fitting Software - Disassemble faulty device - Replace module with a new service module from stock - Assemble device - Restore user settings with Fitting Software - Load customer serial No using DSA6000 Postponement Procedure: - Disassemble device... -
Page 27: Test Equipment - 3 Pin
Test Equipment (3 pin) Doc 0219660 rev. K 2cc coupler p/n 30-4838800 TEST JIG p/n 19429000 Batt pill size 312 must can be ordered with GTO COUPL MIC,TM-12,MEASURED be used during test Dept/HQ Ballerup DK p/n 18220700 p/n 17449300 ASM TEST REC UP 3 PIN p/n 20011700 Prog adapt clip - recommended Prog adapt generic... -
Page 28: Test Equipment - 2 Pin
Test Equipment for HI with 2 Pin rec Doc 0219660 rev. K 17292002 AIRLINK 2 P/n 17292000 Airlink to be used for wireless “Connection test” Coupler Insert (brass) to be attached 2cc coupler during final HI test Coupler mic,TM-12 measured Both airlinks can be used for wl p/n 16169300 p/n 18220700... - Page 29 Prepare for HI Test (3 pin) Doc 0219660 rev. K Page 29 of 32 Not subject to issue control when printed...
-
Page 30: Hi Testing
HI Testing Doc 0219660 rev. K Pull out the rec tube. Open the batt door as described on the previous page and insert the batt pill. Connect the prog adapt and prog cable to the HI Test Rec (NP) p/n 17460000 Extension prog cable Important note: An extension prog cable must be used during final HI test due to the current measur-... -
Page 31: Prog Adaptor Clip
Prog Adaptor Clip Doc 0219660 rev. K Clip for prog adaptor L/R It is important to have the programming cable connected before adding the clip to the programming adaptor. Add the clip as shown in the pics. The clip is recommended to be used during test / fitting in order to keep the prog cable connected during the complete procedure To remove the clip firmly grip this side of prog adapt Pull tip of the clip... -
Page 32: Wireless Test - Connection Test
Wireless Test - Connection Test Doc 0219660 rev. K Wireless test using Airlink / Airlink 2: The “RF (Radio Frequency) signal test” is performed during hybrid test. In service & repair situations only a connection test is needed. The DSA6000 can perform a connection test to test the wireless function on the devices. The test is performed using an Airlink / Airlink 2 mounted directly in any of the DSA 6000 units USB ports.
