User's Guide
Changing Entertainment. Again.
Find Inside:
•
Connecting ........................ page 2
• Remote Control ................. page 5
• Using TV Menus ................ page 7
• Playing Discs...................... page 10
• Troubleshooting ................ page 18

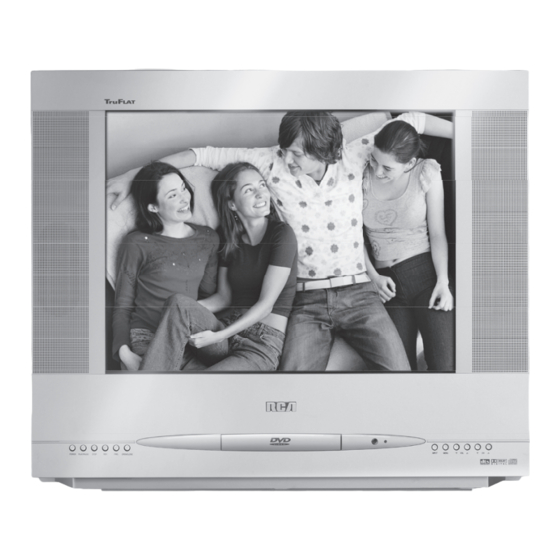

Model 20F510TD is pictured here.
• Warranty ........................... page 23
www.rca.com/television

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20F510TD and is the answer not in the manual?

Questions and answers

Related Manuals for RCA 20F510TD

Summary of Contents for RCA 20F510TD

  • Page 1: Table Of Contents

    • Remote Control ... page 5 • Using TV Menus ... page 7 • Playing Discs... page 10 • Troubleshooting ... page 18 • Additional Information ... page 21 Model 20F510TD is pictured here. • Warranty ... page 23 www.rca.com/television...

  • Page 2: Important Information

    REFER SERVICING TO QUALIFIED PERSONNEL. Product Registration Please fill out the product registration card (packed separately) and return it immediately. For U.S. customers: Your RCA Consumer Electronics product may also be registered at www.rca.com/productregistration. Registering this product allows us to contact you if needed.
  • Page 3 Connections and Setup Things to Consider Before Connecting ... 2 Explanation of Jacks and Cables ... 3 Front Panel Controls ... 4 Putting Batteries in the Remote ... 4 The Remote Control The Buttons on the Remote Control ... 5 DVD Function Buttons ...6 Using TV Menus TV Menus ...

  • Page 4: Connecting

    Connections and Setup Things to Consider Before Connecting Important Stand and Base Safety Information Choose the location for your TV carefully. Place the TV on a stand or base that is of adequate size and strength to prevent the TV from being accidentally tipped over, pushed off, or pulled off. This could cause personal injury and or damage the TV.

  • Page 5: Explanation Of Jacks And Cables

    Explanation of Jacks and Cables You can connect other components to your TV/DVD player such as a VCR, video camera, or audio receiver. There are several ways to connect other components to your TV/DVD player depending upon the cables you have and the jacks that are on the back of the components.

  • Page 6: Front Panel Controls

    Connections and Setup Digital Audio Out/Coaxial Jack Use this jack to connect your TV/DVD Player to a Dolby* Digital or DTS receiver or decoder. *Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. DTS is a registered trademark of Digital Home Theater Systems, Inc.

  • Page 7: Remote Control

    The Buttons on the Remote Control INPUT Press it to switch between AV/DVD input and RF (antenna) input. MUTE POWER TV Press to place the remote control in TV mode. MUTE Press to reduce the volume level. Press again to restore the volume. DISPLAY Press to display channel information PICTURE Press to display the picture preset.

  • Page 8: Dvd Function Buttons

    The Remote Control DVD Function Buttons DVD Puts the remote in DVD mode. MUTE POWER POWER Turns the TV on or off. VOL (left and right) buttons Press the buttons to increase or decrease the TV volume. MUTE Reduces the TV’s volume to its minimum level. Press again to restore the volume.

  • Page 9: Using Tv Menus

    TV Menus TV Menus let you control picture quality and features available for TV viewing. There is a different menu system for DVD features (described on page 12). Note: Remember to use the TV arrow buttons when accessing the TV’s menu system. TV Menu navigation 1.

  • Page 10: The Tuning Menu

    Using TV Menus TUNING CHANNEL DELETE CH SOURCE LABEL AAAAA AUTO SEARCH SOURCE Choose AIR or CABLE. Select AIR to receive a broadcast signal. Select CABLE to receive a CATV signal. LABEL To add a channel description: 1. Go to the TUNING menu. 2.
  • Page 11 V-CHIP The choices in this menu involve software inside your TV which allows FUNCTION you to block content that may be unsuitable. Press the MENU button on the LANGUAGE ENGLISH remote control until the Function menu appears. Press u button to choose ON SCREEN SAVER to use the V-Chip settings.

  • Page 12: Playing Discs

    Playing Discs DVD Basics Regional Coding The DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. This unit’s code is Region 1. Discs with other regional codes can’t be played in this unit. Using Different Menus Each disc is programmed with different features.

  • Page 13: Search Options

    • The disc menu appears on the screen when you press • The disc starts playing automatically. If no picture or screen saver is displayed, press the DVD button to put the player in the DVD mode. Search Options You can use the following search features with some discs: Picture Scan When you’re playing a disc, each time you press uu (Forward) or tt (Reverse), your DVD player scans the disc faster until you reach the fastest scan speed.

  • Page 14: Dvd Info Menu

    Playing Discs DVD Info Menu Title / Chapter To directly access a title or a chapter: 1. Press TITLE on the remote control. Select Title or Chapter using the p/q buttons and press OK. 2. Enter a title or chapter number using the number buttons. Note: Many discs only have one title.

  • Page 15: Repeat

    Repeat To select a playback mode while the disc is playing: Press REPEAT on the remote repeatedly. Display Info Press the INFO button repeatedly during playback to show: DVD: Title elapsed time, Title remaining time, Chapter elapsed time, Chapter remaining time, and Display Off. VCD, SVCD and audio CD: Single elapsed time, Single remaining time, Total elapsed time, Total remaining time, and Display Off.

  • Page 16: Setup Menus

    Playing Discs Setup Menus These menus are used to set up TV screen formats for DVD viewing and other DVD functions. general Setup Page General Audio Preference General Setup Page TV Display Angle Mark OSD Lang Screen Saver Last Memory Go To Speaker Setup Page Angle Mark The ANGLE MARK option is used when DVD discs contain scenes which have been shot simultaneously from a...

  • Page 17: Speaker Setup Page

    The Speaker Setup Page General Audio Preference Speaker Setup Page Downmix Dual Mono Dynamic Go To Speaker Setup Page Dual Mono Dual Mono gives you a fuller, better balance of audio based on the disc that you are playing. • Stereo: Delivers audio from the left and right channels to the left and right speakers. •...

  • Page 18: Audio

    Playing Discs Audio Some discs are recorded with different languages. You can select a default language so discs will play in the language of your choice, if the disc was recorded with multiple tracks. Language choices are: English, French, German, Spanish, Chinese, Japanese, Korean. Notes: Discs are created differently and not all discs are recorded with multiple languages.

  • Page 19: Disc Scan

    Scan Disc You can scan through the disc while you’re playing it by doing the following: 1. Press the uu (Fast Forward) or tt (Reverse) button on the remote. 2. Press the button again to scan at a faster speed. 3.

  • Page 20: Troubleshooting

    Other Information Troubleshooting Most problems you encounter with your TV/DVD can be corrected by consulting the following troubleshooting list. TV Problems TV won’t turn on • Press the POWER button. • Make sure the TV is plugged in. • Check the wall receptacle (or extension cord) to make sure it is “live” by plugging in something else.
  • Page 21 • The channel might be blank — change channels. • If in DVD mode, press TV, then the INPUT button twice for the CABLE or AIR channels. Sound okay, picture poor • Check antenna connections. Make sure all of the cables are firmly connected to the jacks. •...
  • Page 22 Other Information The picture is distorted • The disc might be damaged. Try another disc. • If you’re using forward or reverse buttons, it is normal for some distortion to appear while scanning. A screen saver appears on the TV/DVD screen •...

  • Page 23: Recommendations And Information Concerning Discs

    Recommendations and Information Concerning Discs CD-R and CD-RW Discs This player can play most CD-R and CD-RW discs. However, depending on the type of disc and recording method used, some discs might not play, or the performance might not meet the expected quality. When playing a CD-R disc, it is completely normal for the unit to take up to 20 seconds to recognize the disc before it plays.

  • Page 24: Additional Information

    Other Information Additional Information Maintenance of Cabinet For safety reasons, when cleaning the cabinet be sure to disconnect the AC power cord from the AC outlet. • Do not use benzene, thinner, or other solvents for cleaning. • Wipe the cabinet with a soft cloth. Formation of Condensation •...

  • Page 25: Warranty

    Acts of nature, such as but not limited to lightning damage. How you get service: • For screen sizes of 26” and smaller: Take your RCA television to any Authorized RCA Television Service Center and pick up when repairs are complete. •...
  • Page 26 Other Information To identify your nearest Authorized RCA Television Service Center, ask your dealer, visit www. rca.com, look in the Yellow Pages, or call 1-800-336-1900. • Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the product is within the warranty period must be presented to obtain warranty service.
  • Page 27 This page intentionally left blank.
  • Page 28 This will only add delays in service for your product. TTE Technology, Inc. 101 West 103rd Street Indianapolis, IN 46290 ©2006 TTE Technology, Inc. RCA and associated marks are trademarks of THOMSON S.A. used under license to TTE Corporation. Printed in China TOCOM 1655837C...
