High Power Wireless N150 USB Adapter

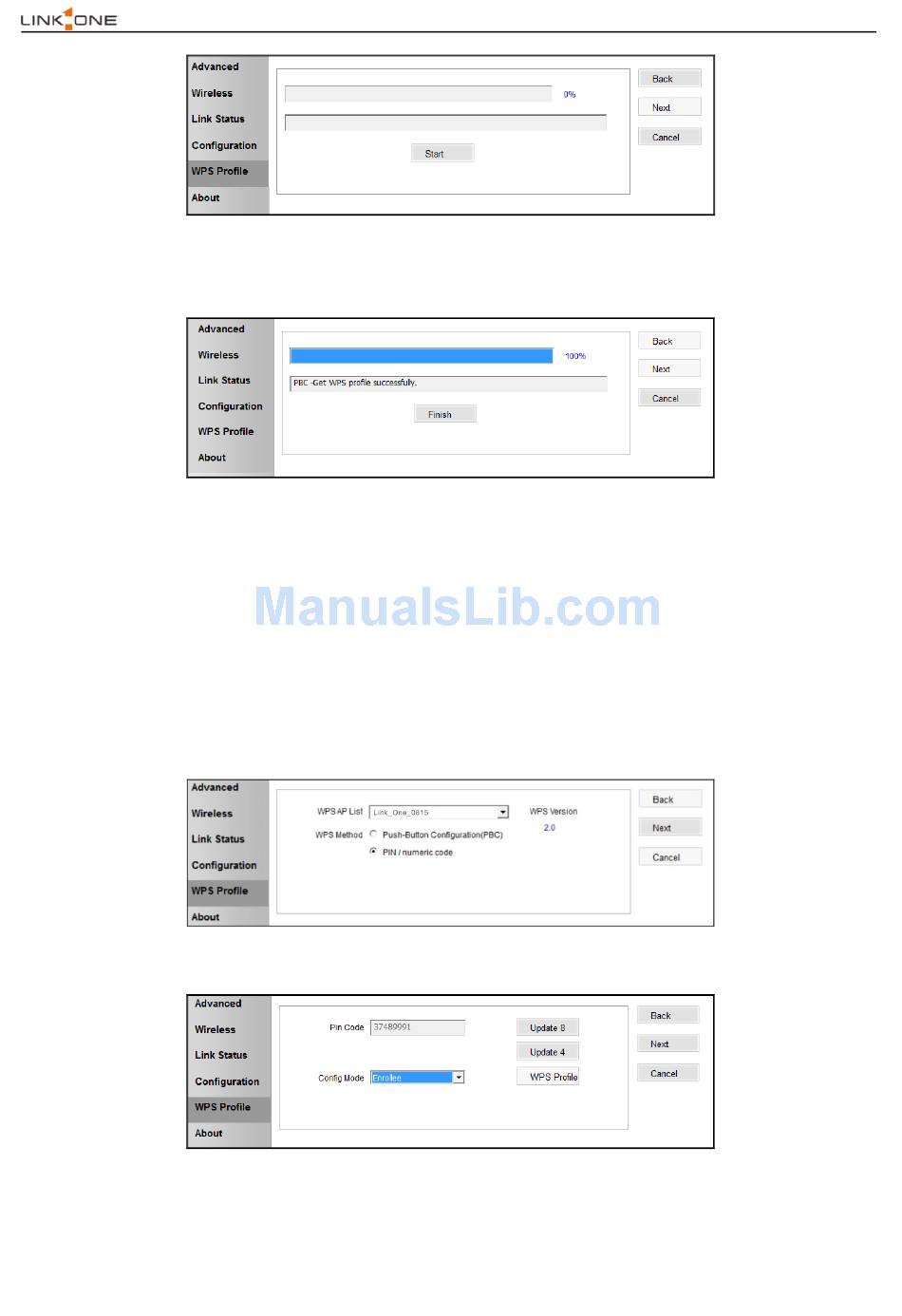

Then the following dialog box will appear，you have got WPS profile successfully. When it is configured
successfully, click Finish.
PIN/numeric code
For example: You want to configure WPS through PIN between the wireless adapter and the router whose
SSID is Link_One_0815.
Method One: Enter the wireless adapter's PIN code on the router.
1. Configure WPS-PIN/numeric code on the wireless adapter;
a. Click WPS Profile, select PIN/numeric code and click Next;
b. The following dialog box will appear. You need to note down the wireless adapter's PIN code.
2. Configure WPS-PIN setting on the router (For specific steps, please refer to the router's user guide);
30
